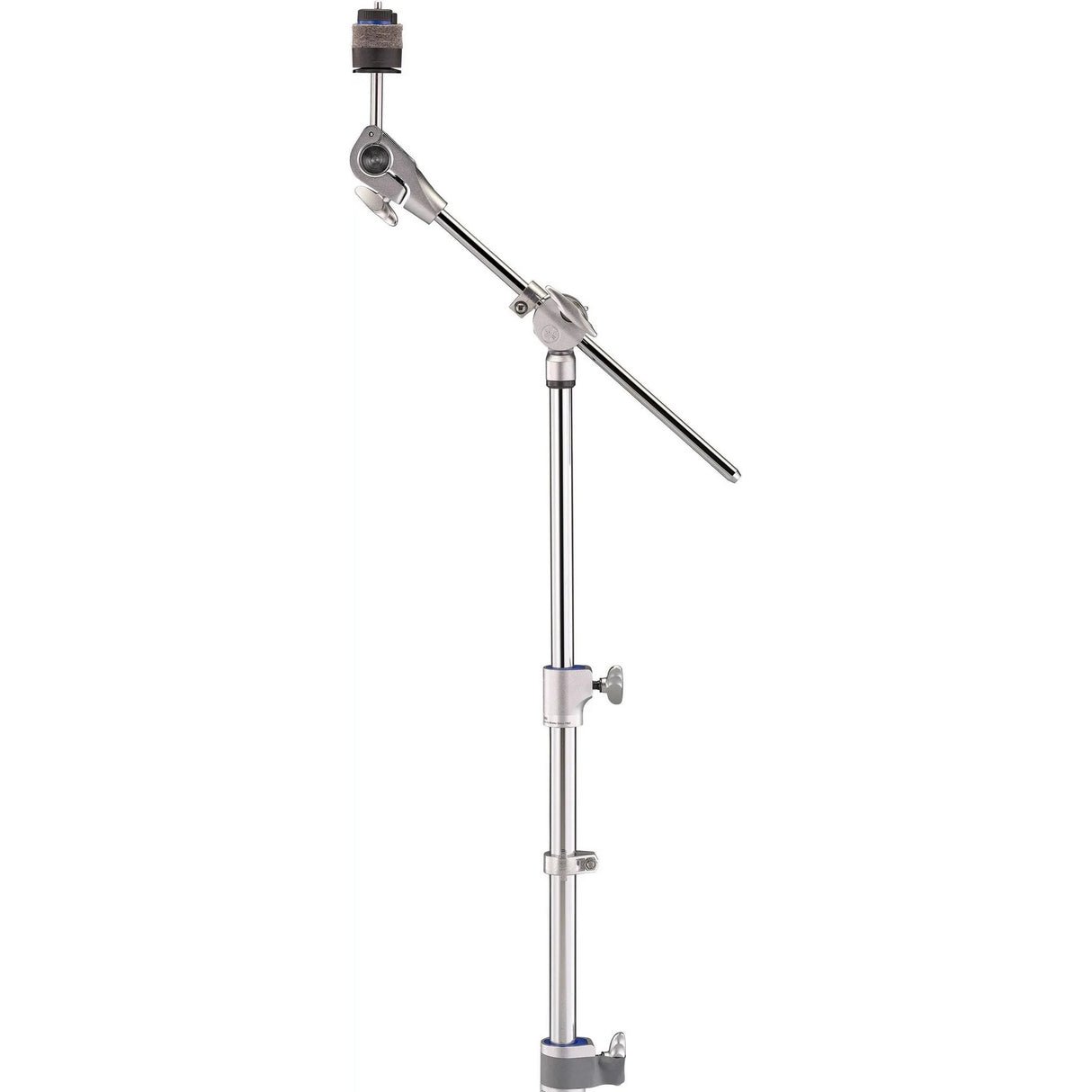

Yamaha CH8 Cymbal Holder with Long Boom Arm

Yamaha CH8 Cymbal Holder with Long Boom Arm

The Yamaha CH8 Cymbal Holder with Long Boom Arm is adjustable drum hardware for adding a cymbal to double tom stands and compatible tom holders. Its 12.6" boom arm, step-free tilter, adjustable 22.8-33.5" height range, and convertible boom design provide flexible positioning for acoustic, hybrid, studio, and live drum setups.

Designed for drummers who need an adjustable cymbal holder with long boom reach, the CH8 combines multiple positioning mechanisms in one assembly. The hinged boom tilter clamp grips the arm from three sides and incorporates a memory lock, while the boom can retract into the upper tube to create a straight cymbal holder for compact setups and transport.

A Quick Release Nut simplifies cymbal installation and removal while allowing control over cymbal movement. Yamaha's Sound Enhanced Cymbal Washer uses a foam-rubber outer layer surrounding a firmer silicone core. Drummers can use the complete washer or remove the outer section to change the cymbal's resonance characteristics. Lower and upper tube diameters measure approximately 0.9" and 0.8", respectively.

Key Features

• Long Boom Arm: Provides 12.6" of boom length for flexible cymbal placement around larger drum configurations.
• Step-Free Tilter: Allows continuous cymbal-angle adjustment without fixed gear positions.
• Hinged Boom Tilter Clamp: Uses three-sided clamping and a memory lock to maintain the selected boom position.
• Boom/Straight Conversion: Stores the boom arm inside the upper tube when a straight cymbal-holder configuration is preferred.
• Quick Release Nut: Speeds cymbal mounting and removal while retaining adjustable cymbal movement.
• Sound Enhanced Cymbal Washer: Combines foam rubber and silicone components to provide selectable cymbal support and resonance characteristics.
• Adjustable Height: Covers an approximately 22.8-33.5" range for positioning within varied drum setups.
• Tom Stand Mounting: Designed to attach to double tom stands and tom holders for expanded cymbal placement.

Technical Specifications

• Model: CH8
• Type: Boom Holder
• Quick Release Nut: Yes
• Sound Enhanced Cymbal Washer: Yes
• Tilter: Step-free tilter
• Hinged Boom Tilter Clamp: Yes
• Boom/Straight Convertible Tilter: Yes
• Lower Tube Diameter: Approximately 0.9"
• Upper Tube Diameter: Approximately 0.8"
• Boom Arm Length: Approximately 12.6"
• Available Height Range: Approximately 22.8-33.5"
• Mounting Compatibility: Double tom stands and tom holders
• Weight: Approximately 4.2 lb
