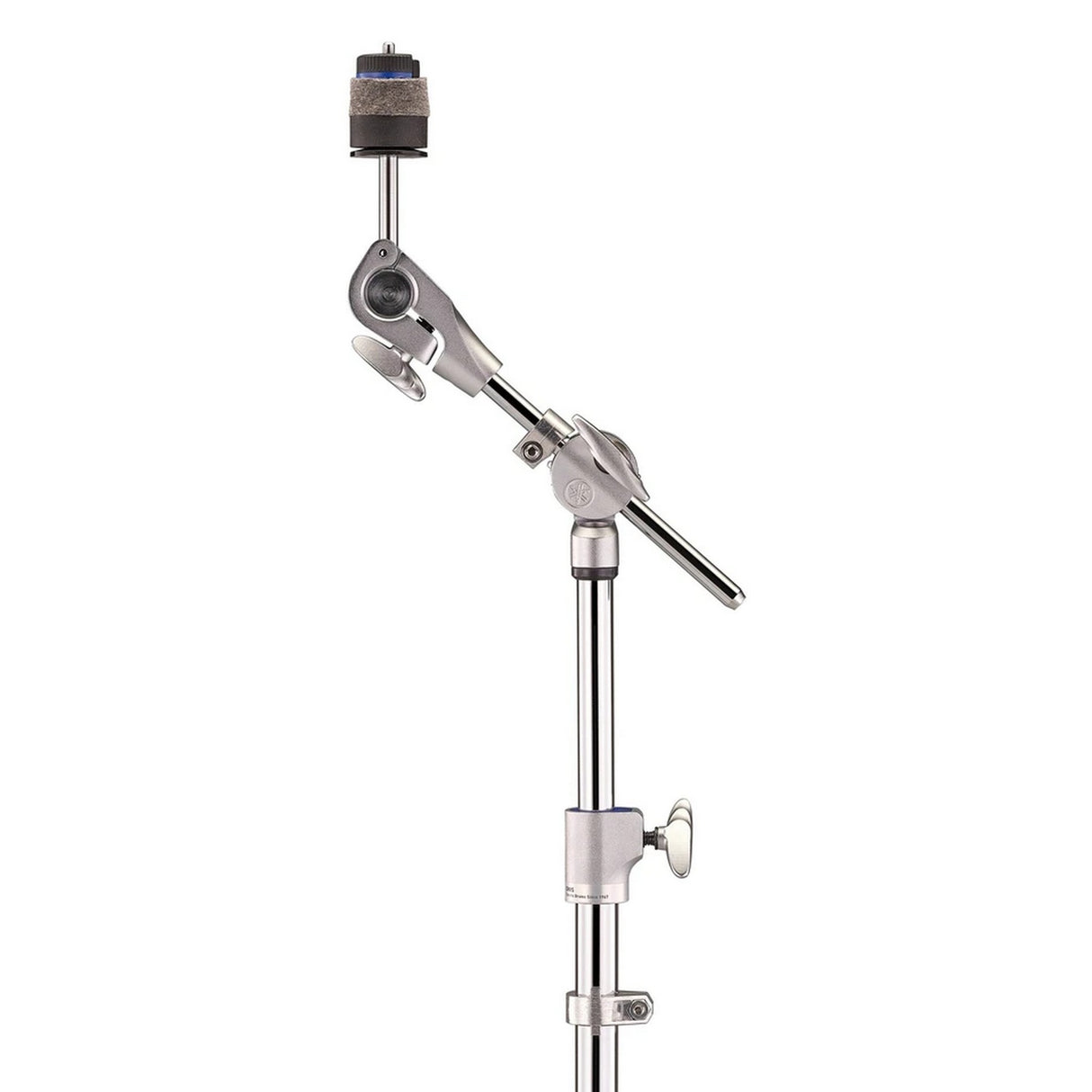

Yamaha CH8S Cymbal Holder With Short Boom Arm

Yamaha CH8S Cymbal Holder With Short Boom Arm

The Yamaha CH8S Cymbal Holder With Short Boom Arm adds compact, adjustable cymbal mounting to compatible double tom stands and tom holders. Its 6.7" boom arm, 16.9-21.7" adjustable height range, step-free tilter, and convertible boom mechanism give drummers precise placement without requiring a separate full-size cymbal stand.

Designed for close-range cymbal positioning, the CH8S combines several adjustment and setup features in one holder. A hinged boom tilter clamp secures the arm from three sides and incorporates a memory lock for repeatable placement. The boom also retracts into the upper tube, converting the assembly into a straight cymbal holder when a more compact configuration is preferred.

Yamaha equips the CH8S with a Quick Release Nut for faster cymbal mounting and removal. Its Sound Enhanced Cymbal Washer uses a soft foam-rubber outer section surrounding a firmer silicone-rubber core. The outer section can be removed to change how the cymbal is supported. Lower and upper tube diameters measure approximately 0.9" and 0.8", respectively, while the complete holder weighs approximately 3.5 lb.

Key Features

• Short Boom Arm: Provides a compact 6.7" reach for close cymbal placement around crowded drum setups.
• Step-Free Tilter: Allows continuous angle adjustment without restricting positioning to fixed gear increments.
• Hinged Boom Clamp: Secures the boom arm from three sides and incorporates a memory lock for repeatable positioning.
• Boom/Straight Conversion: Retracts the boom arm into the upper tube for use as a straight cymbal holder.
• Quick Release Nut: Simplifies cymbal installation and removal while allowing adjustment of cymbal movement.
• Sound Enhanced Cymbal Washer: Combines foam rubber and silicone components for configurable cymbal support.
• Adjustable Height: Provides a 16.9-21.7" working range for compact acoustic and hybrid drum configurations.

Technical Specifications

• Model: CH8S
• Type: Boom Holder
• Quick Release Nut: Yes
• Sound Enhanced Cymbal Washer: Yes
• Tilter: Step-free tilter
• Hinged Boom Tilter Clamp: Yes
• Boom/Straight Convertible Tilter: Yes
• Lower Tube Diameter: Approximately 0.9"
• Upper Tube Diameter: Approximately 0.8"
• Boom Arm Length: Approximately 6.7"
• Available Height Range: Approximately 16.9-21.7"
• Mounting Compatibility: Double tom stands and tom holders
• Weight: Approximately 3.5 lb
