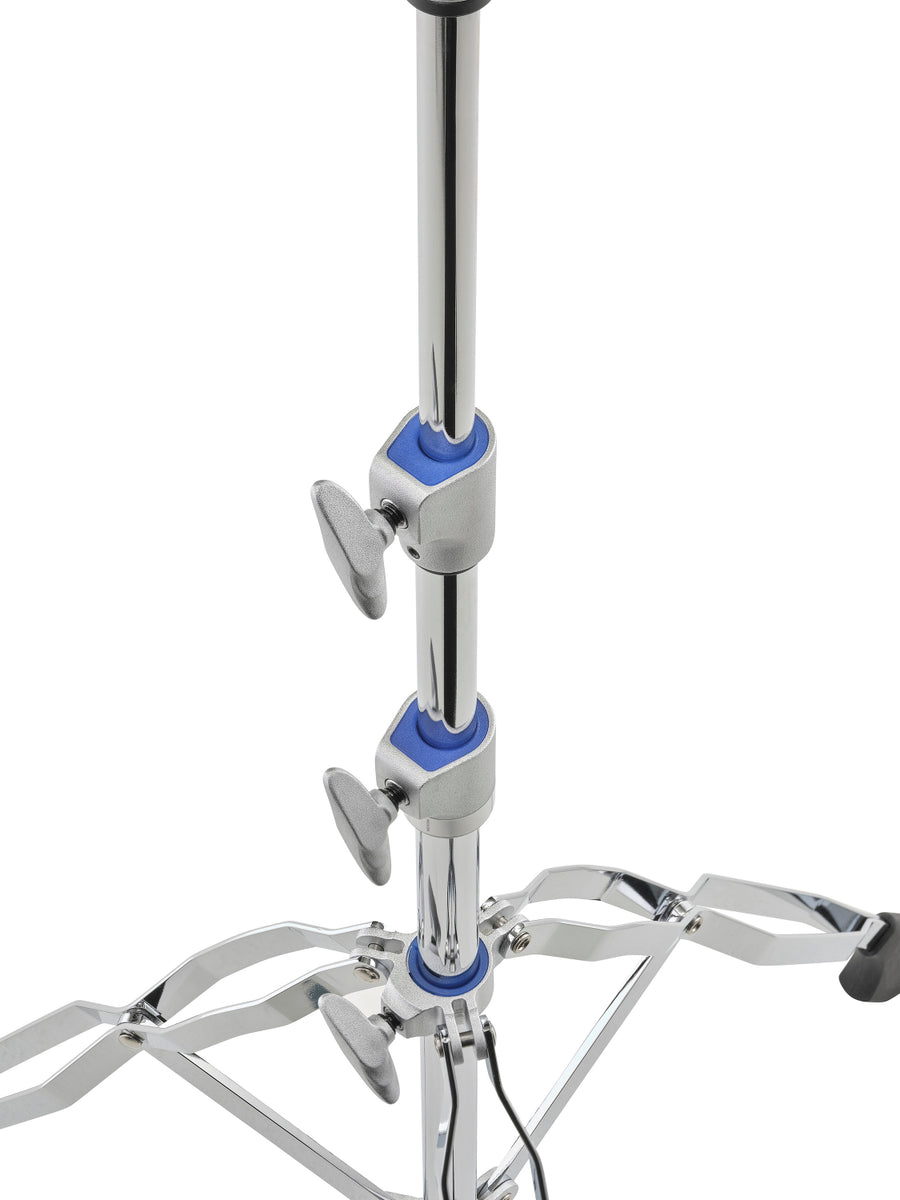

Yamaha CS6W Lightweight Double-Braced Boom Cymbal Stand

Yamaha CS6W Double-Braced Boom Cymbal Stand

The Yamaha CS6W Double-Braced Boom Cymbal Stand combines lightweight construction with added tripod stability for stage, rehearsal, and studio drum setups. Its 12.6" boom arm, step-free cymbal tilter, and boom-to-straight conversion system provide flexible positioning while maintaining a portable hardware design.

Designed for drummers who want a lightweight double-braced cymbal stand, the CS6W adjusts from approximately 31.1" to 60.2" high. The boom arm retracts into the upper tube when straight-stand operation is preferred, making the hardware more compact for transport. Double-braced legs provide additional support compared with Yamaha's single-braced CS6 configuration.

The step-free tilter permits continuous cymbal-angle adjustment without fixed gear increments. Yamaha also refines the wing hardware shape to reduce hand strain during tightening and repeated setup changes. Three telescoping tube sections measure approximately 0.9", 0.8", and 0.6" in diameter, while the complete stand weighs approximately 8.2 lb.

Key Features

• Double-Braced Legs: Provide added tripod support while retaining a lightweight hardware configuration.
• Step-Free Tilter: Allows continuous cymbal-angle adjustment without limiting placement to fixed positions.
• Convertible Boom Design: Stores the boom arm inside the upper tube for use as a straight cymbal stand.
• 12.6" Boom Arm: Provides horizontal reach for flexible cymbal positioning around acoustic and hybrid drum kits.
• Wide Height Adjustment: Covers approximately 31.1-60.2" for low, standard, and elevated cymbal setups.
• Three-Section Tubing: Uses graduated tube diameters for telescoping adjustment and compact transport.
• Refined Wing Hardware: Shaped adjustment hardware supports comfortable tightening during repeated setup changes.

Technical Specifications

• Model: CS6W
• Type: Boom Stand
• Quick Release Nut: No
• Sound Enhanced Cymbal Washer: No
• Tilter: Step-free tilter
• Hinged Boom Tilter Clamp: No
• Boom/Straight Convertible Tilter: Yes
• Leg Design: Double-braced legs
• Lower Tube Diameter: Approximately 0.9"
• Middle Tube Diameter: Approximately 0.8"
• Upper Tube Diameter: Approximately 0.6"
• Boom Arm Length: Approximately 12.6"
• Available Height Range: Approximately 31.1-60.2"
• Weight: Approximately 8.2 lb
