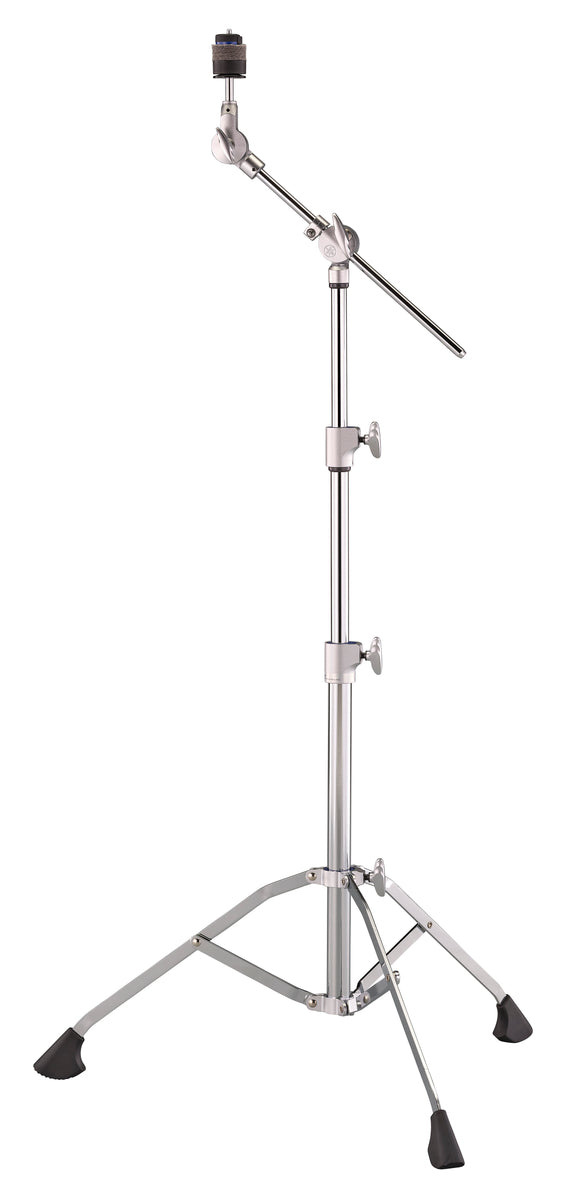

Yamaha CS7 Medium-Weight Single-Braced Boom Cymbal Stand

Yamaha CS7 Boom Cymbal Stand

The Yamaha CS7 Boom Cymbal Stand is a medium-weight, single-braced cymbal stand built for adjustable stage, studio, and rehearsal setups. A 13" boom arm, gear-equipped center tilter, Quick Release Nut, Sound Enhanced Cymbal Washer, and convertible boom mechanism combine flexible positioning with faster cymbal mounting and removal.

Drummers who need a single-braced boom cymbal stand with extended height adjustment can position the CS7 from approximately 33.5" to 63". The hinged boom tilter clamp secures the arm from three sides and incorporates a memory lock, while the boom retracts into the upper tube for straight-stand operation and more compact transport.

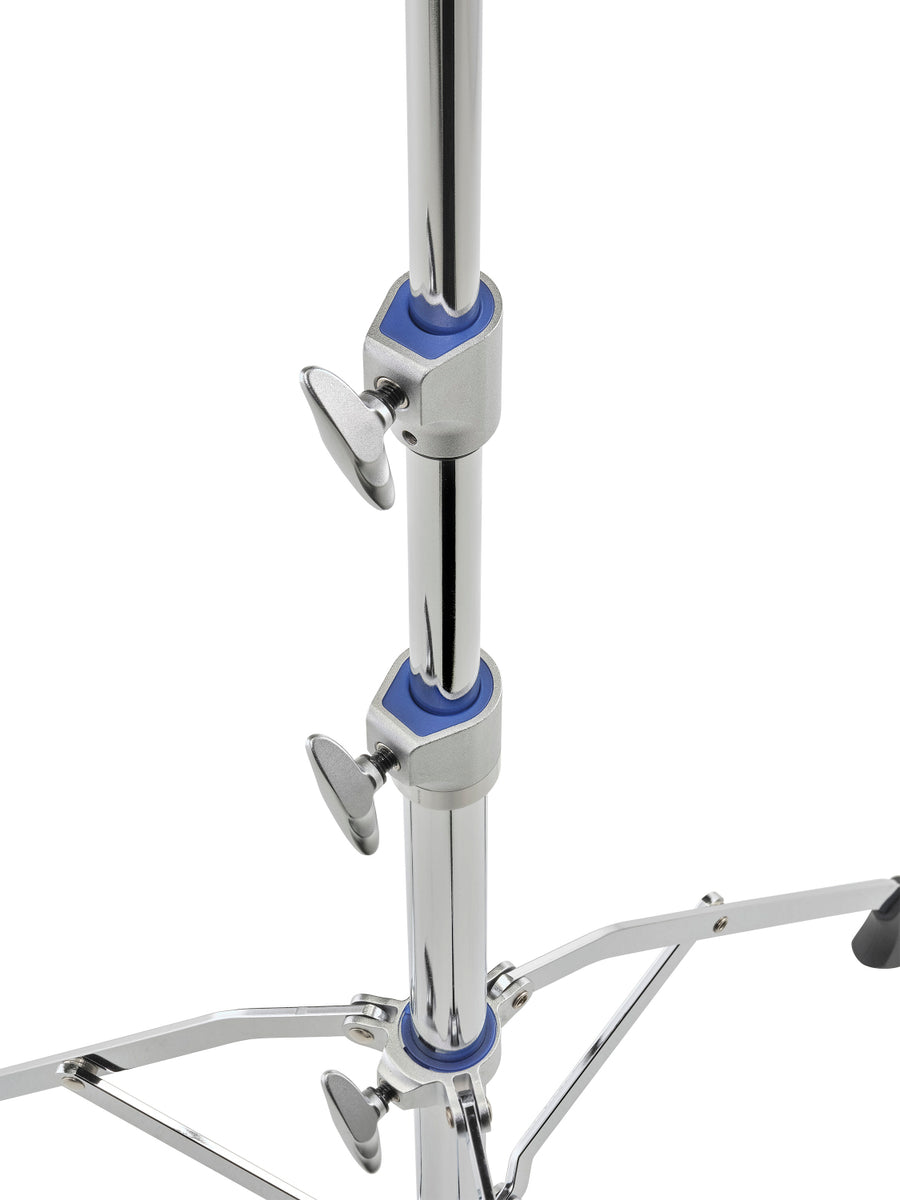

The Sound Enhanced Cymbal Washer uses a foam-rubber outer section surrounding a firmer silicone-rubber core. Yamaha allows the outer section to be removed for a different cymbal response. Three telescoping tube sections measure approximately 1.1", 0.9", and 0.8" in diameter, and the complete stand weighs approximately 8.4 lb.

Key Features

• Quick Release Nut: Allows faster cymbal installation and removal while retaining adjustable cymbal movement.
• Sound Enhanced Cymbal Washer: Combines foam rubber and silicone rubber to provide configurable cymbal support.

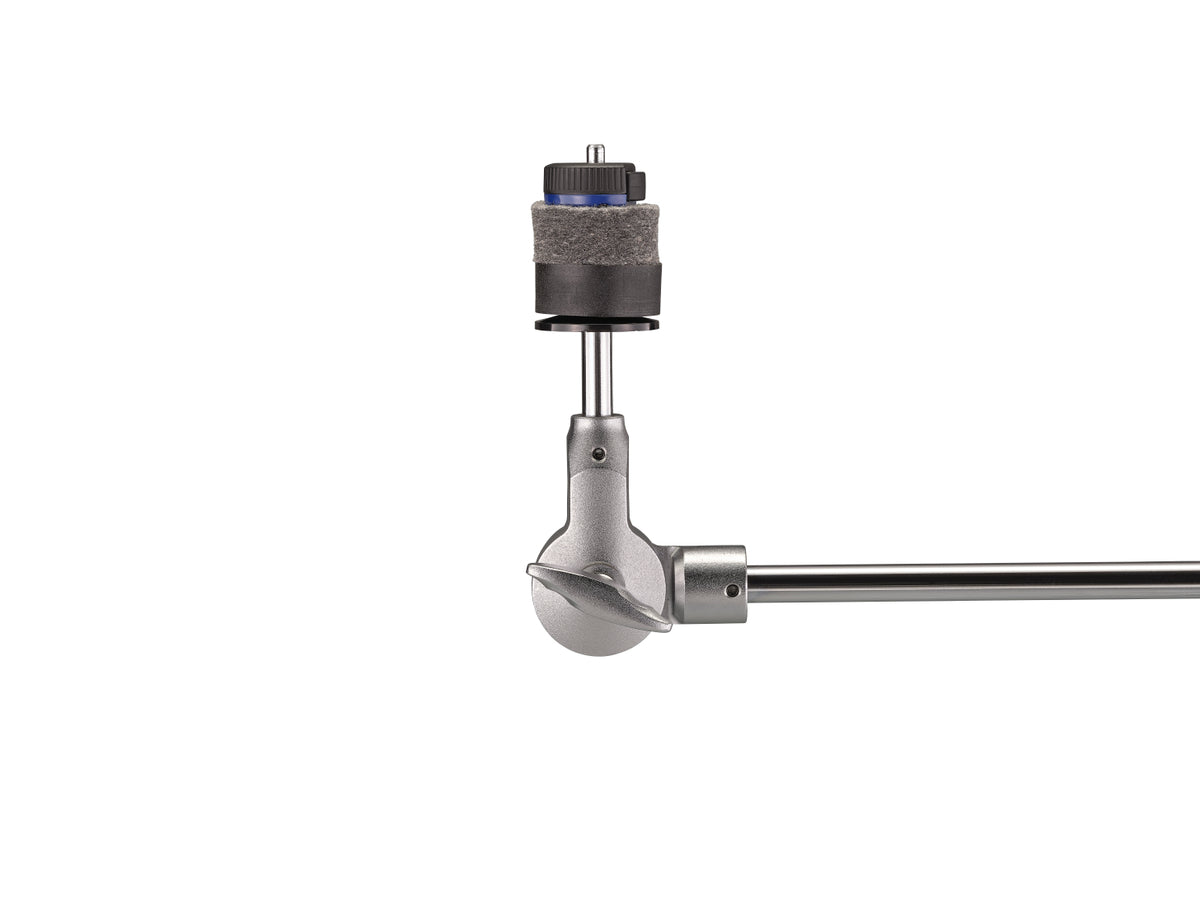

• Gear-Equipped Center Tilter: Provides indexed cymbal-angle adjustment with the cymbal supported from the center.
• Hinged Boom Tilter Clamp: Secures the boom arm from three sides and incorporates a memory lock for repeatable positioning.

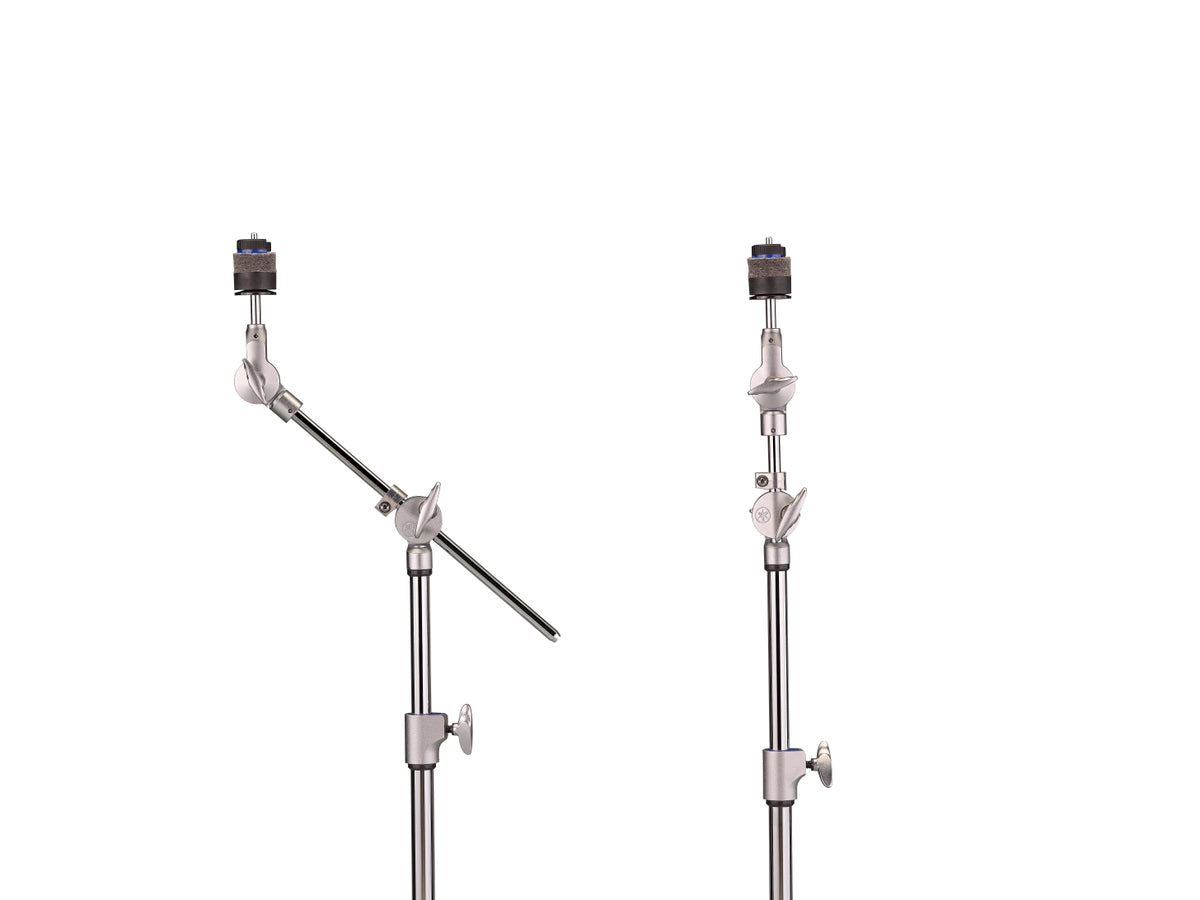

• Boom/Straight Conversion: Retracts the boom arm into the upper tube for use as a straight cymbal stand.
• Single-Braced Legs: Provide a portable tripod configuration suited to stage, rehearsal, and studio setups.
• Wide Height Adjustment: Covers approximately 33.5-63" for varied cymbal positions.

Technical Specifications

• Model: CS7
• Type: Boom Stand
• Quick Release Nut: Yes
• Sound Enhanced Cymbal Washer: Yes
• Tilter: Gear-equipped tilter
• Hinged Boom Tilter Clamp: Yes
• Boom/Straight Convertible Tilter: Yes
• Leg Design: Single-braced legs
• Lower Tube Diameter: Approximately 1.1"
• Middle Tube Diameter: Approximately 0.9"
• Upper Tube Diameter: Approximately 0.8"
• Boom Arm Length: Approximately 13"
• Available Height Range: Approximately 33.5-63"
• Weight: Approximately 8.4 lb
