Yamaha DME3 Open Architecture Dante 16 I/O Signal Processor

Yamaha DME3 Open Architecture Dante 16 I/O Signal Processor

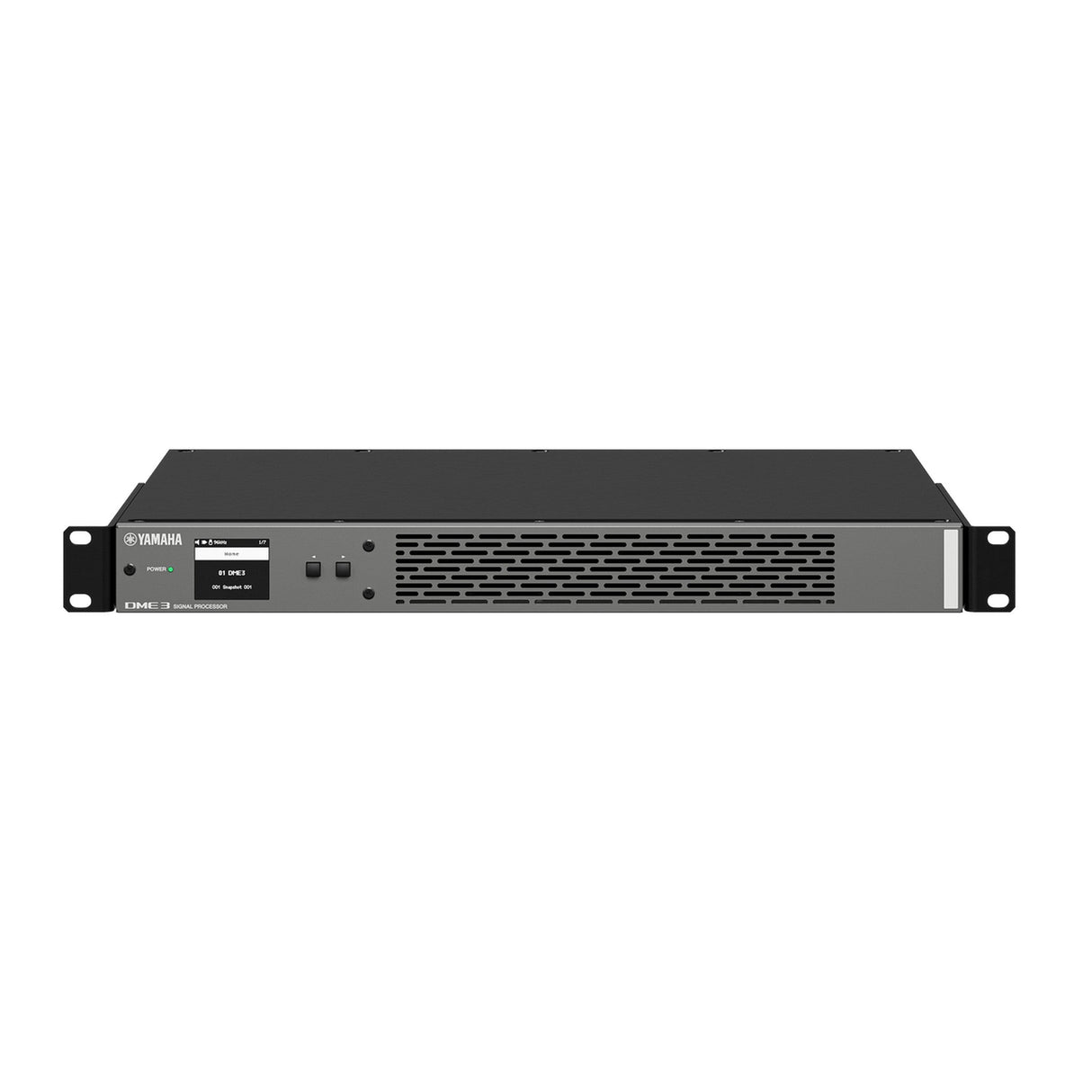

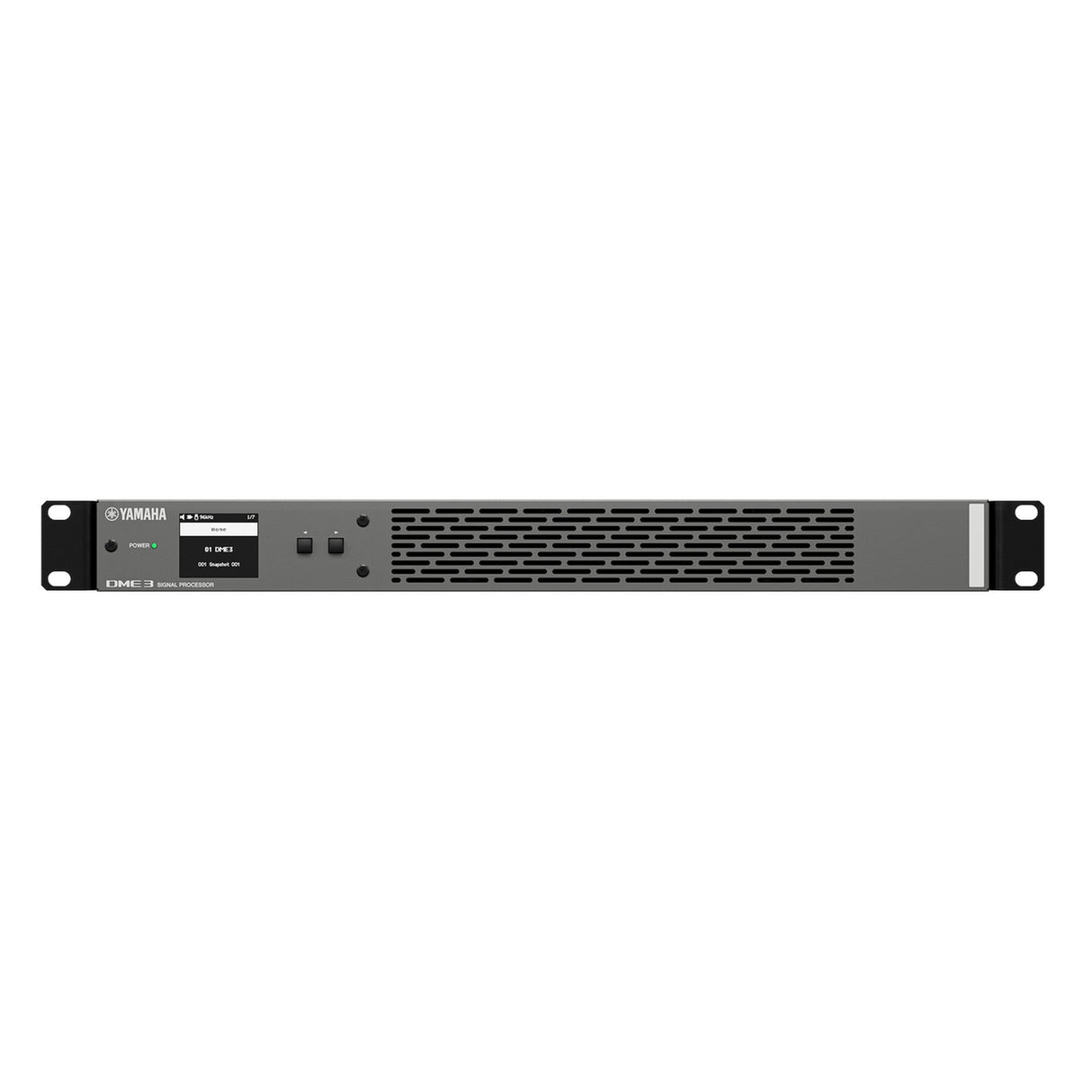

The Yamaha DME3 Signal Processor is a 1U installation DSP for commercial audio systems that need open-architecture processing, 96 kHz operation, Dante networking, USB audio, analog I/O, and GPI control. It gives integrators a compact Yamaha system core for flexible routing, reliable control, and scalable installed sound design.

Built for professional AV installations, the DME3 suits corporate rooms, hospitality spaces, classrooms, retail environments, and commercial audio systems with centralized control. For buyers looking to purchase a Yamaha DME3 processor, configure a compact Dante installation, or expand Yamaha commercial audio control, it balances core DSP power with practical I/O.

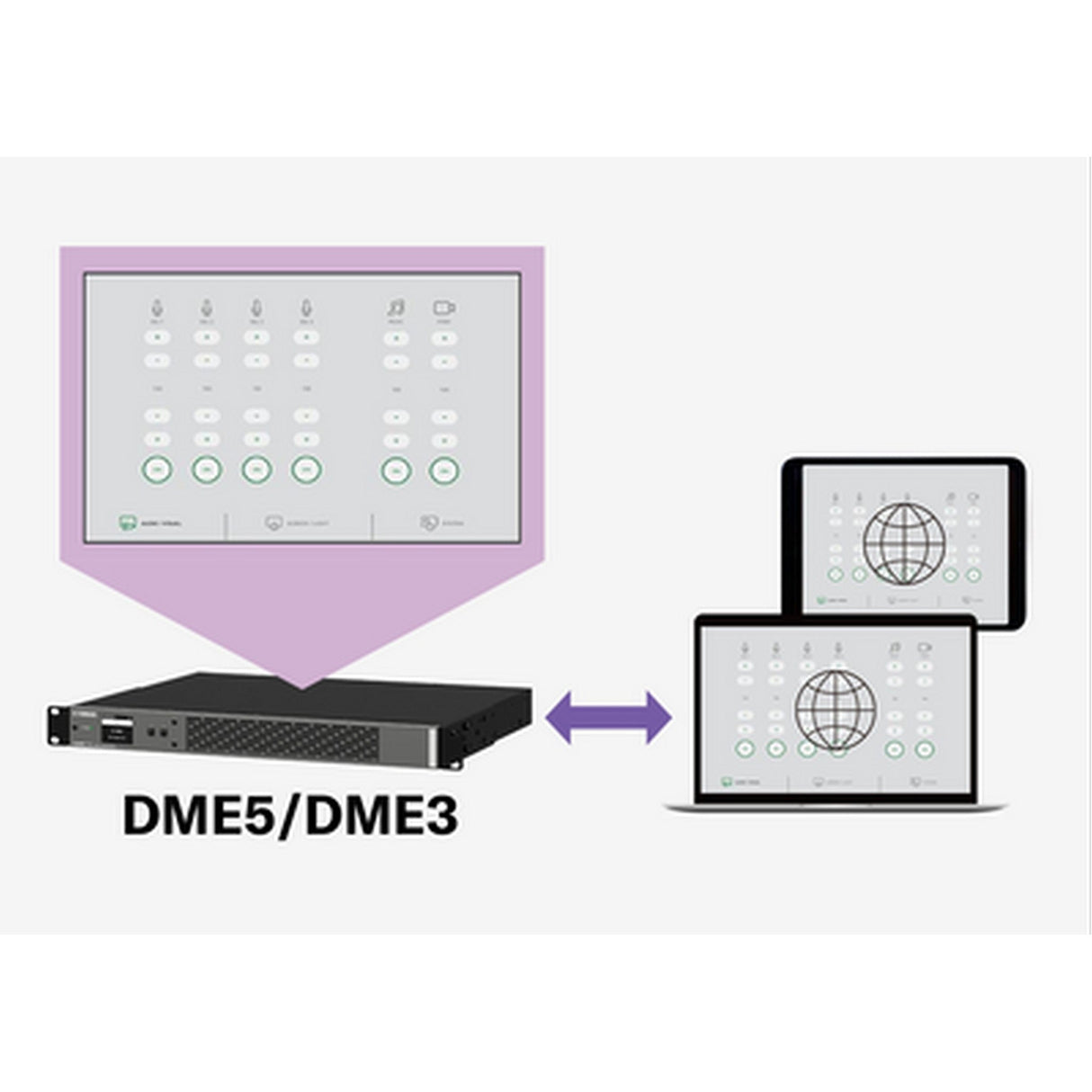

The DME3 operates with Yamaha ProVisionaire Design for system setup and ProVisionaire Control PLUS for remote monitoring and control. It also supports control options including ProVisionaire Kiosk, MCP2, MCP1, and CTL-BN1, helping installers create user-friendly interfaces for daily operation.

Key Features

• Open-Architecture DSP: Enables flexible system layouts for scalable Yamaha commercial audio installations.
• 96 kHz Processing: Supports high-quality internal audio processing for professional installed sound.
• 16x16 Dante Interface: Provides 16 Dante inputs and 16 Dante outputs for networked audio integration.
• Flexible Analog I/O: Includes 8 analog inputs, 4 analog outputs, and 4 FLEXIBLE I/O channels.
• USB-C Audio: Provides 2-in/2-out USB audio through a USB Type-C connection.
• GPI Integration: Offers 8 GPI inputs and 4 GPI outputs for external control functions.
• Yamaha Control Compatibility: Works with ProVisionaire software and Yamaha wall or kiosk control options.

Technical Specifications

• Product Type: Signal Processor
• Internal Processing: 48 kHz / 96 kHz
• Latency: Less than 3 ms, input to output at 96 kHz
• Memory: 1000 parameter sets, 10000 snapshots
• Cooling: Variable speed fan x 1, front-to-rear airflow
• NC Value: NC = 20 to 25, 1 m from front panel at 25℃ operating temperature
• Analog Inputs: 8 channels + FLEXIBLE I/O 4 channels maximum
• Analog Outputs: 4 channels + FLEXIBLE I/O 4 channels maximum
• FLEXIBLE I/O: Each channel can be set to input or output and used exclusively
• Dante Interface Channel Count: 16 IN / 16 OUT
• Dante Sampling Frequency: 48 kHz / 96 kHz
• Dante Bit Depth: 24 bit or 32 bit
• USB to Host Audio I/O: 2 IN / 2 OUT
• USB to Host Sampling Frequency: 48 kHz
• USB to Device WAV Support: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz, 16 bit, 24 bit, 32 bit
• USB to Device MP3 Support: 32 kHz / 44.1 kHz / 48 kHz; 32 kbps, 64 kbps, 128 kbps, 192 kbps, 320 kbps

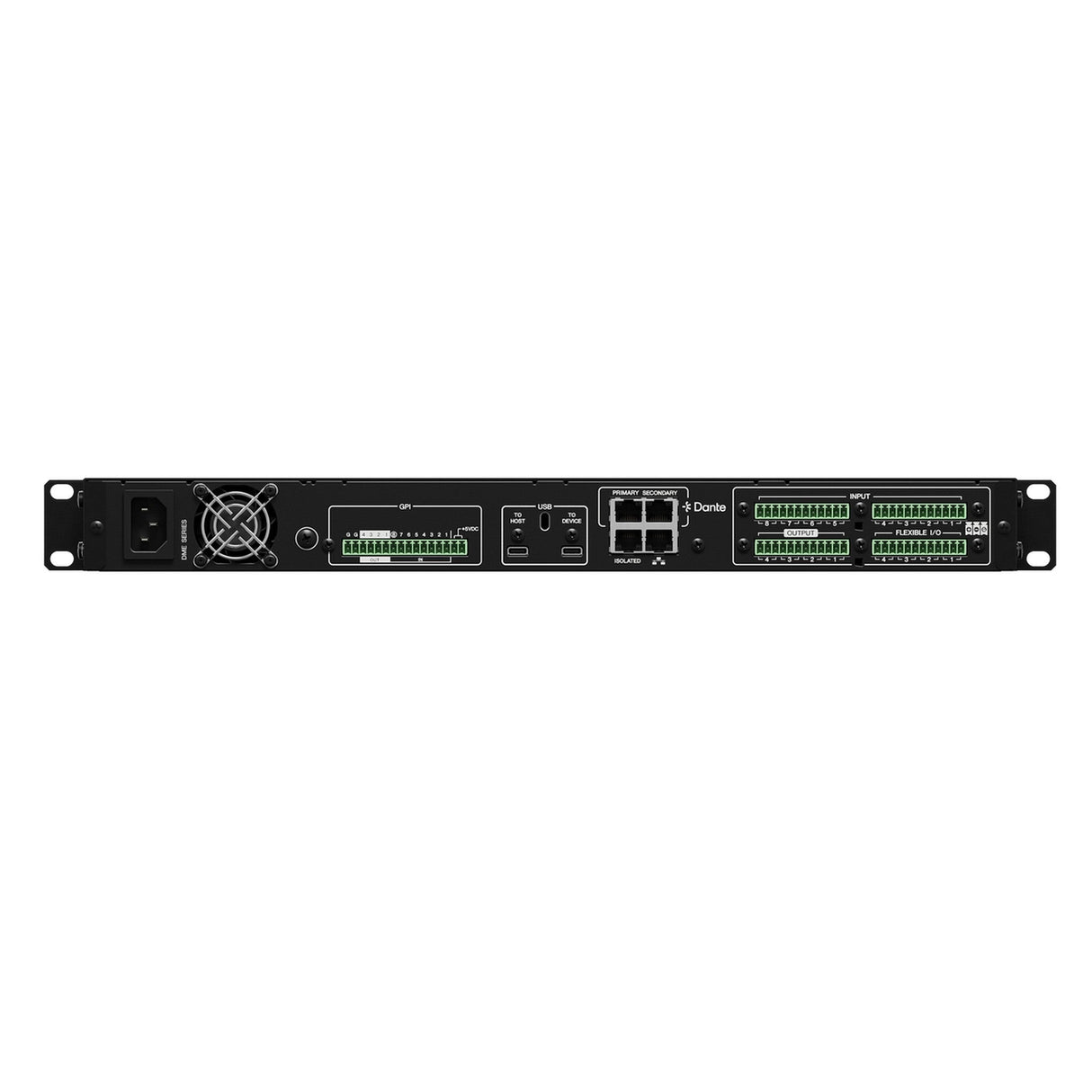

• Analog I/O Connectors: Euroblock mini 12-pin x 4, 3-pin x 16
• Dante Connectors: RJ-45 x 2, Primary / Secondary
• Network Connector: RJ-45 x 1, 1000Base-T / 100Base-TX
• Isolated Connector: RJ-45 x 1, 1000Base-T / 100Base-TX
• USB TO HOST Connector: USB Type-C, USB 2.0
• USB TO DEVICE Connector: USB Type-C, USB 2.0
• GPI Connectors: Euroblock mini 16-pin x 1
• AC Connector: AC inlet x 1
• Power Requirements: 100-240 V, 50/60 Hz
• Power Consumption: 60 W
• Heat Dissipation: 52 kcal/h
• Dimensions: 18.9" x 1.8" x 14.2", 1U
• Weight: 8.8 lbs
• Finish: Front panel approximate Munsell value N5
• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -20℃ to 60℃

What's Included

• Yamaha DME3 Signal Processor
• Owner's Manual x 1
• AC Power Cord x 1
• Euroblock Plug Mini 16-Pin x 1
• Euroblock Plug Mini 3-Pin x 16
• Cable Hook for USB Type-C x 1
• Cable Ties x 18
