Yamaha DME5 Open Architecture Dante 64 I/O Signal Processor

Yamaha DME5 Open Architecture Dante 64 I/O Signal Processor

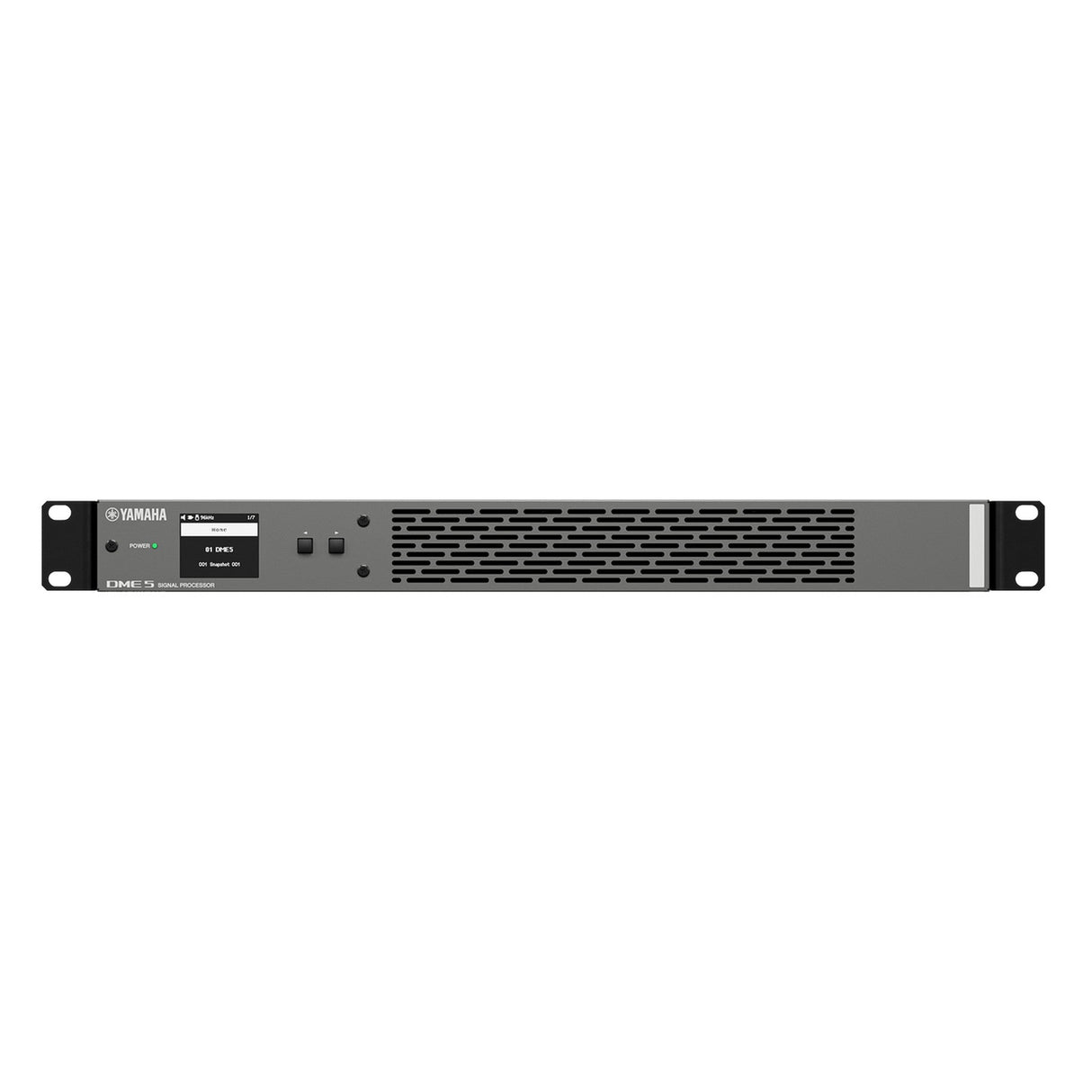

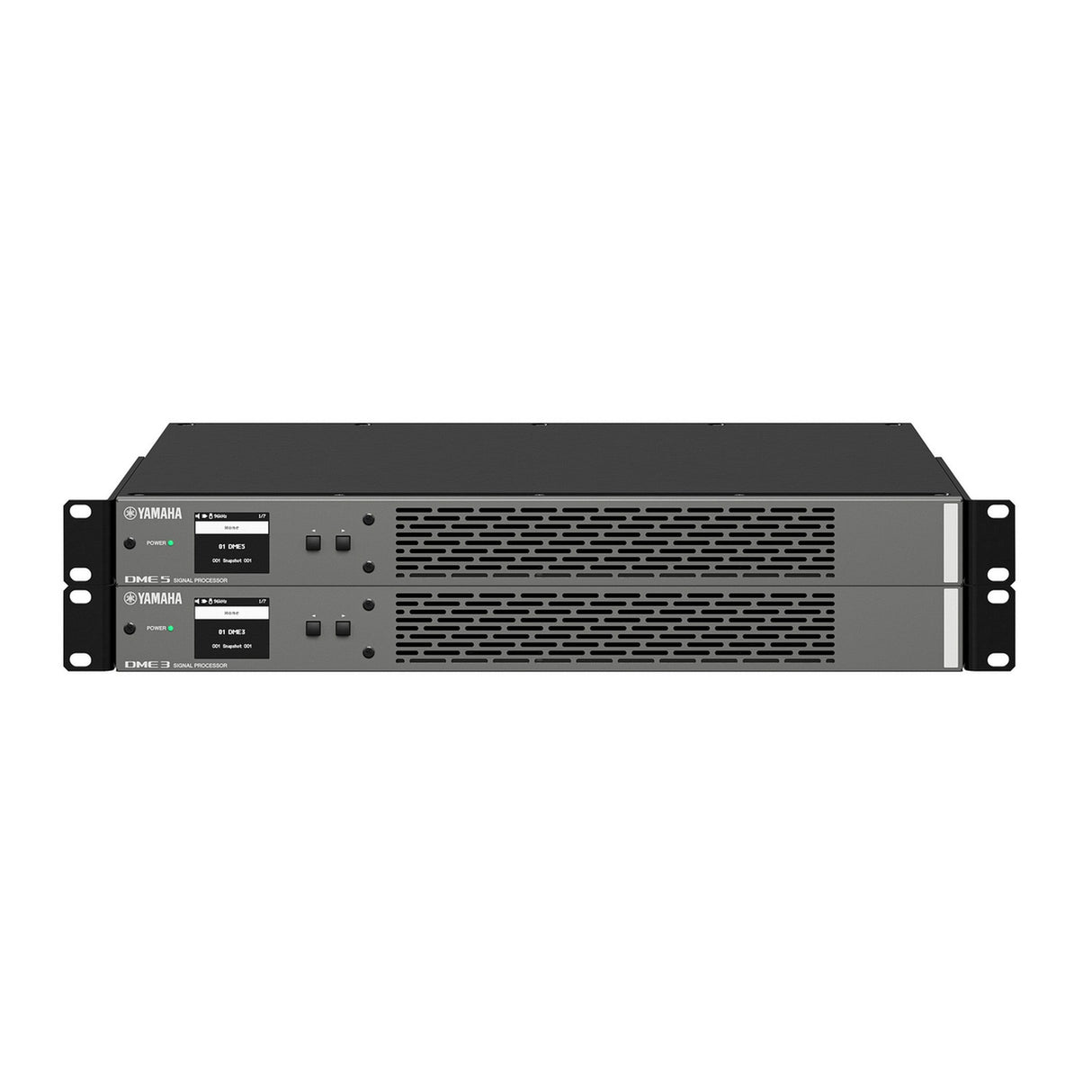

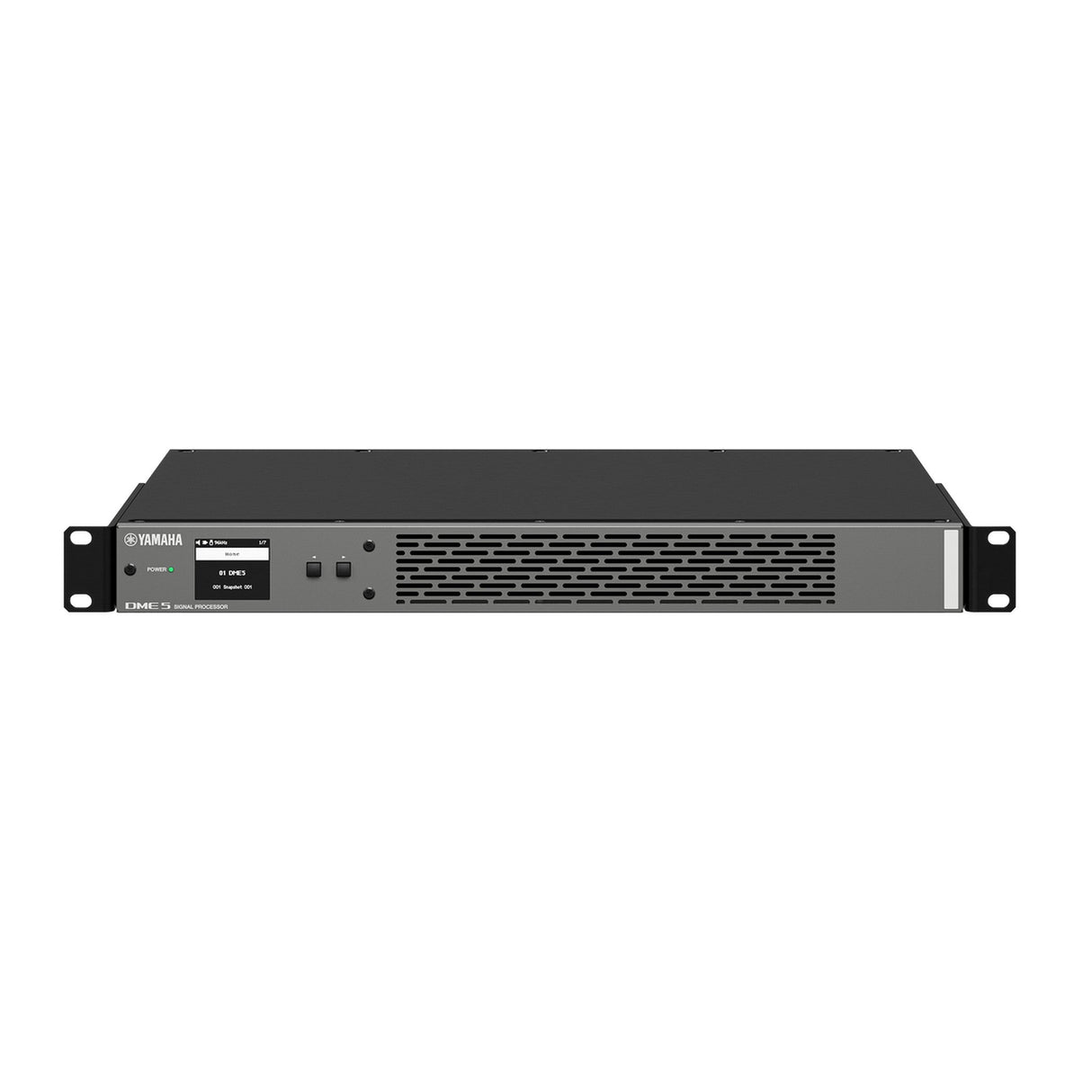

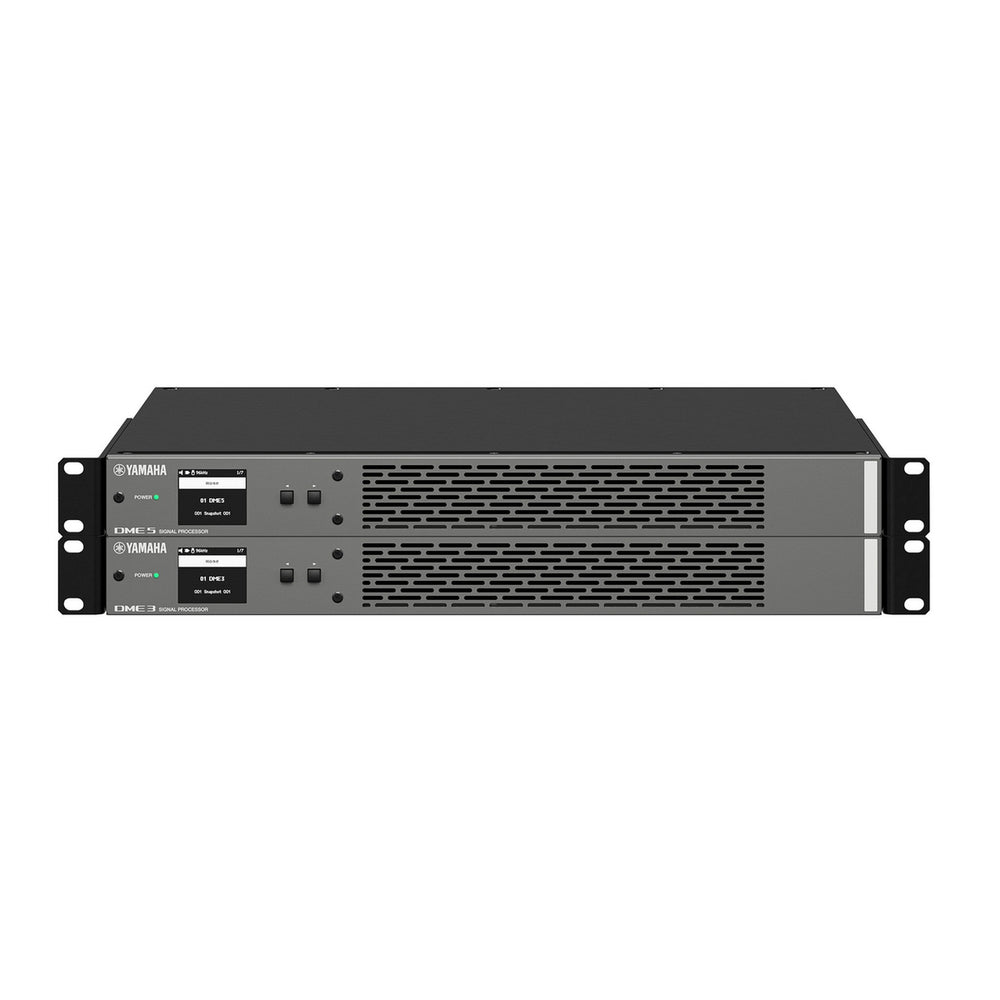

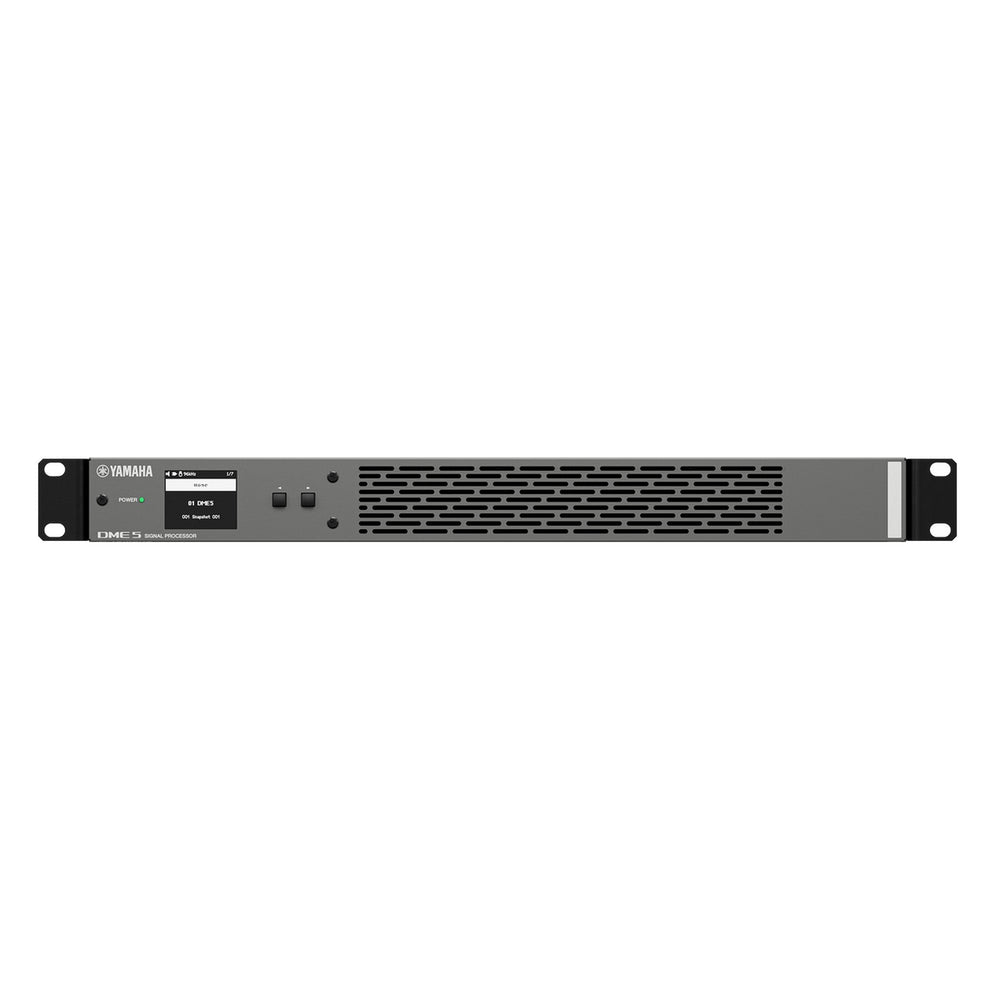

The Yamaha DME5 Signal Processor is a 1U installation DSP for scalable commercial audio systems, combining open-architecture processing, 96 kHz operation, Dante networking, USB audio, analog I/O, and GPI control. It serves as the system core for venues that need flexible routing, centralized control, and reliable Yamaha ecosystem integration.

Designed for professional installed sound, the DME5 fits corporate spaces, hospitality venues, education facilities, retail environments, and multi-zone commercial audio systems. For buyers looking to purchase a Yamaha DME5 processor, build a Dante-enabled installation system, or expand Yamaha commercial audio control, it provides generous network audio capacity and adaptable I/O in a compact rackmount format.

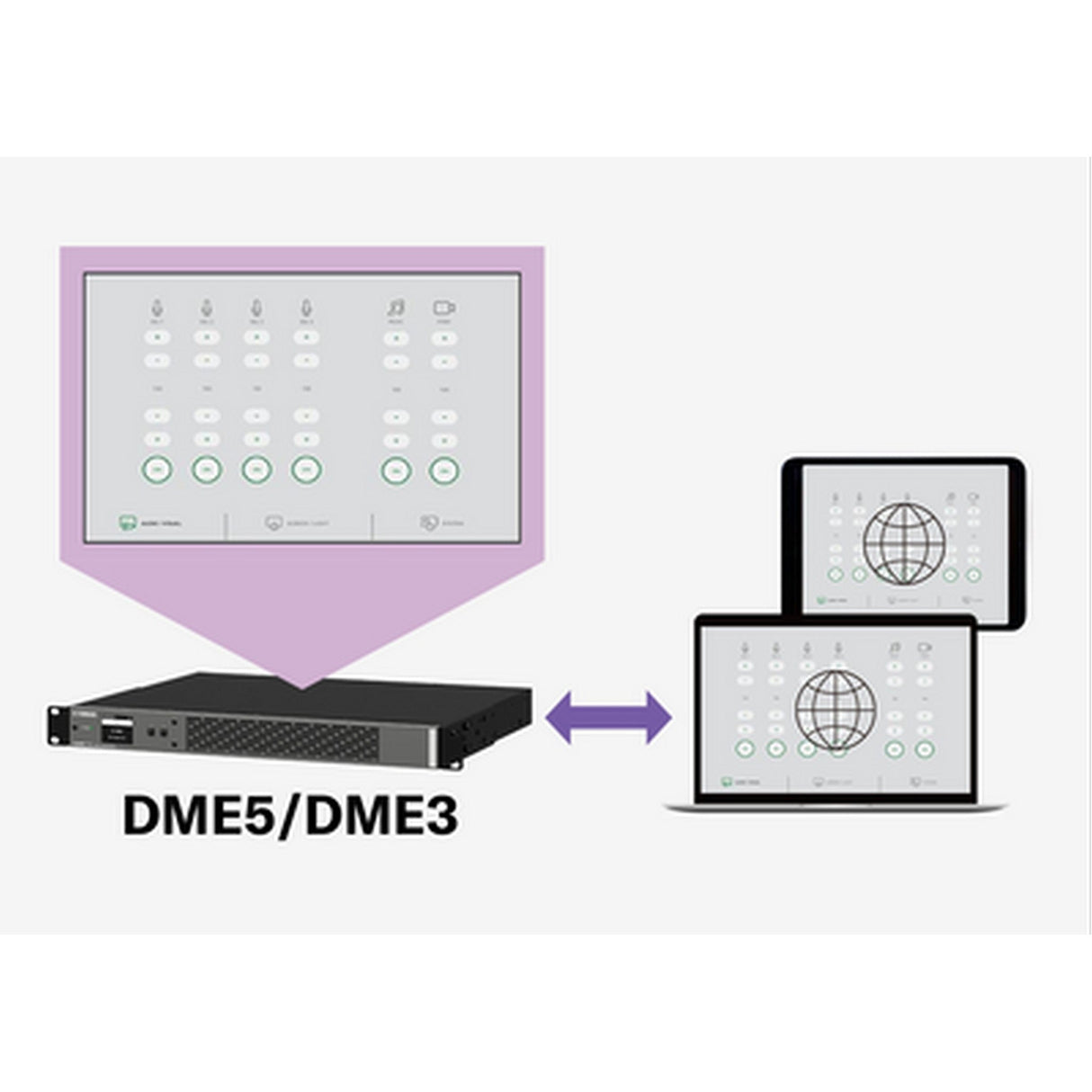

The DME5 works with Yamaha ProVisionaire Design for graphical system configuration and ProVisionaire Control PLUS for unified remote control and monitoring. It also supports Yamaha control options including ProVisionaire Kiosk, MCP2, MCP1, and CTL-BN1, helping integrators deploy tailored user interfaces for daily operation.

Key Features

• Open-Architecture DSP: Supports flexible audio system design for installations that need scalable routing and control.
• 96 kHz Processing: Delivers high-resolution internal processing for professional commercial audio applications.
• 64x64 Dante Interface: Provides 64 Dante inputs and 64 Dante outputs for networked audio systems.
• Flexible Analog I/O: Includes 8 analog inputs, 4 analog outputs, and 4 FLEXIBLE I/O channels.
• USB-C Audio: Supports 2-in/2-out USB audio via USB Type-C connection.
• GPI Control: Provides 16 GPI inputs and 8 GPI outputs for external control integration.
• Yamaha Software Ecosystem: Works with ProVisionaire Design and ProVisionaire Control PLUS for configuration, monitoring, and control.

Technical Specifications

• Product Type: Signal Processor
• Internal Processing: 48 kHz / 96 kHz
• Latency: Less than 3 ms, input to output at 96 kHz
• Memory: 1000 parameter sets, 10000 snapshots
• Cooling: Variable speed fan x 1, front-to-rear airflow
• NC Value: NC = 20 to 25, 1 m from front panel at 25℃ operating temperature
• Analog Inputs: 8 channels + FLEXIBLE I/O 4 channels maximum
• Analog Outputs: 4 channels + FLEXIBLE I/O 4 channels maximum
• FLEXIBLE I/O: Each channel can be set to input or output and used exclusively
• Dante Interface Channel Count: 64 IN / 64 OUT
• Dante Sampling Frequency: 48 kHz / 96 kHz
• Dante Bit Depth: 24 bit or 32 bit
• USB to Host Audio I/O: 2 IN / 2 OUT
• USB to Host Sampling Frequency: 48 kHz
• USB to Device WAV Support: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz, 16 bit, 24 bit, 32 bit
• USB to Device MP3 Support: 32 kHz / 44.1 kHz / 48 kHz; 32 kbps, 64 kbps, 128 kbps, 192 kbps, 320 kbps

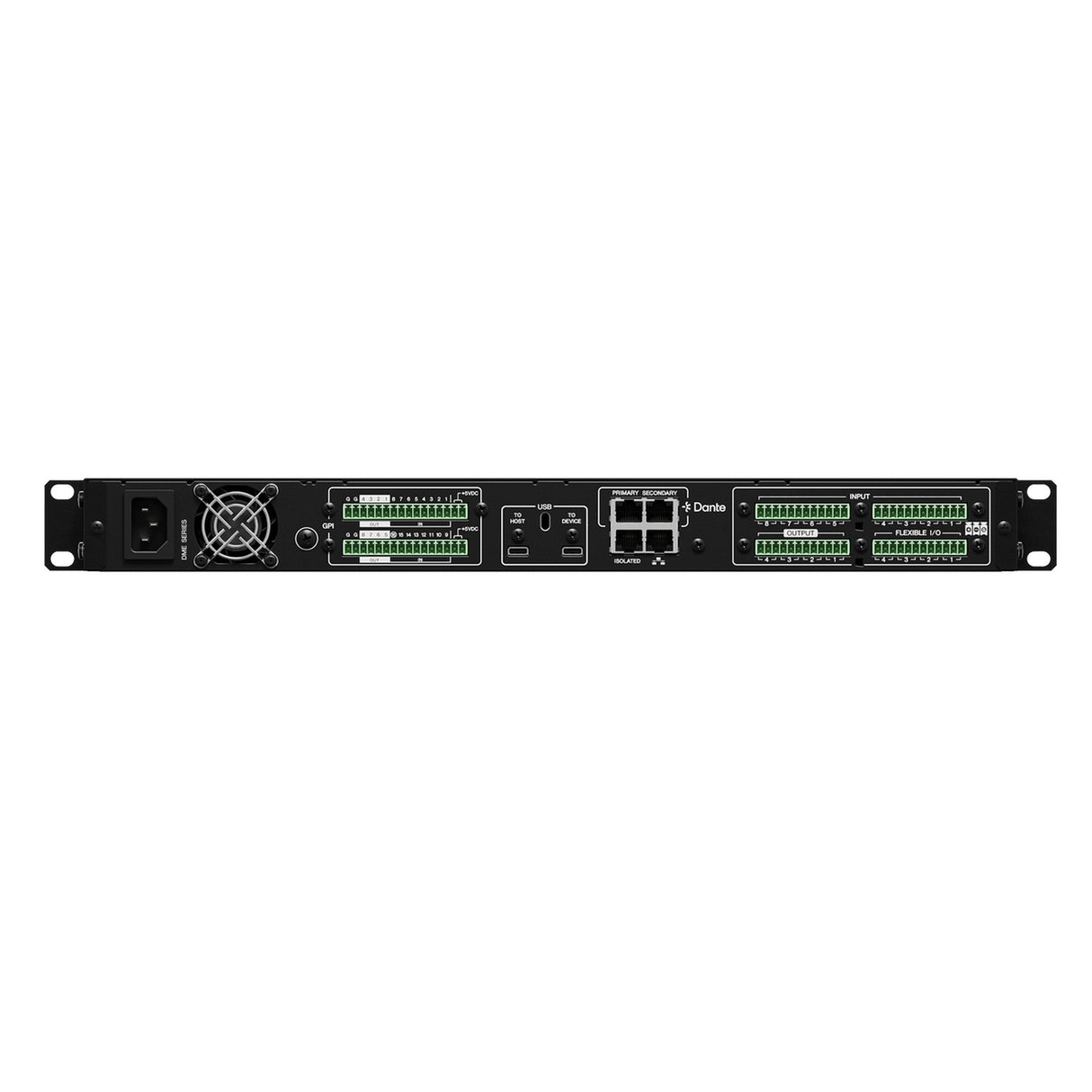

• Analog I/O Connectors: Euroblock mini 12-pin x 4, 3-pin x 16
• Dante Connectors: RJ-45 x 2, Primary / Secondary
• Network Connector: RJ-45 x 1, 1000Base-T / 100Base-TX
• Isolated Connector: RJ-45 x 1, 1000Base-T / 100Base-TX
• USB TO HOST Connector: USB Type-C, USB 2.0
• USB TO DEVICE Connector: USB Type-C, USB 2.0
• GPI Connectors: Euroblock mini 16-pin x 2
• AC Connector: AC inlet x 1
• Power Requirements: 100-240 V, 50/60 Hz
• Power Consumption: 60 W
• Heat Dissipation: 52 kcal/h
• Dimensions: 18.9" x 1.8" x 14.2", 1U
• Weight: 8.8 lbs
• Finish: Front panel approximate Munsell value N5
• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -20℃ to 60℃

What's Included

• Yamaha DME5 Signal Processor
• Owner's Manual x 1
• AC Power Cord x 1
• Euroblock Plug Mini 16-Pin x 2
• Euroblock Plug Mini 3-Pin x 16
• Cable Hook for USB Type-C x 1
• Cable Ties x 18
