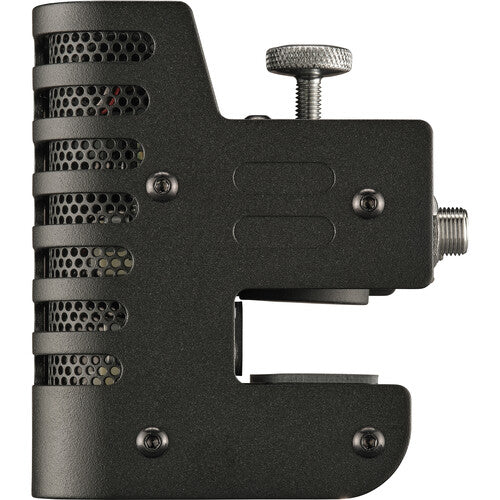

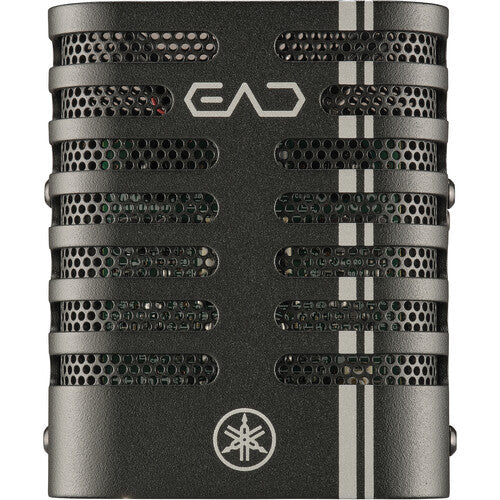

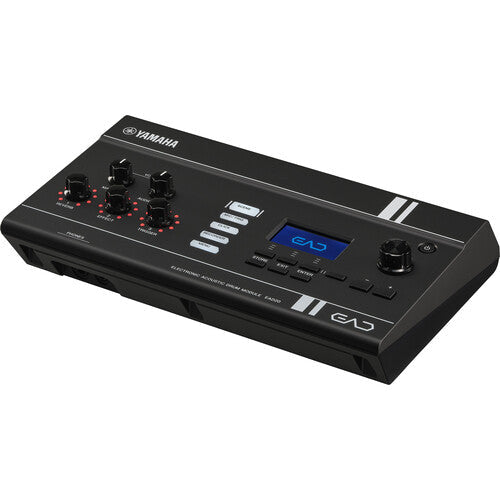

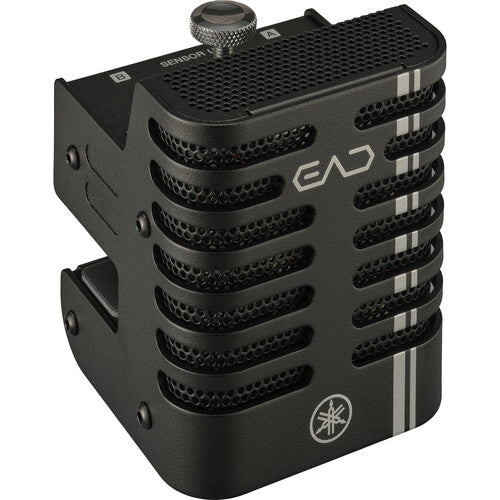

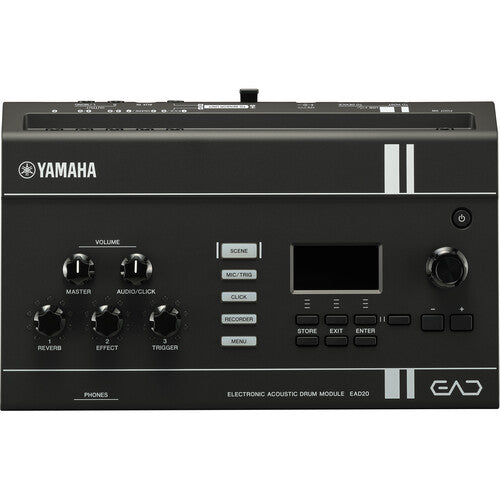

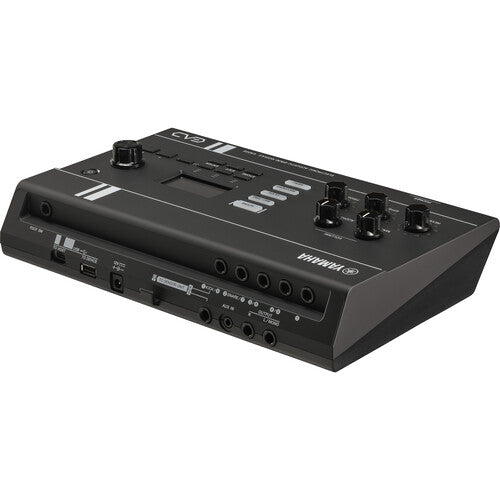

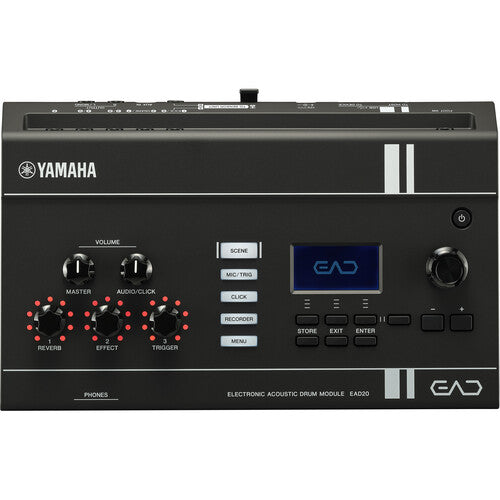

The Yamaha EAD20 Electronic Acoustic Drum Module combines acoustic drum capture, electronic sounds, effects, triggering, sampling, and multichannel USB audio in one expandable system. Its included bass-drum-mounted sensor uses a matched pair of condenser microphones in an XY stereo arrangement, allowing drummers to capture an entire acoustic kit without a conventional multi-microphone setup.

Designed for recording, practice, live performance, streaming, and hybrid drumming, the EAD20 pairs natural acoustic drum sound with an AWM2 tone generator containing 2,203 voices. Drummers can layer electronic sounds with acoustic hits, connect additional pads or triggers, create samples, build loops, and save customized scenes. Automatic microphone gain and crosstalk setup functions also simplify configuration for changing drum setups.

The EAD20 supports both stereo and multichannel computer recording through its USB audio interface, including 8-input/10-output operation at 24-bit/44.1 kHz. Yamaha EAD Touch and Rec'n'Share app compatibility extends control, recording, editing, and performance-video workflows to compatible mobile devices. USB flash drive support provides external storage for expanded production and performance use.

Key Features

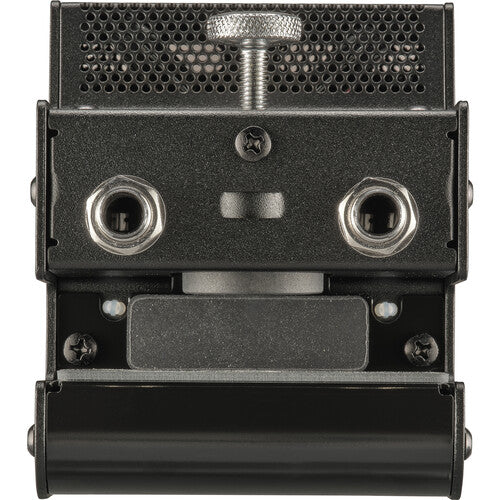

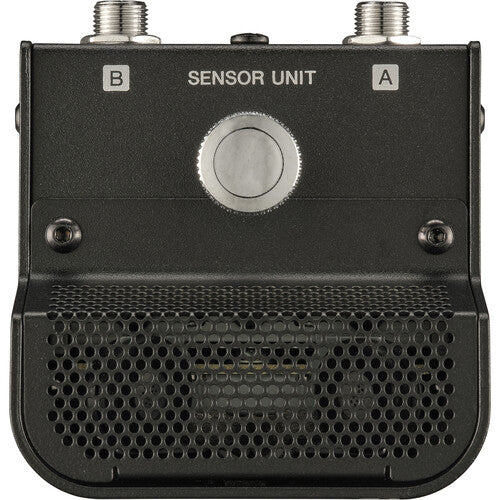

• Stereo Drum Capture: Included bass-drum-mounted sensor uses matched condenser microphones in an XY configuration to capture the acoustic kit.
• Hybrid Sound Engine: AWM2 synthesis provides 2,203 voices for layering electronic sounds with acoustic drums.
• Expandable Triggering: Supports as many as nine connected pads when configured with Y-cables.
• Integrated Processing: Provides reverb, insert effects, compression, EQ, and master processing tailored for drum performance.
• USB Audio Interface: Supports stereo operation up to 24-bit/96 kHz and 8-in/10-out multichannel audio at 24-bit/44.1 kHz.
• Creative Recording Tools: Built-in recorder, looper, sampling functions, and user-sample loading support practice and production workflows.
• Automatic Setup: Gain Auto Setup and Crosstalk Auto Setup help streamline microphone and trigger configuration.
• Mobile App Support: Works with Yamaha EAD Touch and Rec'n'Share for sound adjustment, recording, editing, and content creation.

Technical Specifications

• Tone Generator: AWM2
• Maximum Polyphony: 256 notes
• Parts: 10
• Number of Voices: 2,203
• Preset Scenes: 50 or more
• User Scenes: 200
• Mic EQ: 7
• Mic Transient Compressor: 10
• Mic Insertion Effect 1: 252
• Mic Insertion Effect 2: 252
• Instrument EQ: 13
• Instrument Transient Compressor: 21
• Instrument Insertion Effect: 252
• Reverb: 137
• FX1: 247
• FX2: 247
• Master FX: 252
• Master Compressor: 33
• Master EQ: 5 bands
• Click EQ: 1
• Audio EQ: Recorder, Looper, Aux In, USB Audio
• Phones EQ: 13, 4-band
• Maximum Loadable Sample Time: Approximately 50 minutes mono or 25 minutes stereo at 44.1 kHz, 16-bit
• Functions: Mic Talk, Gain Auto Setup, Crosstalk Auto Setup, Voice Function
• Recorder Functions: Dual playback, Looper, Sampling
• Maximum Connected Pads: 9 when using Y-cables

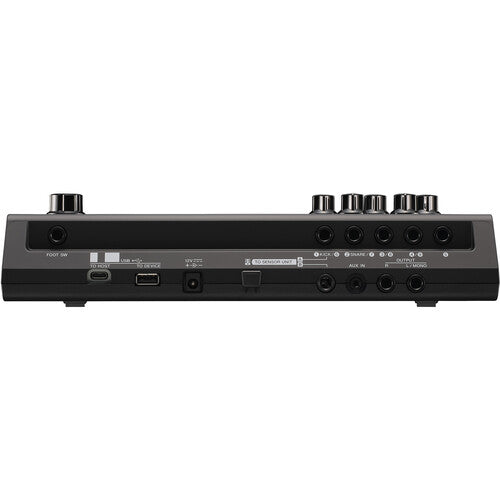

• Footswitch Connection: Standard stereo phone jack
• Footswitch Functions: Hi-hat controller, expression, on/off, increment/decrement
• Mic/Line Input: EAD20 sensor unit
• Main Outputs: OUTPUT L/MONO and R, standard TS phone jacks, unbalanced
• Headphone Outputs: 1 x standard stereo phone jack and 1 x 1/8" stereo mini jack
• USB TO HOST Audio: 2-in/2-out, 24-bit at 44.1/48/96 kHz synchronous; 8-in/10-out, 24-bit at 44.1 kHz asynchronous
• USB TO DEVICE: USB Trigger Link with USB MIDI Host function
• External Memory: USB flash drive supported
• Compatible Apps: Yamaha EAD Touch and Rec'n'Share
• Display: LCD
• Power: 12 VDC via AC adapter
• Color: Black
• Main Unit Dimensions: 11.8 x 2.8 x 7.5" (W x H x D)
• Main Unit Weight: 3.1 lb
