Yamaha MCP2 Single-Gang Wall-Mount Controller - Black
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

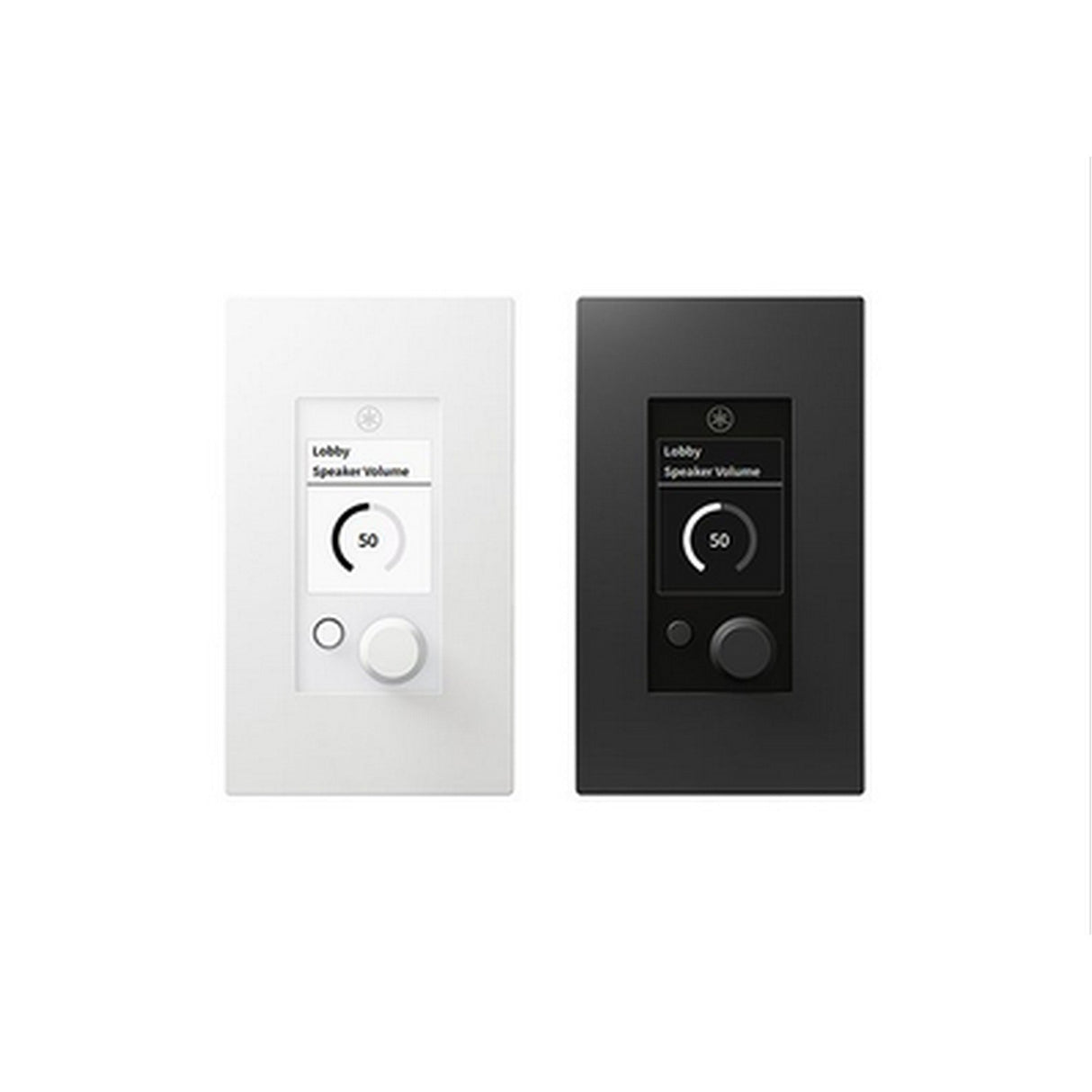

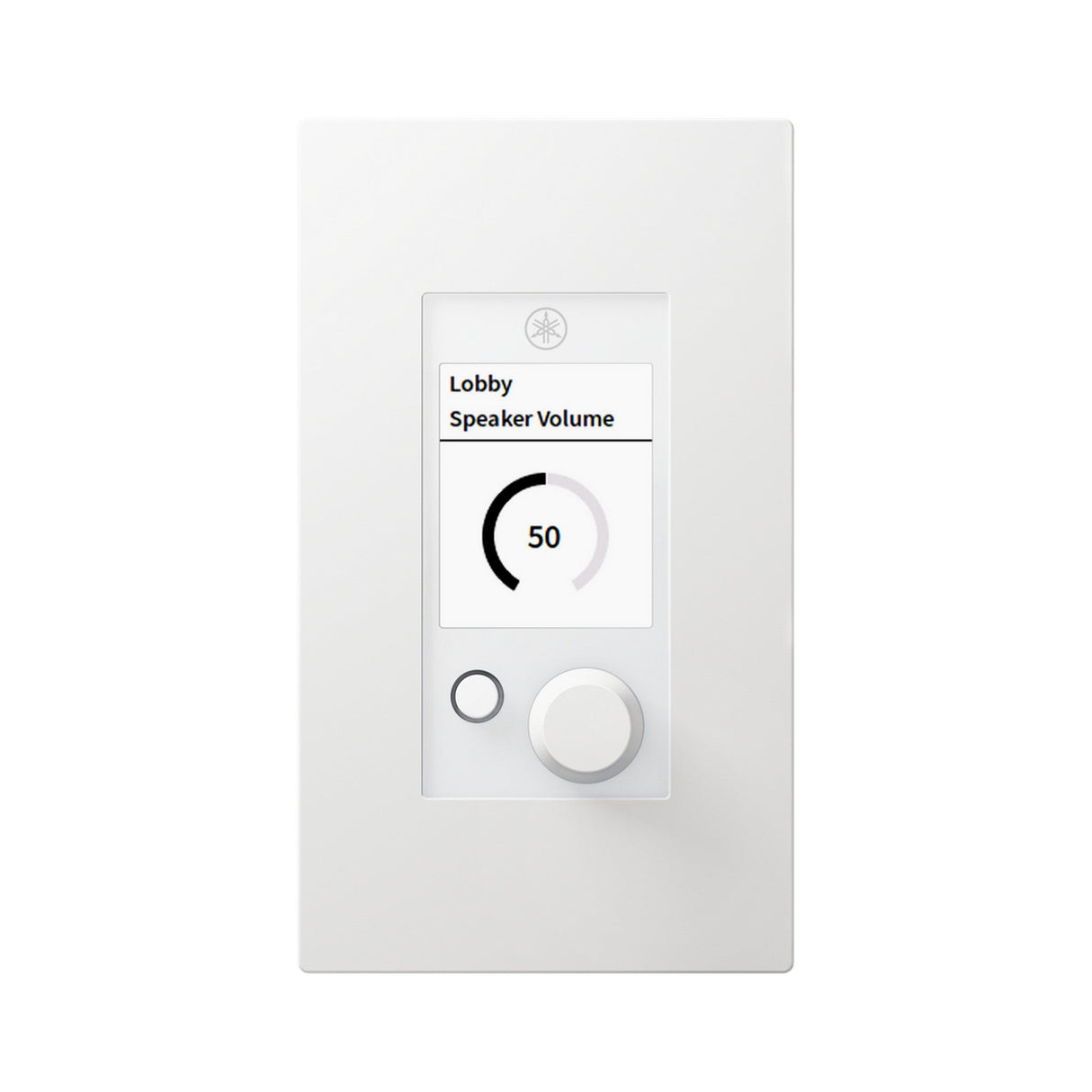

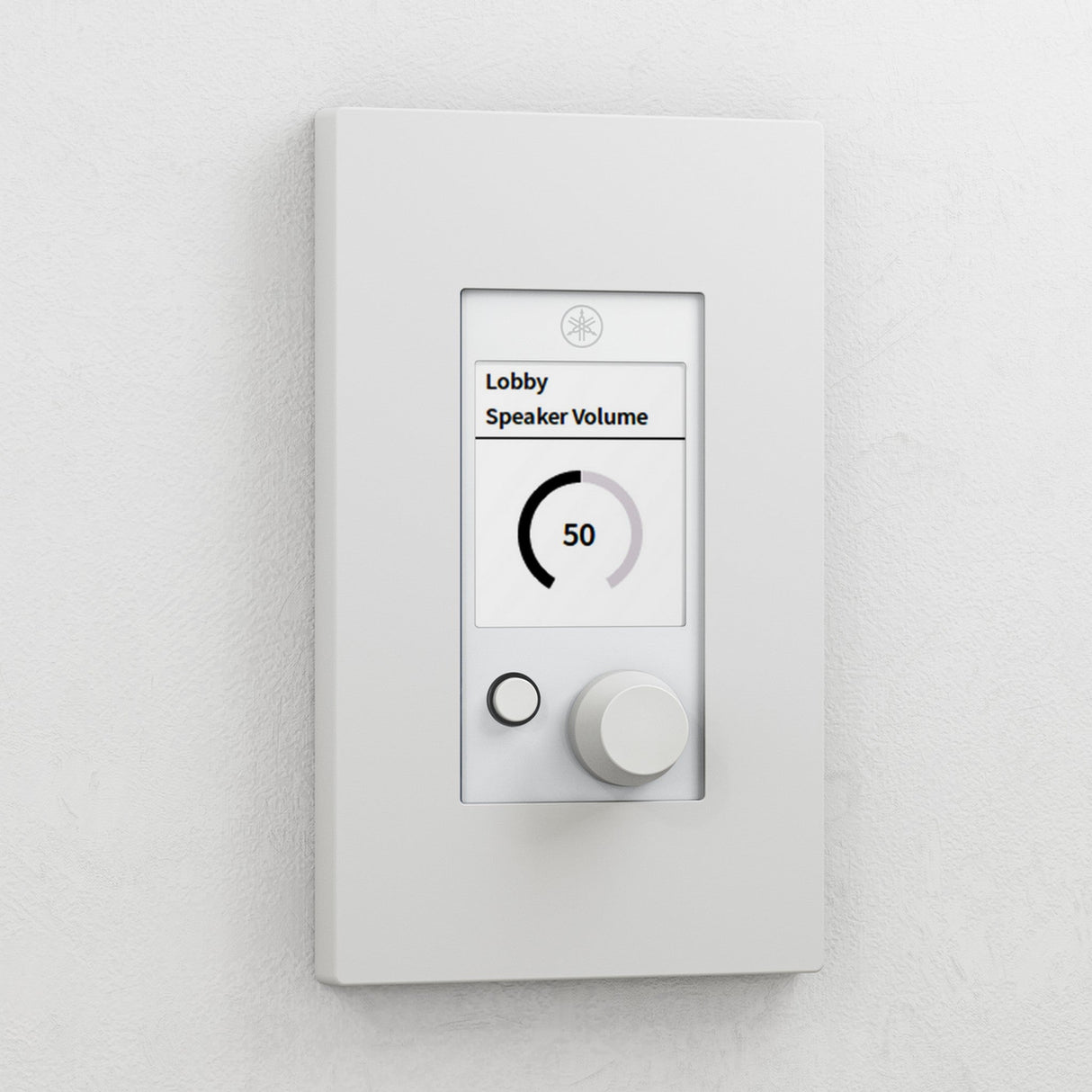

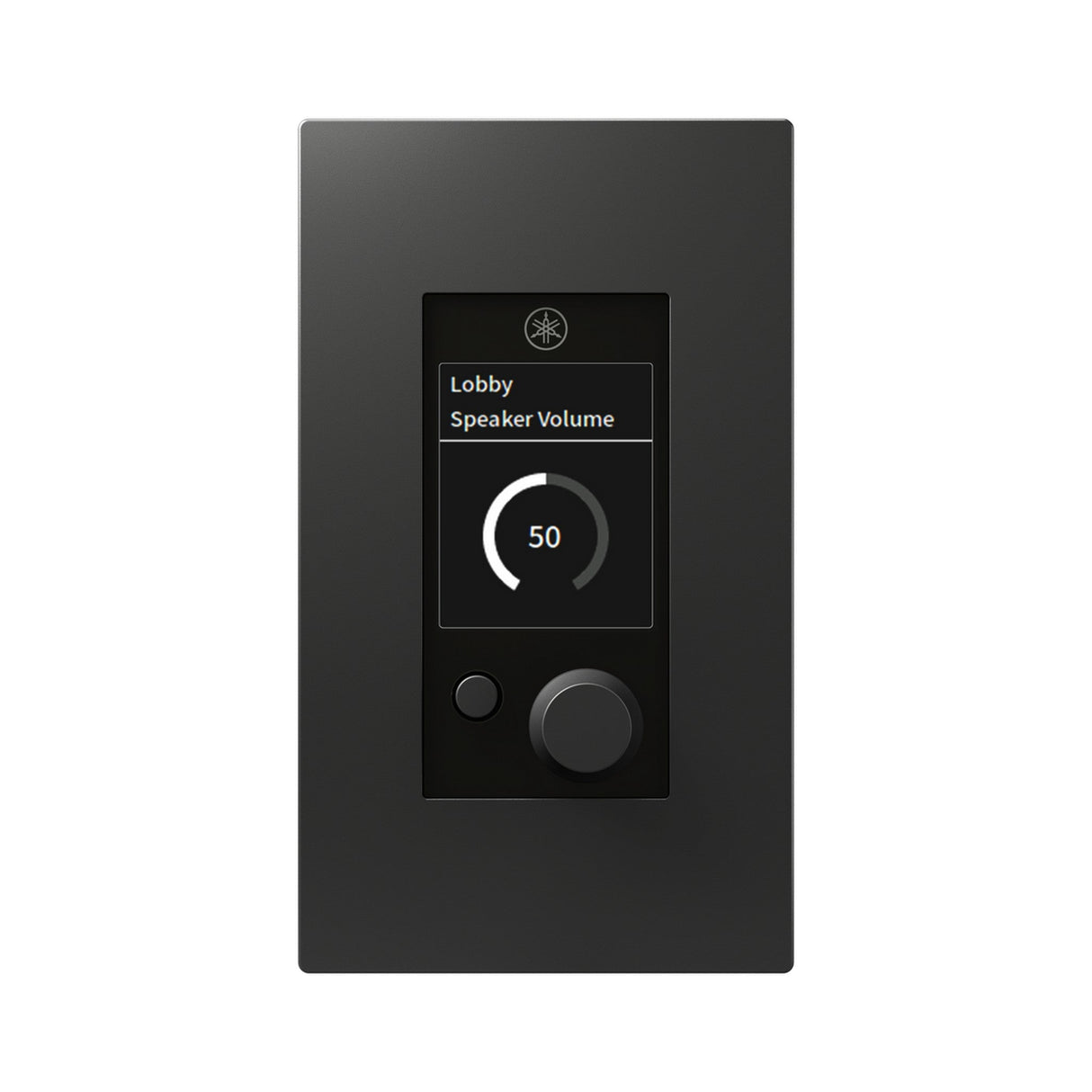

Yamaha MCP2 Single-Gang Wall-Mount Controller
The Yamaha MCP2 Wall-Mount Controller is a PoE-powered control panel for Yamaha commercial audio systems and compatible third-party network devices. It provides simple wall-mounted access to volume, mute, scene, page navigation, and other assigned functions through a clickable rotary knob, back button, and 1.77" color LCD.
Built for restaurants, meeting rooms, retail spaces, education facilities, hospitality venues, and multi-zone AV systems, the MCP2 gives users an intuitive way to manage daily system functions without opening control software. For buyers looking to purchase a Yamaha MCP2 controller, add wall control to a Yamaha DME system, or configure a networked audio control panel, it supports single-function, multi-function, and multi-page operation.
The MCP2 is configured with Yamaha ProVisionaire Design and can control Yamaha devices including DME5 and DME3 signal processors, along with compatible third-party devices that support released remote protocols. Available color options include White and Black, allowing the controller to match different room finishes without changing the product title.
Key Features
- Wall-Mount Control: Provides simple control of Yamaha ecosystem devices and compatible third-party network products.
- Assignable Functions: Supports up to 64 assigned items across 8 pages for flexible system operation.
- Clickable Rotary Knob: Lets users select parameters, adjust levels, confirm changes, and trigger assigned functions.
- Back Button Navigation: Supports quick page navigation and long-press operation assigned through ProVisionaire Design.
- PoE Connectivity: Uses a single Ethernet cable for both power and network connection.
- 1.77" Color LCD: Displays assigned controls, system information, color sets, and brightness settings clearly.
- PIN Lock: Helps prevent unintended operation in public or shared-use environments.
- US 1-Gang Fit: Installs in a US standard 1-gang switch box for clean wall-mounted deployment.
Technical Specifications
- Product Type: Wall-Mount Controller
- Compatible Configuration Software: Yamaha ProVisionaire Design
- Supported Control Modes: Single Function, Multi-function, Multi-page
- Maximum Assignable Items: 64 items across 8 pages
- Display: 1.77" Color LCD, 128 x 160
- Main Control: Clickable rotary knob
- Additional Controls: Back button, reset button
- I/O Terminal: RJ-45 PoE x 1
- Network Level: 100BASE-TX
- Cable Requirement: CAT5e or higher STP cable
- Power Requirements: PoE, IEEE 802.3af, DC 48 V
- Power Consumption: 2.2 W
- Material: Unpainted plastic, AES
- Available Color Options: White or Black
- US Dimensions: 2.8" x 4.7" x 2.0"
- Weight: 0.4 lbs
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 30% to 90%, no condensation
- Storage Temperature: -20°C to 60°C
- Storage Humidity: 20% to 90%, no condensation
What's Included
- Yamaha MCP2 Wall-Mount Controller
- Plastic Cover x 1
- Owner's Manual x 1
