Yamaha MGP24XA 24-Channel Analog Mixing Console with DSP Effects

Yamaha MGP24XA 24-Channel Analog Mixing Console with DSP Effects

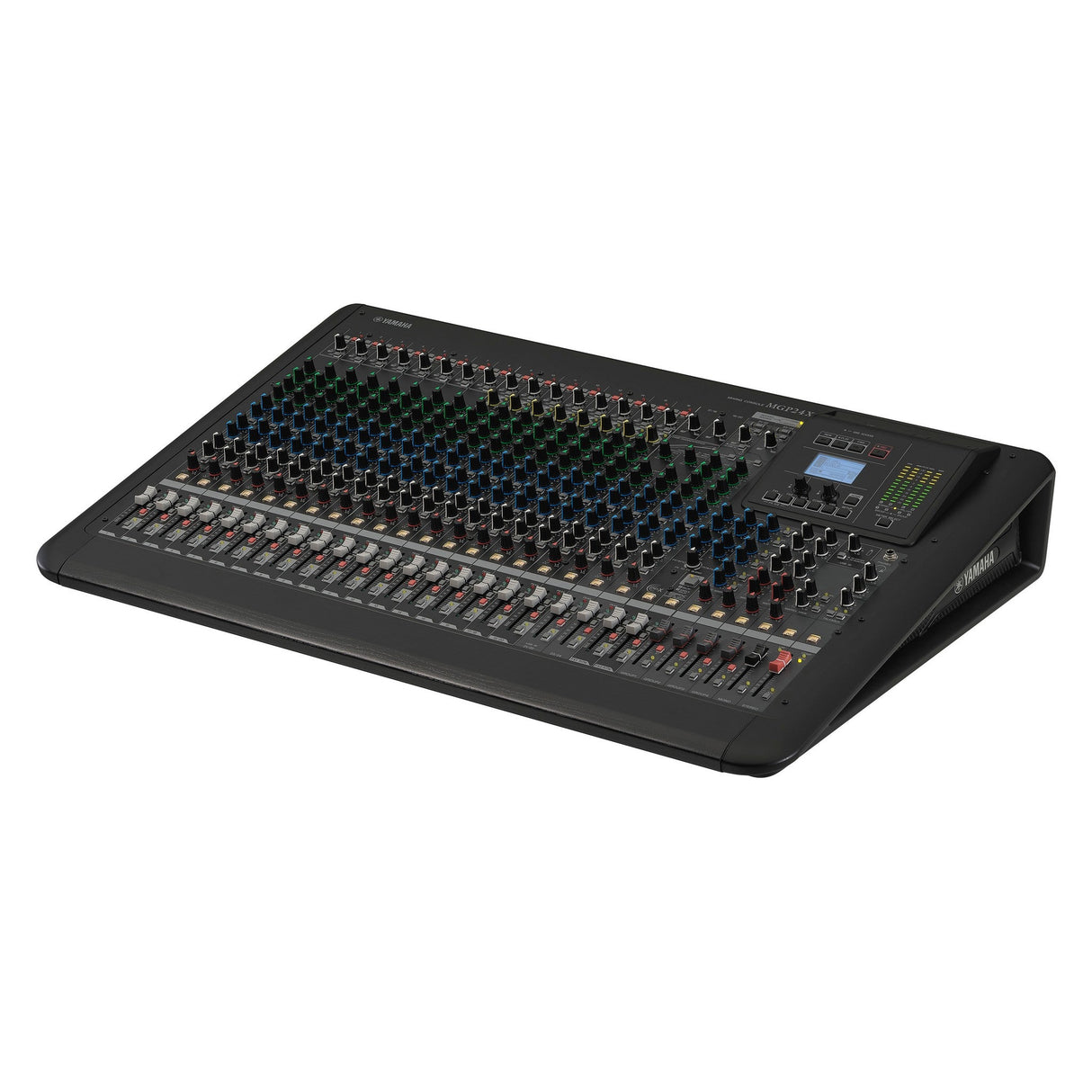

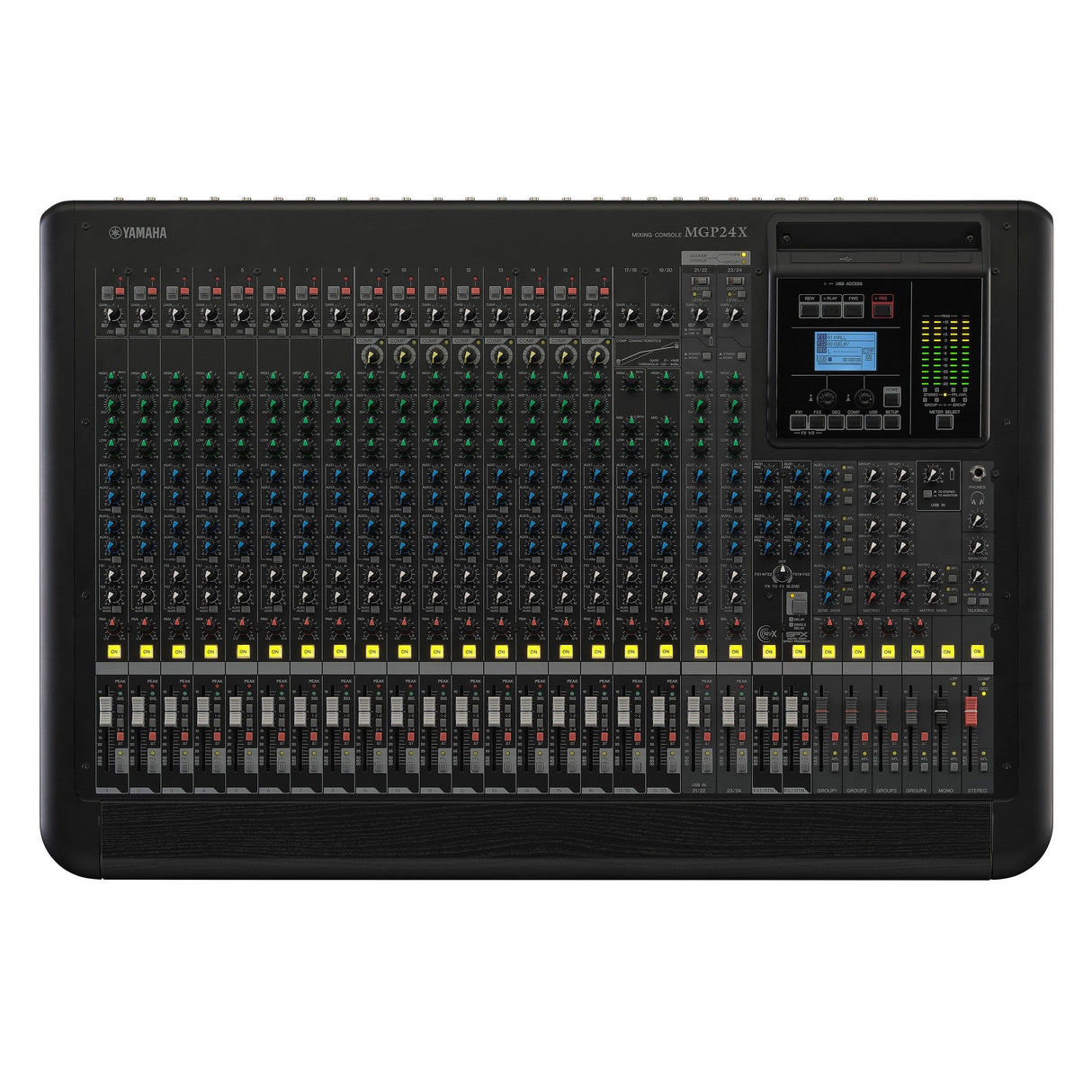

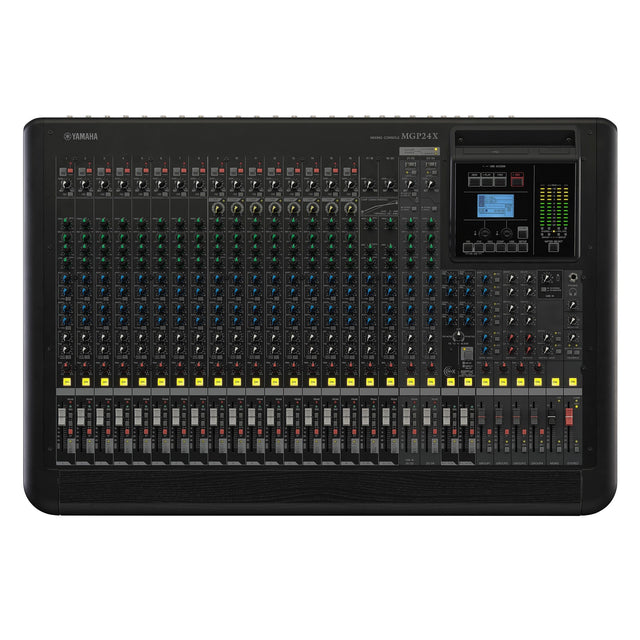

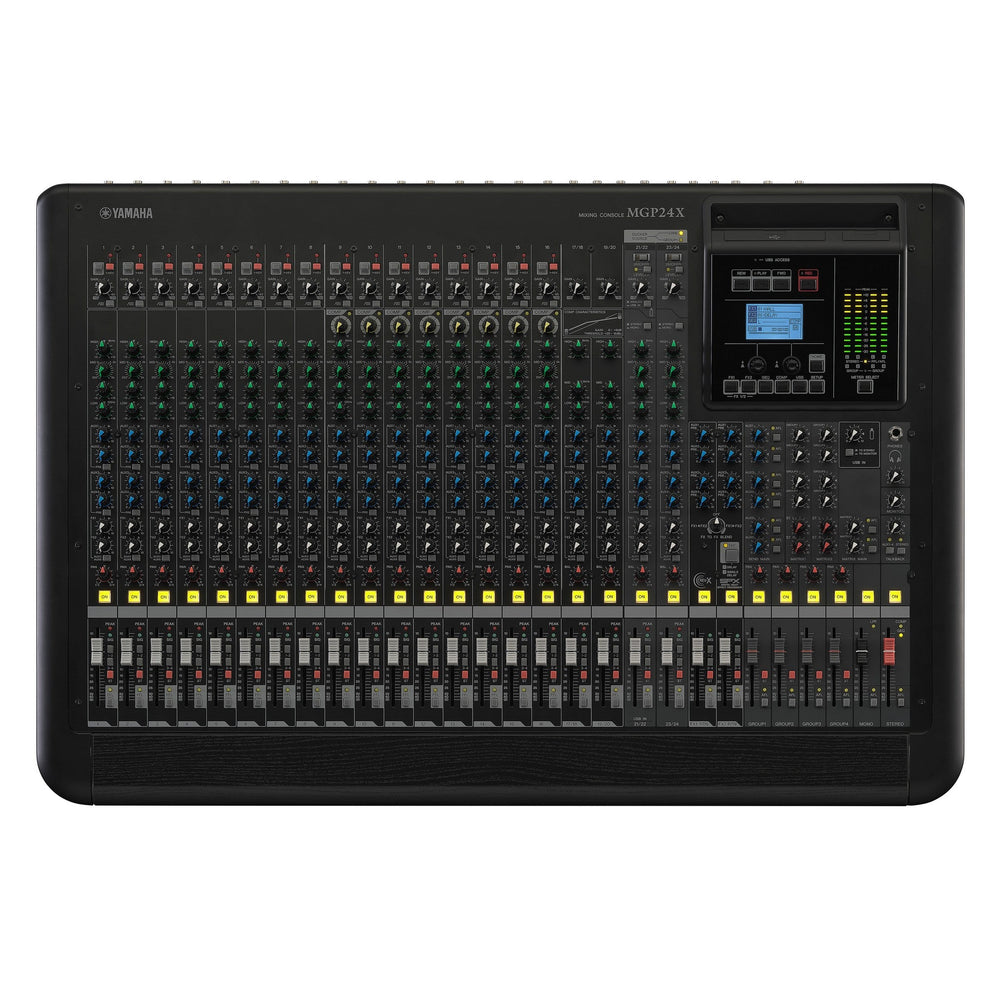

The Yamaha MGP24X 24-input analog mixing console provides 16 microphone inputs, flexible stereo channels, six auxiliary sends, four group outputs, and dedicated matrix routing for live sound production. Its extensive analog connectivity supports microphones, line-level equipment, outboard processors, stage monitors, recording feeds, and front-of-house speaker systems.

Designed for venues, houses of worship, schools, touring systems, and event production, the MGP24X accommodates large input counts without requiring a digital workflow. Sixteen channel inserts support external dynamics or equalization, while stereo, mono, group, auxiliary, matrix, and monitor outputs simplify complex signal distribution. This configuration suits buyers seeking a 24-input live sound mixer with professional XLR outputs and flexible monitor routing.

The console delivers a 20 Hz to 20 kHz frequency response, 0.02% total harmonic distortion, and -74 dB crosstalk at 1 kHz. Its universal 100 to 240 V power supply supports professional deployment across different electrical regions. This version does not include iPod connectivity or the Blend function previously associated with the stereo channels.

Key Features

• 24-Input Mixing Architecture: Handles microphones, instruments, playback sources, and stereo equipment in one live sound console.
• Sixteen Microphone Channels: Provides dedicated XLR microphone inputs for vocals, instruments, presenters, and stage sources.
• Flexible Line Connectivity: Includes sixteen mono line inputs and four stereo line input pairs for external audio equipment.
• Six Auxiliary Sends: Routes independent monitor mixes, effects sends, or additional production feeds through XLR outputs.
• Four Group Outputs: Combines related channels for subgroup processing and simplified level control.
• Dual Matrix Outputs: Creates additional mixes for lobby speakers, recording systems, broadcast feeds, or delayed zones.
• Comprehensive Insert Routing: Supports external processors through sixteen mono channel inserts and one stereo insert pair.
• Universal Power Compatibility: Operates from 100 to 240 V AC at 50 or 60 Hz for flexible installation and touring use.

Technical Specifications

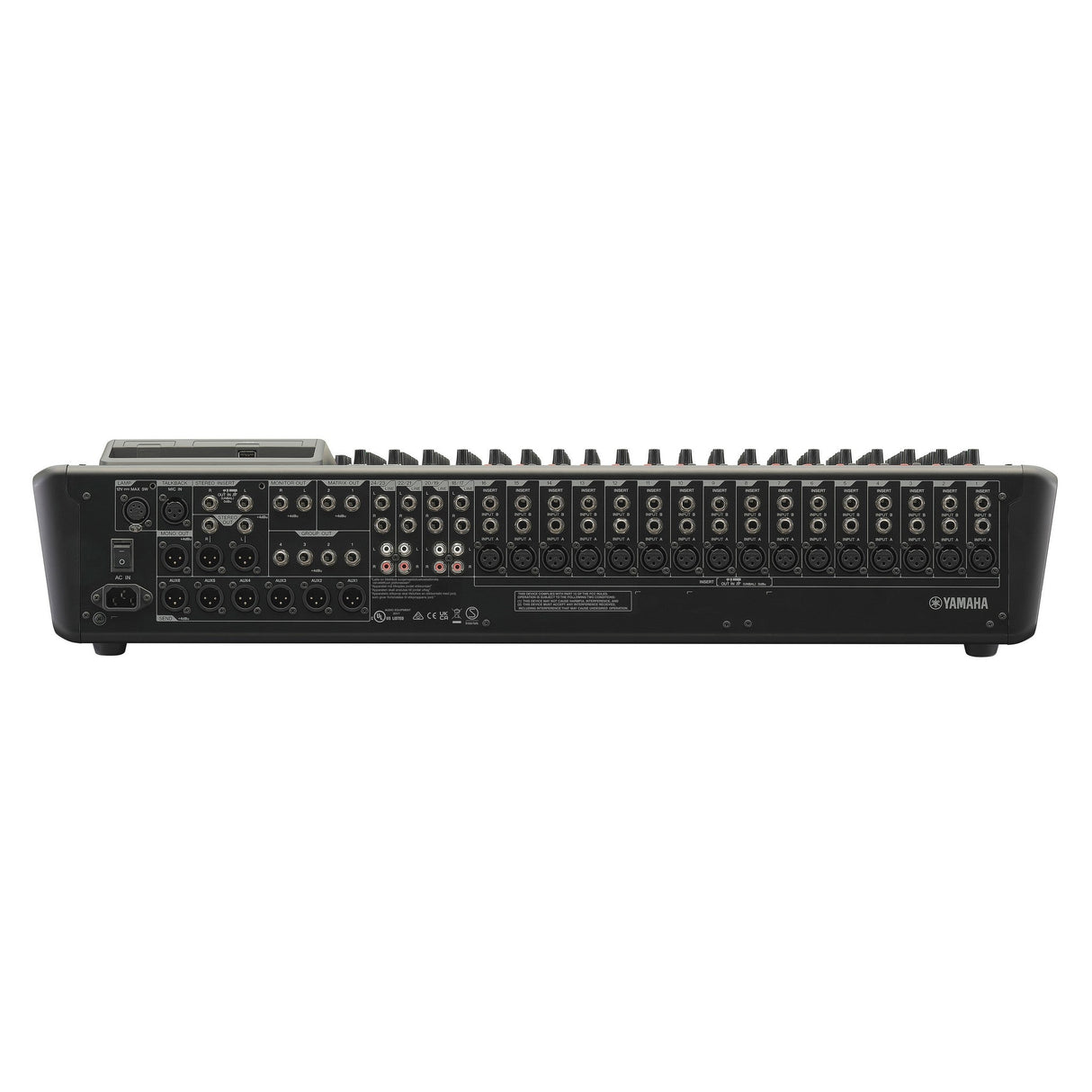

• Microphone Inputs: 16 x XLR mic-level inputs
• Mono Line Inputs: 16 x 1/4" TRS line-level inputs
• Stereo Line Inputs: 4 x stereo 1/4" TRS line-level input pairs
• Mono Channel Inserts: 16 x 1/4" TRS inserts
• Stereo Return: 1 x 1/4" stereo return
• Mono Input Source Impedance: 3 kilohms
• Mono Mic Input Sensitivity at -60 dB: -80 dBu, 0.078 mV, for 50 to 600-ohm microphones
• Mono Mic Input Sensitivity at -16 dB: -36 dBu, 12.3 mV, for 50 to 600-ohm microphones
• Mono Line Input Sensitivity at -34 dB: -54 dBu, 1.55 mV, for 600-ohm lines
• Mono Line Input Sensitivity at +10 dB: -10 dBu, 245 mV, for 600-ohm lines
• Stereo Channel Source Impedance: 10 kilohms
• Stereo Line Input Sensitivity at -34 dB: -54 dBu, 1.55 mV, for 600-ohm lines
• Stereo Line Input Sensitivity at +10 dB: -10 dBu, 245 mV, for 600-ohm lines
• Mono Channel Insert Input Sensitivity: -20 dBu, 77.5 mV, 10-kilohm source impedance, for 600-ohm lines
• Stereo Channel Insert Input Sensitivity: -20 dBu, 77.5 mV, 10-kilohm source impedance
• Talkback Input Sensitivity: -66 dBu, 0.389 mV, 10-kilohm source impedance, for 50 to 600-ohm microphones
• Nominal Mono Mic Input Level at -60 dB: -60 dBu, 0.775 mV, for 50 to 600-ohm microphones
• Nominal Mono Mic Input Level at -16 dB: +16 dBu, 123 mV, for 50 to 600-ohm microphones
• Nominal Mono Line Input Level at -34 dB: -34 dBu, 15.5 mV, for 600-ohm lines
• Nominal Mono Line Input Level at +10 dB: +10 dBu, 2.45 V, for 600-ohm lines
• Nominal Stereo Line Input Level at -34 dB: -34 dBu, 15.5 mV, for 600-ohm lines
• Nominal Stereo Line Input Level at +10 dB: +10 dBu, 2.45 V, for 600-ohm lines
• Nominal Mono Channel Insert Input Level: 0 dBu, 0.775 V, 10-kilohm source impedance, for 600-ohm lines
• Nominal Stereo Channel Insert Input Level: 0 dBu, 0.775 V, 10-kilohm source impedance
• Nominal Talkback Input Level: -50 dBu, 2.45 mV, 10-kilohm source impedance, for 50 to 600-ohm microphones
• Maximum Mono Mic Input Level at -60 dB: -40 dBu, 7.75 mV, for 50 to 600-ohm microphones
• Maximum Mono Mic Input Level at -16 dB: +4 dBu, 1.23 V, for 50 to 600-ohm microphones
• Maximum Mono Line Input Level at -34 dB: -14 dBu, 155 mV, for 600-ohm lines
• Maximum Mono Line Input Level at +10 dB: +30 dBu, 24.5 V, for 600-ohm lines
• Maximum Stereo Line Input Level at -34 dB: -14 dBu, 155 mV, for 600-ohm lines
• Maximum Stereo Line Input Level at +10 dB: +30 dBu, 24.5 V, for 600-ohm lines
• Maximum Mono Channel Insert Input Level: +20 dBu, 7.75 V, 10-kilohm source impedance, for 600-ohm lines
• Maximum Stereo Channel Insert Input Level: +20 dBu, 7.75 V, 10-kilohm source impedance
• Maximum Talkback Input Level: -30 dBu, 24.5 mV, 10-kilohm source impedance, for 50 to 600-ohm microphones
• Stereo Output: 1 x XLR stereo output pair, left and right
• Auxiliary Sends: 6 x XLR outputs
• Channel Insert Outputs: 16 x 1/4" outputs
• Monitor Output: 1 x 1/4" output pair, left and right
• Group Outputs: 4 x 1/4" outputs
• Headphone Output: 1 x 1/8" output
• Stereo Insert: 1 x 1/4" insert pair, left and right
• Matrix Outputs: 2 x 1/4" outputs
• Mono Output: 1 x XLR output
• Nominal Stereo Output Level: +4 dBu, 1.23 V at 75 ohms, for nominal 600-ohm lines
• Nominal Mono Output Level: +4 dBu, 1.23 V at 75 ohms, for nominal 600-ohm lines
• Nominal Group Output Level: +4 dBu, 1.23 V at 150 ohms, for nominal 10-kilohm lines
• Nominal Auxiliary Send Level: +4 dBu, 1.23 V at 75 ohms, for nominal 600-ohm lines
• Nominal Matrix Output Level: +4 dBu, 1.23 V at 150 ohms, for nominal 10-kilohm lines
• Nominal Mono Channel Insert Output Level: 0 dBu, 0.775 V at 75 ohms, for nominal 10-kilohm lines
• Nominal Stereo Channel Insert Output Level: 0 dBu, 0.775 V at 75 ohms, for nominal 10-kilohm lines
• Nominal Monitor Output Level: +4 dBu, 1.23 V at 150 ohms, for nominal 10-kilohm lines
• Nominal Headphone Output Level: 3 mW at 150 ohms, for nominal 40-ohm headphones
• Maximum Stereo Output Level: +24 dBu, 12.3 V at 75 ohms, for nominal 600-ohm lines
• Maximum Mono Output Level: +24 dBu, 12.3 V at 75 ohms, for nominal 600-ohm lines
• Maximum Group Output Level: +20 dBu, 7.75 V at 150 ohms, for nominal 10-kilohm lines
• Maximum Auxiliary Send Level: +24 dBu, 12.3 V at 75 ohms, for nominal 600-ohm lines
• Maximum Matrix Output Level: +20 dBu, 7.75 V at 150 ohms, for nominal 10-kilohm lines
• Maximum Mono Channel Insert Output Level: +20 dBu, 7.75 V at 75 ohms, for nominal 10-kilohm lines
• Maximum Stereo Channel Insert Output Level: +20 dBu, 7.75 V at 75 ohms, for nominal 10-kilohm lines
• Maximum Monitor Output Level: +20 dBu, 7.75 V at 150 ohms, for nominal 10-kilohm lines
• Maximum Headphone Output Level: 75 mW at 150 ohms, for nominal 40-ohm headphones
• Total Harmonic Distortion: 0.02% from 20 Hz to 20 kHz at +14 dBu
• Frequency Response: 20 Hz to 20 kHz, +0.5/-1 dB, referenced to nominal output level at 1 kHz
• Crosstalk: -74 dB at 1 kHz
• Power Supply: 100 to 240 V AC, 50/60 Hz
• Maximum Power Consumption: 76 W
• Dimensions: 32.2 x 6.7 x 22.2"
• Weight: 34.2 lb
