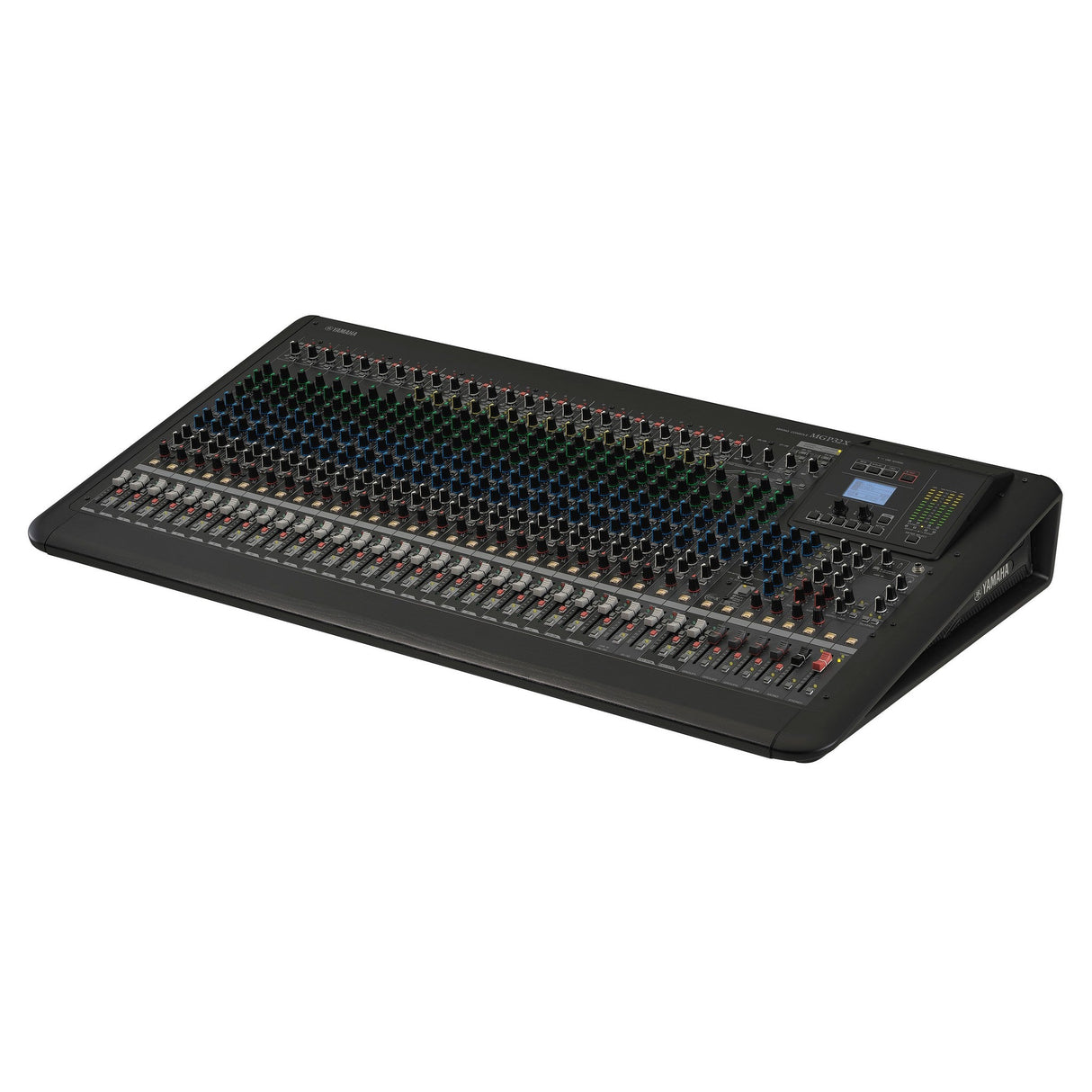

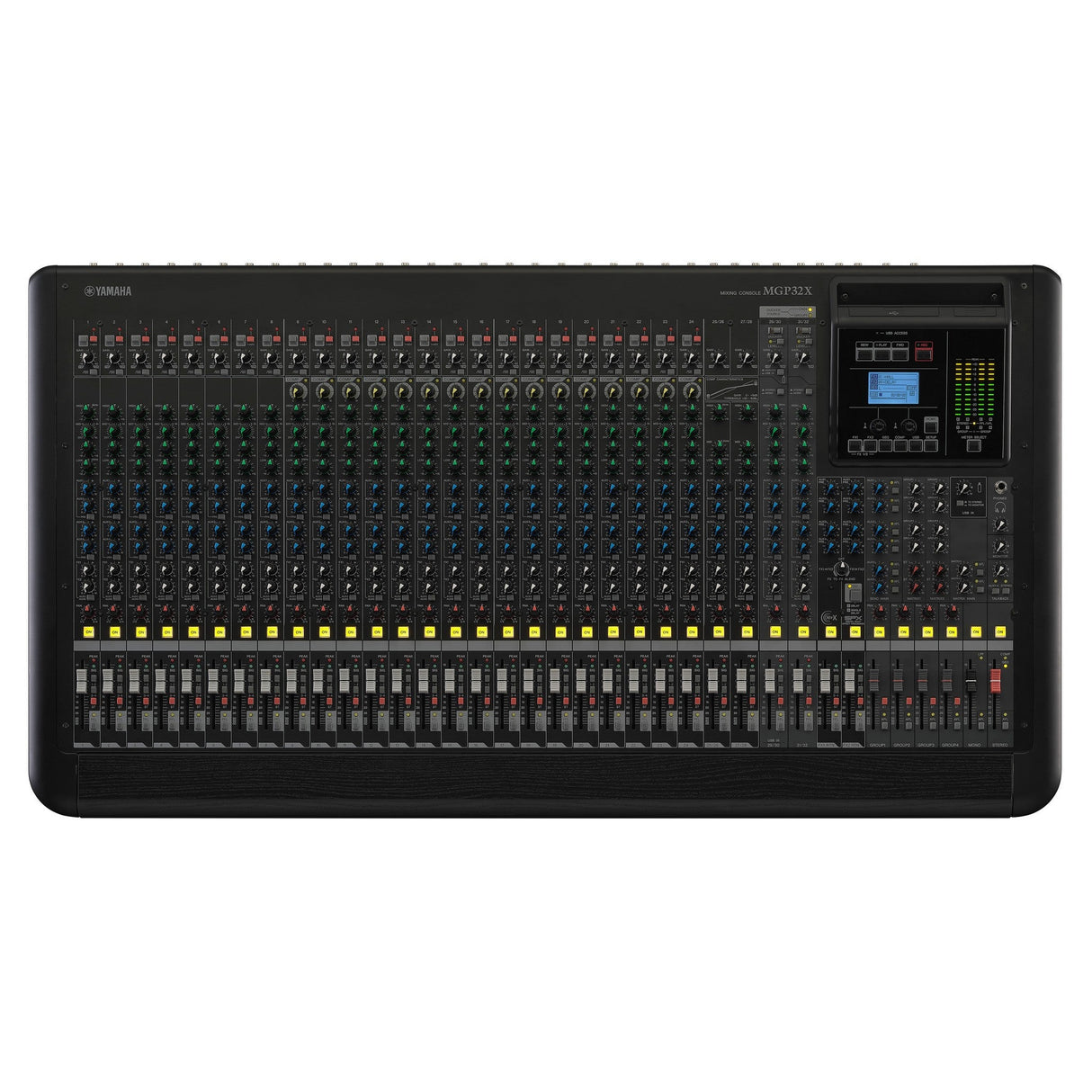

Yamaha MGP32XA 32-Channel Analog Mixing Console with DSP Effects

Yamaha MGP32XA 32-Channel Analog Mixing Console with DSP Effects

The Yamaha MGP32X 32-channel premium analog mixing console provides extensive microphone, line-level, stereo, auxiliary, group, matrix, monitor, and insert connectivity for professional sound reinforcement. Its large-format input and output architecture supports multichannel mixing for live venues, houses of worship, theaters, educational facilities, production spaces, and installed audio systems.

Designed for complex productions, the MGP32X accepts up to 24 microphone-level XLR sources alongside 24 quarter-inch TRS line inputs and four stereo line inputs. Six auxiliary sends, four group outputs, two matrix outputs, stereo outputs, and a dedicated mono output give engineers flexible routing for stage monitors, recording feeds, delay speakers, overflow rooms, and distributed sound systems.

The console supports detailed gain staging across microphone, line, insert, and talkback connections. A 20 Hz to 20 kHz frequency response, 0.02% total harmonic distortion, and -74 dB crosstalk specification provide documented performance for professional audio applications. Universal 100 to 240 VAC operation allows integration into touring, rental, production, and permanent-installation workflows.

Key Features

• 32-channel mixing format for live sound, production, and installed audio applications
• 24 microphone-level XLR inputs for connecting wired microphones and external audio equipment
• 24 quarter-inch TRS line inputs plus four stereo TRS line inputs
• Six XLR auxiliary sends for monitor mixes, effects routing, and additional audio feeds
• Four group outputs and two matrix outputs for flexible signal distribution
• Dedicated stereo, mono, monitor, headphone, and channel-insert connections
• 20 Hz to 20 kHz frequency response with 0.02% total harmonic distortion
• Universal 100 to 240 VAC power input for professional installations and touring systems

Technical Specifications

Input and Output

• Microphone Inputs: 24 x XLR, microphone level
• Mono Line Inputs: 24 x 1/4" TRS, line level
• Stereo Line Inputs: 4 x stereo 1/4" TRS, line level
• Mono Channel Insert Inputs: 16 x 1/4" TRS
• Stereo Return: 1 x 1/4" stereo

Input Sensitivity

Mono Inputs

• Actual Source Impedance: 3 kOhms
• Microphone Level at -60 dB: -80 dBu, 0.078 mV, for 50 to 600-ohm microphones
• Microphone Level at -16 dB: -36 dBu, 12.3 mV, for 50 to 600-ohm microphones
• Line Level at -34 dB: -54 dBu, 1.55 mV, for 600-ohm lines
• Line Level at +10 dB: -10 dBu, 245 mV, for 600-ohm lines

Stereo Channel Inputs

• Actual Source Impedance: 10 kOhms
• Line Level at -34 dB: -54 dBu, 1.55 mV, for 600-ohm lines
• Line Level at +10 dB: -10 dBu, 245 mV, for 600-ohm lines

Insert and Talkback Input Sensitivity

• Mono Channel Inserts: -20 dBu, 77.5 mV, 10 kOhm actual source impedance, for 600-ohm lines
• Stereo Channel Insert Inputs: -20 dBu, 77.5 mV, 10 kOhm actual source impedance
• Talkback Input: -66 dBu, 0.389 mV, 10 kOhm actual source impedance, for 50 to 600-ohm microphones

Nominal Input Level

Mono Inputs

• Actual Source Impedance: 3 kOhms
• Microphone Level at -60 dB: -60 dBu, 0.775 mV, for 50 to 600-ohm microphones
• Microphone Level at -16 dB: +16 dBu, 123 mV, for 50 to 600-ohm microphones
• Line Level at -34 dB: -34 dBu, 15.5 mV, for 600-ohm lines
• Line Level at +10 dB: +10 dBu, 2.45 V, for 600-ohm lines

Stereo Channel Inputs

• Actual Source Impedance: 10 kOhms
• Line Level at -34 dB: -34 dBu, 15.5 mV, for 600-ohm lines
• Line Level at +10 dB: +10 dBu, 2.45 V, for 600-ohm lines

Insert and Talkback Nominal Input Levels

• Mono Channel Inserts: 0 dBu, 0.775 V, 10 kOhm actual source impedance, for 600-ohm lines
• Stereo Channel Insert Inputs: 0 dBu, 0.775 V, 10 kOhm actual source impedance
• Talkback Input: -50 dBu, 2.45 mV, 10 kOhm actual source impedance, for 50 to 600-ohm microphones

Maximum Input Level

Mono Inputs

• Actual Source Impedance: 3 kOhms
• Microphone Level at -60 dB: -40 dBu, 7.75 mV, for 50 to 600-ohm microphones
• Microphone Level at -16 dB: +4 dBu, 1.23 V, for 50 to 600-ohm microphones
• Line Level at -34 dB: -14 dBu, 155 mV, for 600-ohm lines
• Line Level at +10 dB: +30 dBu, 24.5 V, for 600-ohm lines

Stereo Channel Inputs

• Actual Source Impedance: 10 kOhms
• Line Level at -34 dB: -14 dBu, 155 mV, for 600-ohm lines
• Line Level at +10 dB: +30 dBu, 24.5 V, for 600-ohm lines

Insert and Talkback Maximum Input Levels

• Mono Channel Inserts: +20 dBu, 7.75 V, 10 kOhm actual source impedance, for 600-ohm lines
• Stereo Channel Insert Inputs: +20 dBu, 7.75 V, 10 kOhm actual source impedance
• Talkback Input: -30 dBu, 24.5 mV, 10 kOhm actual source impedance, for 50 to 600-ohm microphones

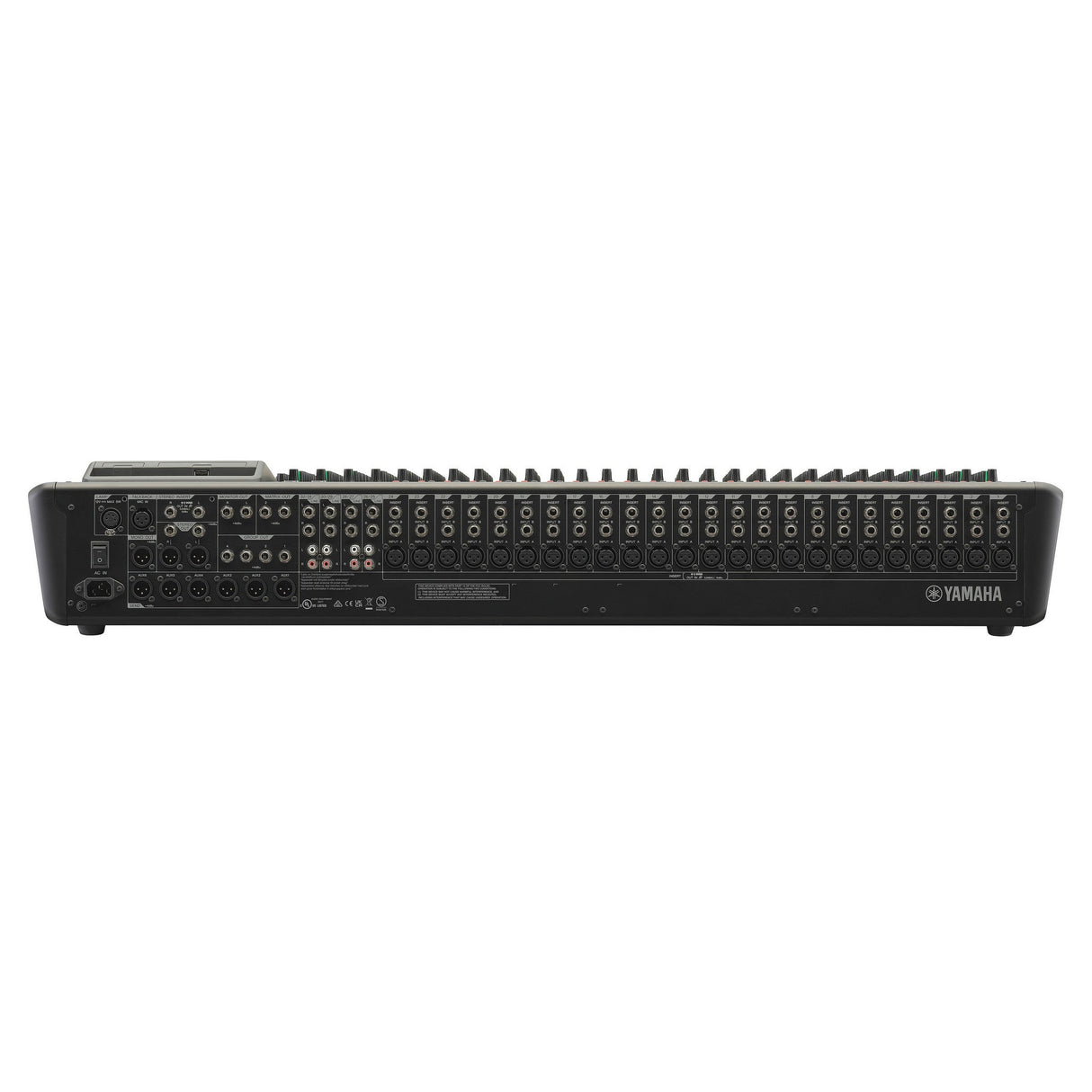

Outputs

• Stereo Output: 1 x XLR stereo pair, left and right
• Auxiliary Sends: 6 x XLR
• Channel Insert Outputs: 24 x 1/4"
• Monitor Output: 1 x 1/4" stereo pair, left and right
• Group Outputs: 4 x 1/4"
• Headphone Output: 1 x 1/8"
• Stereo Insert: 1 x 1/4" stereo pair, left and right
• Matrix Outputs: 2 x 1/4"
• Mono Output: 1 x XLR

Nominal Output Level

• Stereo Output: +4 dBu, 1.23 V, at 75 ohms, for nominal 600-ohm lines
• Mono Output: +4 dBu, 1.23 V, at 75 ohms, for nominal 600-ohm lines
• Group Outputs 1 to 4: +4 dBu, 1.23 V, at 150 ohms, for nominal 10 kOhm lines
• Auxiliary Sends 1 to 6: +4 dBu, 1.23 V, at 75 ohms, for nominal 600-ohm lines
• Matrix Outputs 1 and 2: +4 dBu, 1.23 V, at 150 ohms, for nominal 10 kOhm lines
• Mono Channel Insert Outputs 1 to 16: 0 dBu, 0.775 V, at 75 ohms, for nominal 10 kOhm lines
• Stereo Channel Insert Outputs: 0 dBu, 0.775 V, at 75 ohms, for nominal 10 kOhm lines
• Monitor Outputs: +4 dBu, 1.23 V, at 150 ohms, for nominal 10 kOhm lines
• Headphone Output: 3 mW at 150 ohms, for nominal 40-ohm headphones

Maximum Output Level

• Stereo Output: +24 dBu, 12.3 V, at 75 ohms, for nominal 600-ohm lines
• Mono Output: +24 dBu, 12.3 V, at 75 ohms, for nominal 600-ohm lines
• Group Outputs 1 to 4: +20 dBu, 7.75 V, at 150 ohms, for nominal 10 kOhm lines
• Auxiliary Sends 1 to 6: +24 dBu, 12.3 V, at 75 ohms, for nominal 600-ohm lines
• Matrix Outputs 1 and 2: +20 dBu, 7.75 V, at 150 ohms, for nominal 10 kOhm lines
• Mono Channel Insert Outputs 1 to 16: +20 dBu, 7.75 V, at 75 ohms, for nominal 10 kOhm lines
• Stereo Channel Insert Outputs: +20 dBu, 7.75 V, at 75 ohms, for nominal 10 kOhm lines
• Monitor Outputs: +20 dBu, 7.75 V, at 150 ohms, for nominal 10 kOhm lines
• Headphone Output: 75 mW at 150 ohms, for nominal 40-ohm headphones

General

• Total Harmonic Distortion: 0.02% from 20 Hz to 20 kHz at +14 dBu
• Frequency Response: 20 Hz to 20 kHz, +0.5/-1.0 dB, referenced to nominal output level at 1 kHz
• Crosstalk: -74 dB at 1 kHz
• Power Supply: 100 to 240 VAC, 50/60 Hz
• Maximum Power Consumption: 86 W
• Dimensions: 40.4 x 6.7 x 22.2"
• Weight: 41.9 lb

What's Included

• Yamaha MGP32X 32-Channel Premium Analog Mixing Console
