Yamaha MS45DR 2.1-Channel Electronic Drum Monitor System

$32999

Yamaha MS45DR 2.1-Channel Electronic Drum Monitor System

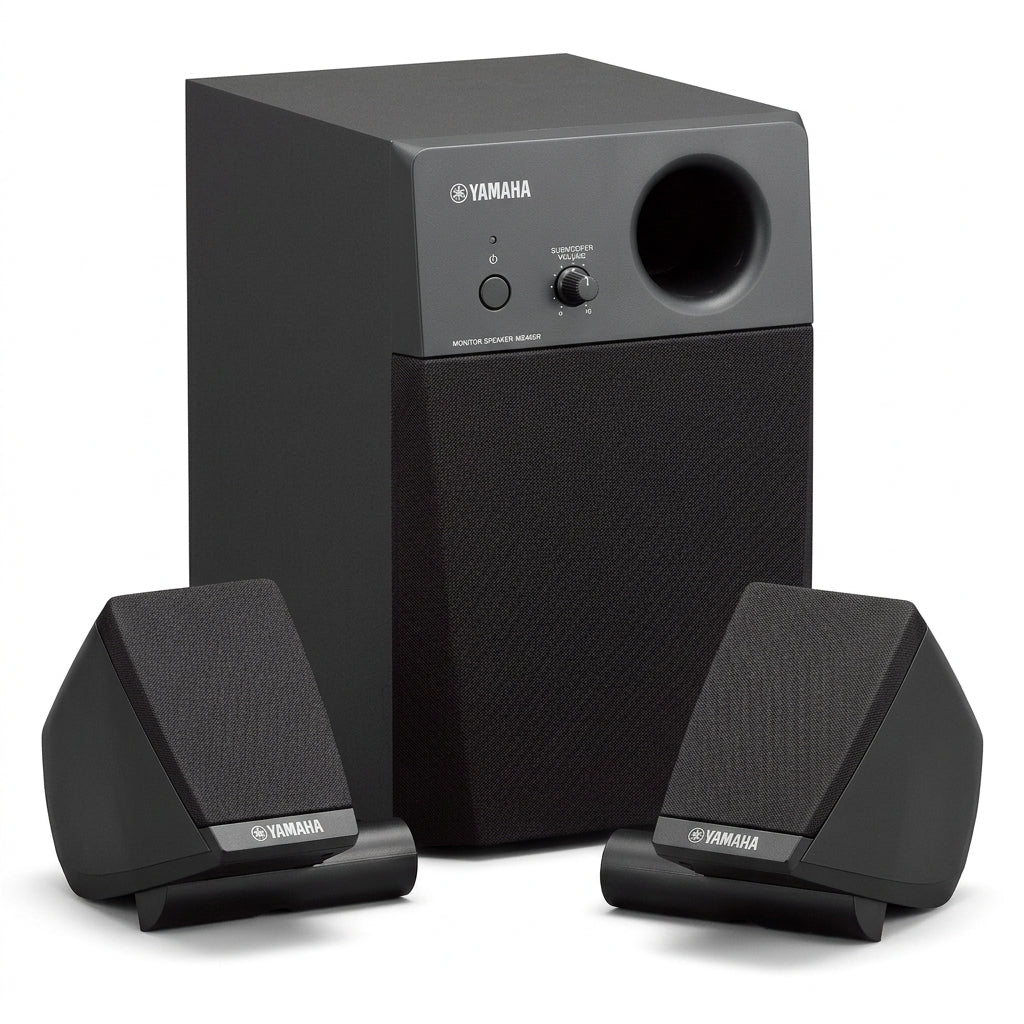

The Yamaha MS45DR 2.1-Channel Electronic Drum Monitor System combines two rack-mountable 20W satellite speakers with a 20W powered subwoofer for stereo electronic drum monitoring. Its 40 Hz to 20 kHz frequency response reproduces cymbal detail, toms, and low-frequency kick drum sounds, providing an alternative to headphones for home practice and electronic drum performance.

Designed for electronic drummers who want to hear their instruments through external speakers, the MS45DR delivers 60W of combined rated amplifier output through its three-speaker configuration. The two-way satellite speakers reproduce midrange and high-frequency sounds, while the dedicated 6.5-inch subwoofer handles bass drum and floor tom frequencies. This arrangement provides separate left and right channels for stereo drum monitoring. Musicians can use the system for individual practice, drum lessons, and playing alongside other performers in home environments. Its compact design also helps minimize the space required for a complete electronic drum monitoring setup.

The Yamaha MS45DR integrates with compatible electronic drum modules through an included combination cable and supports mounting on straight, 1.5-inch diameter drum rack pipes. Adjustable satellite speaker clamps allow users to position the speakers toward their listening position. Independent master and bass volume controls provide convenient sound adjustment, while universal 100-240V AC power supports operation in different electrical environments. Yamaha's included mounting hardware and connection accessories simplify installation with compatible electronic drum kits.

Key Features

2.1-Channel Electronic Drum Speaker System

The MS45DR uses a stereo satellite arrangement supported by a dedicated low-frequency speaker. This configuration allows electronic drum modules to reproduce their programmed stereo positions through separate left and right speakers.

Each satellite speaker receives 20W of amplifier power and contains two speaker drivers. A 3-inch cone driver reproduces midrange percussion sounds, while a 0.8-inch dome tweeter handles higher frequencies associated with cymbals and other percussion instruments.

The powered subwoofer uses a 6.5-inch cone driver rated at 20W. Its dedicated low-frequency output helps reproduce kick drum impact and the lower frequencies of electronic tom sounds.

Compact Satellite Speakers with Adjustable Drum Rack Mounting

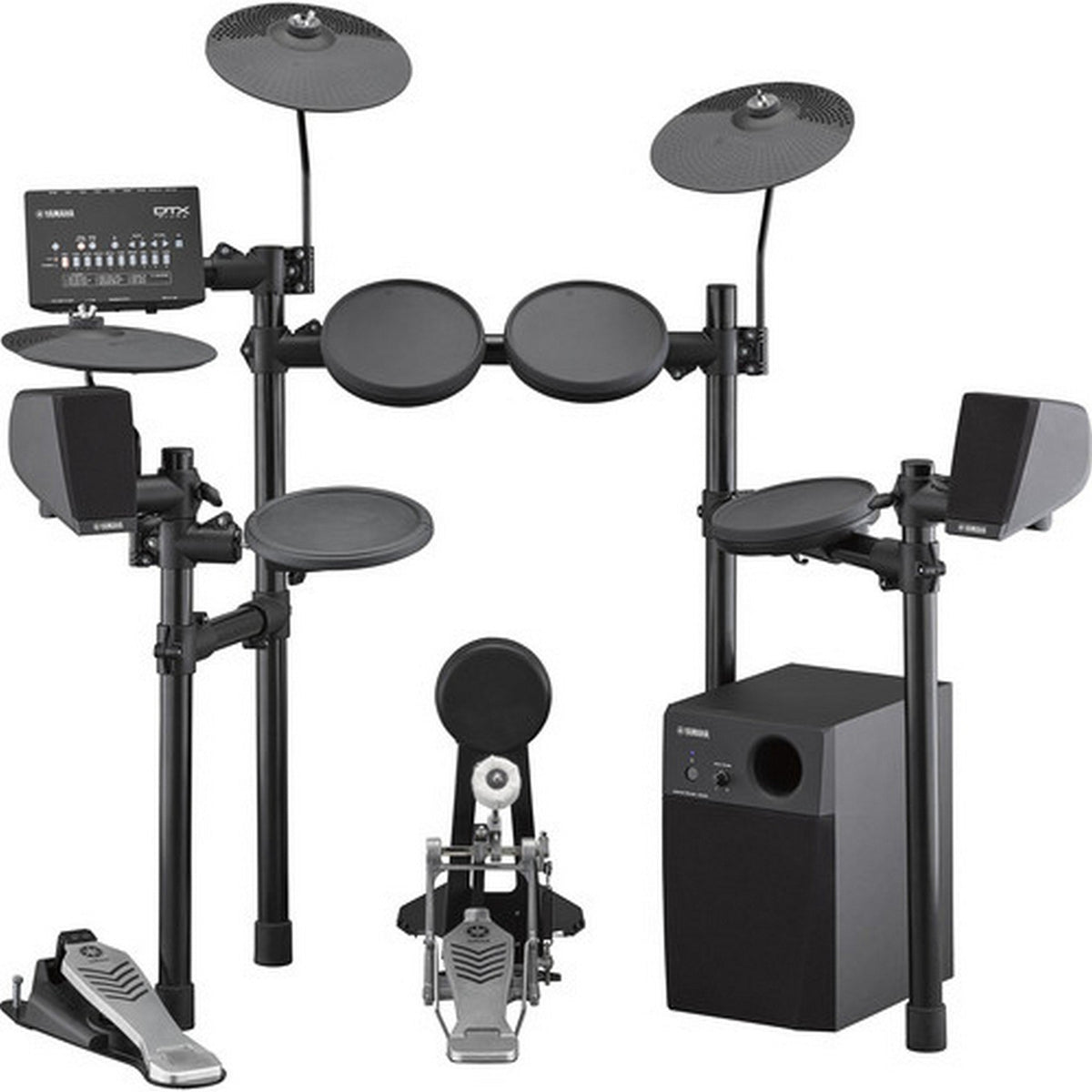

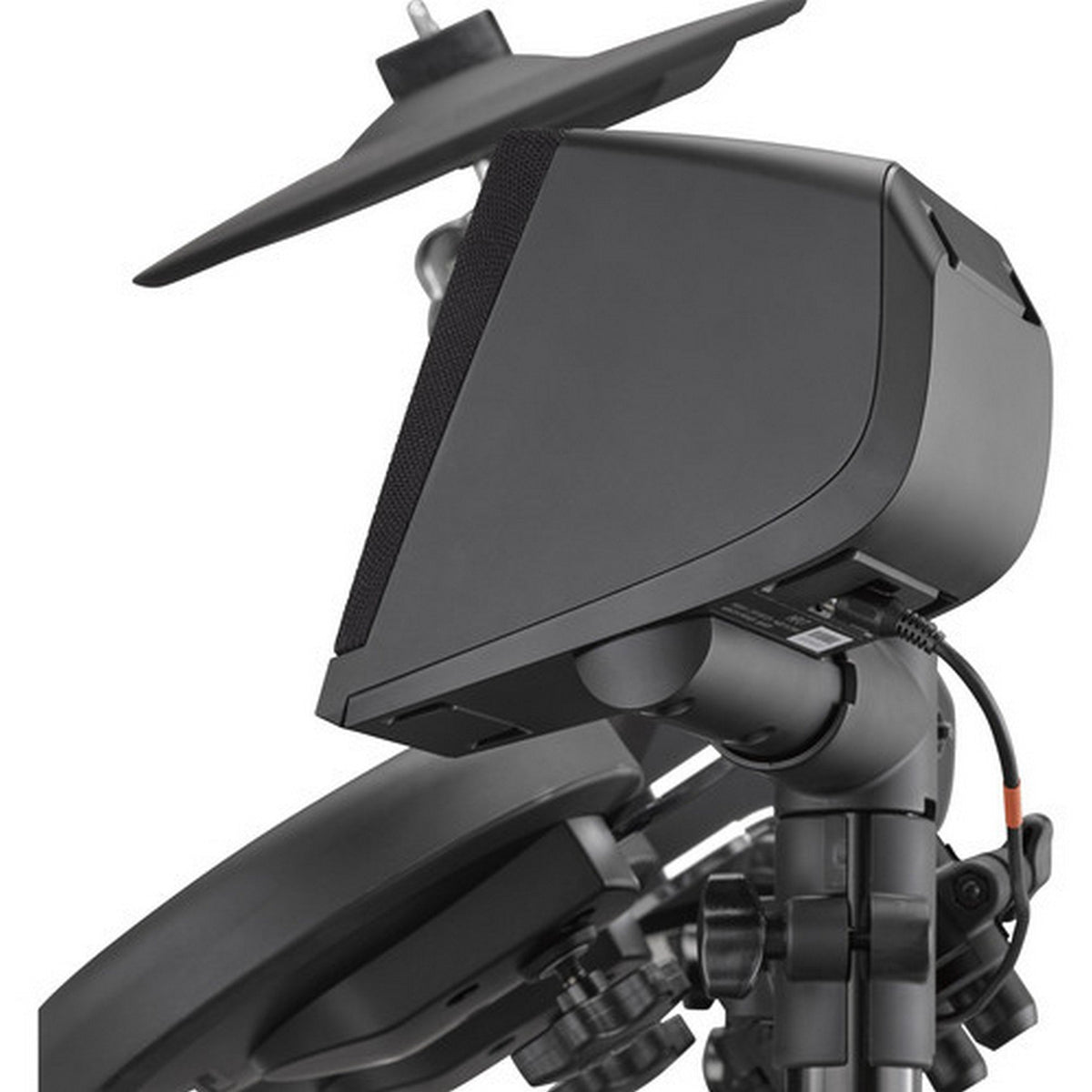

The Yamaha MS45DR satellite speakers are designed to attach directly to compatible electronic drum racks. Each speaker includes a mounting arm that connects to the supplied pipe clamp.

The clamps accommodate straight vertical rack pipes with a diameter of 1.5 inches. Adjustable mounting hardware allows users to direct the speakers toward their preferred listening position.

The satellite speakers measure approximately 4.3 inches wide, 7.2 inches high, and 5.4 inches deep, excluding their mounting holders. Their compact dimensions help preserve space around the electronic drum kit.

Compatibility depends on the drum rack's pipe diameter and shape. The included clamps are not designed for curved pipes or racks using different pipe diameters.

Dedicated Subwoofer for Kick Drum and Low-Frequency Percussion

The MS45DR includes a powered subwoofer designed to reproduce low-frequency sounds generated by electronic drum modules. Its 6.5-inch cone speaker operates with a dedicated 20W amplifier rated at 60 Hz into 8 ohms.

A front-mounted bass volume control allows players to adjust low-frequency output independently of the overall speaker level. This provides additional flexibility when balancing kick drum sounds against cymbals and other percussion instruments.

The subwoofer measures approximately 8.7 inches wide, 13.8 inches high, and 13.5 inches deep. It is designed for placement on a stable floor surface near the electronic drum kit.

Simple Volume Controls and Electronic Drum Connectivity

The monitor system includes straightforward controls for adjusting listening levels without requiring an external audio mixer.

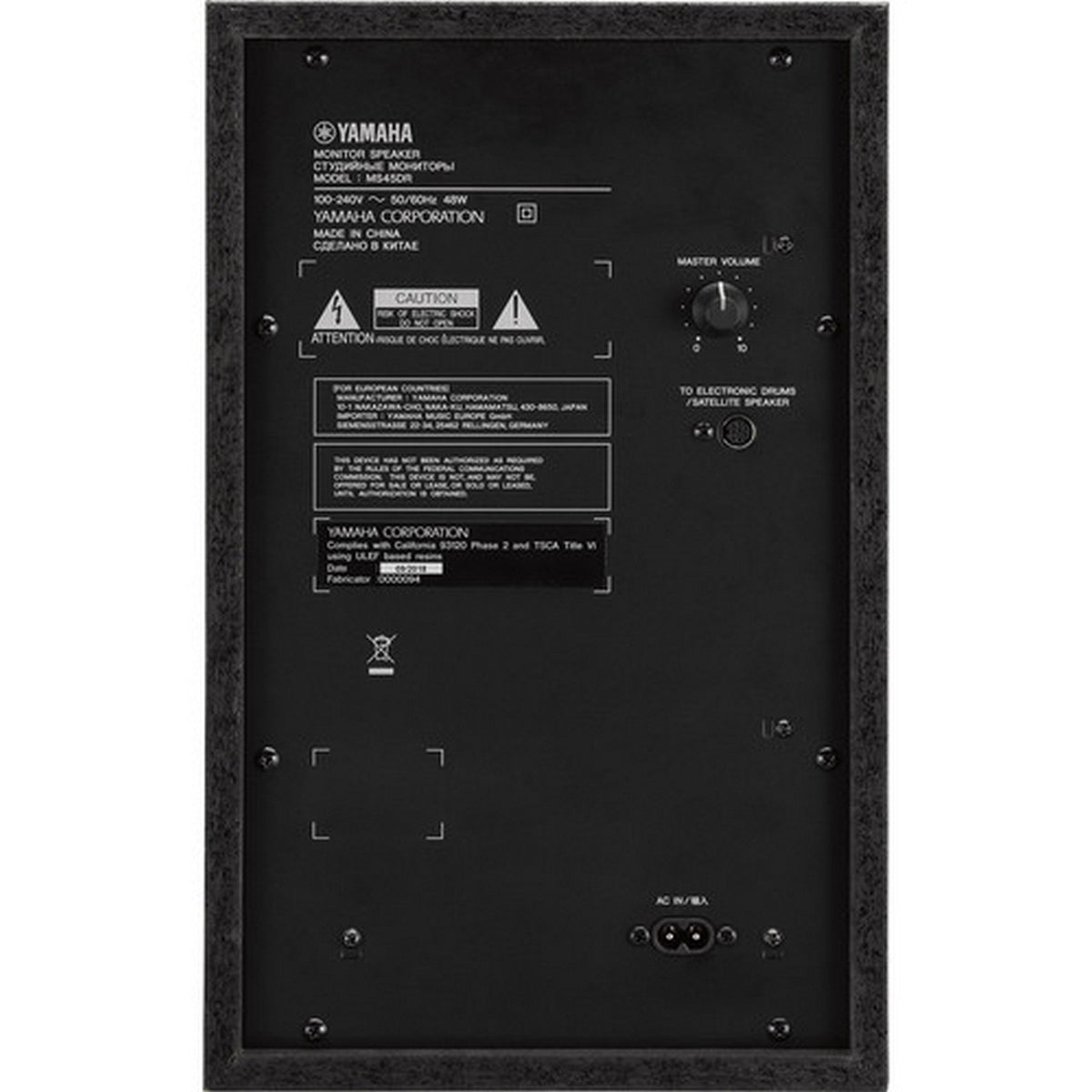

A master volume control on the rear of the subwoofer adjusts overall speaker output. A separate bass volume control on the front panel changes the subwoofer's level, allowing drummers to increase or decrease low-frequency reproduction.

The included combination cable connects the subwoofer, satellite speakers, and a compatible electronic drum sound module. It incorporates an 8-pin Mini DIN connection alongside phone and RCA connectors for distributing audio between the system components.

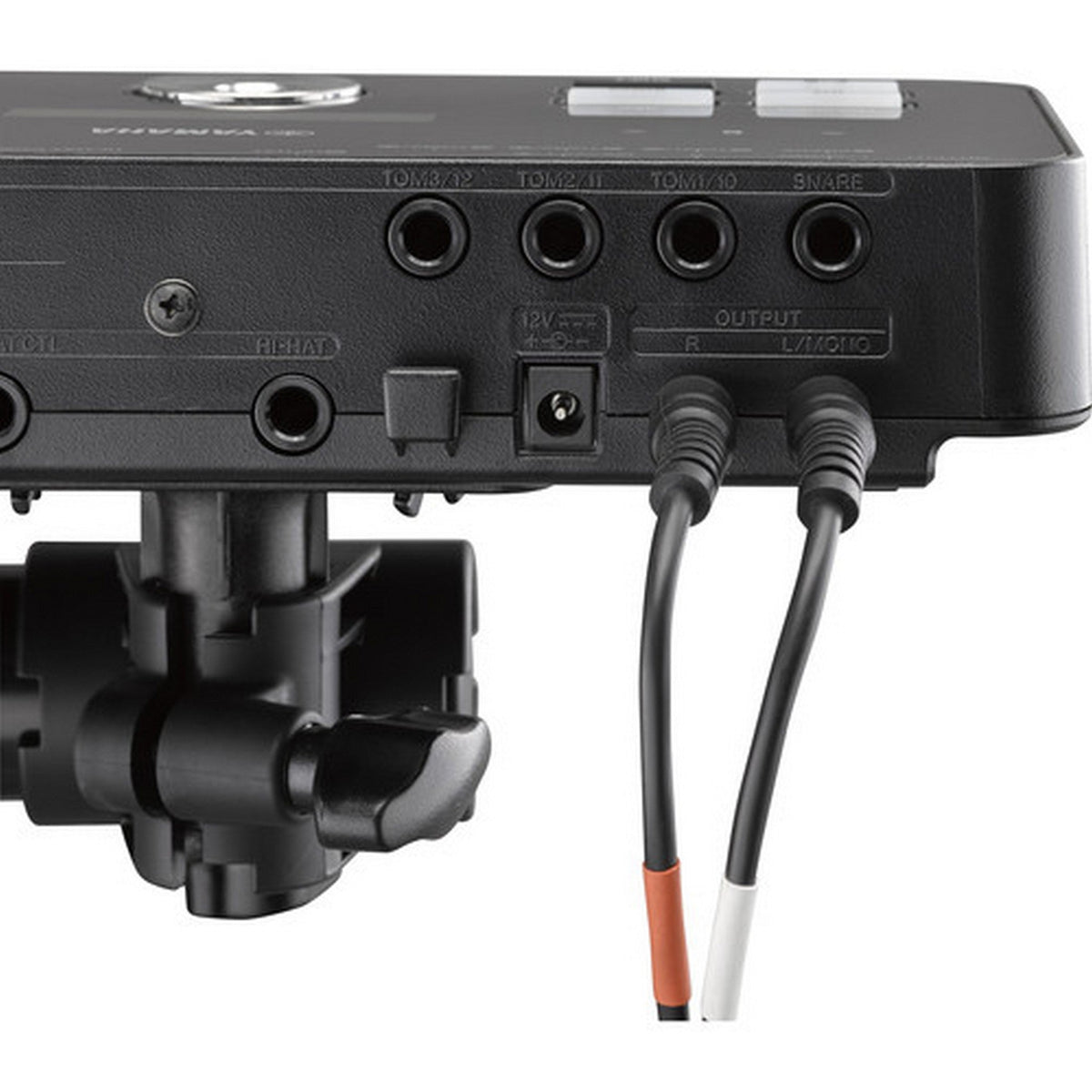

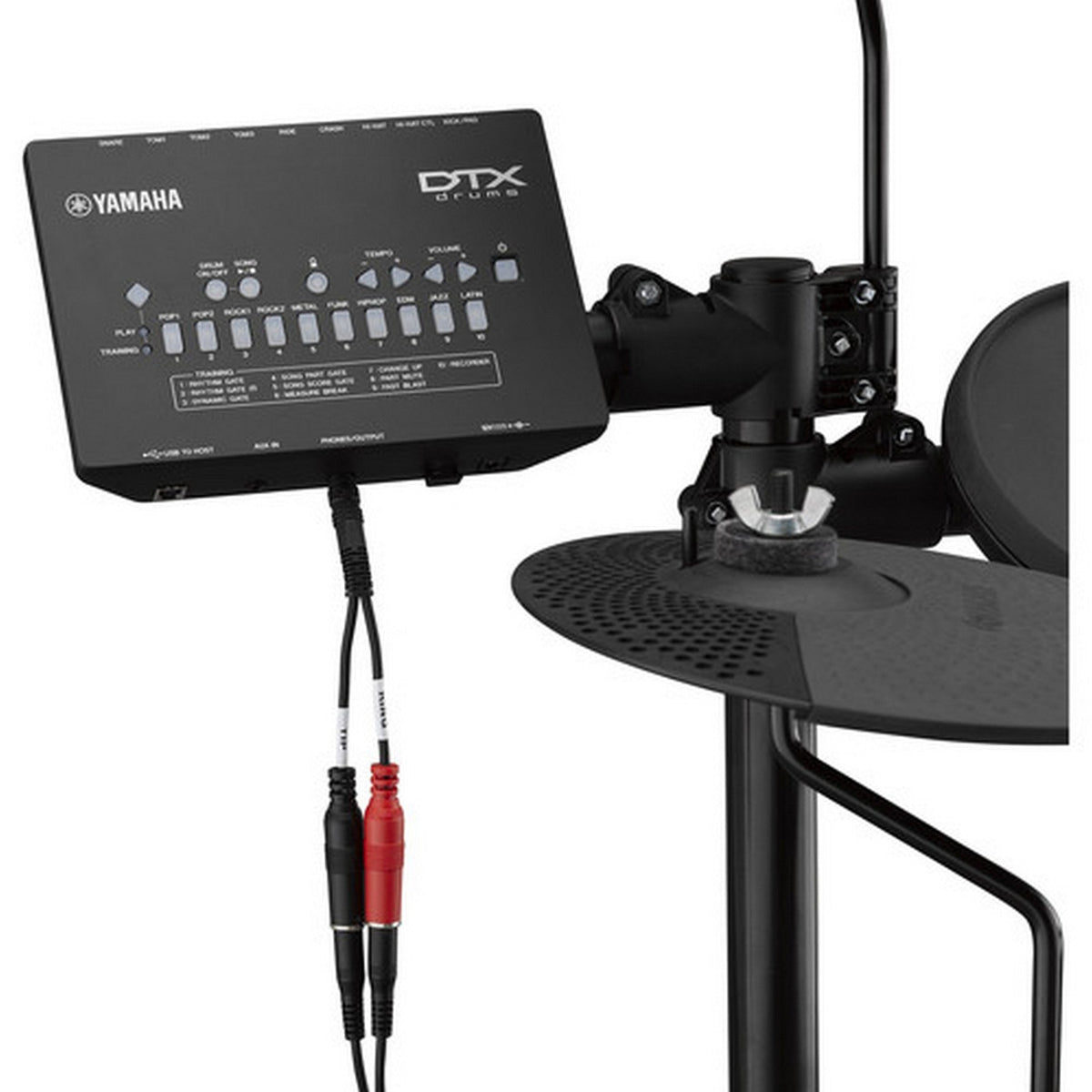

Electronic drum modules equipped with separate left and right audio outputs can connect through the appropriate cable connections. Modules with a single stereo output, including the Yamaha DTX402 series, require a separately available Y cable for the specified connection arrangement.

Designed for Home Electronic Drum Practice

The Yamaha MS45DR provides an external speaker solution for musicians who prefer practicing without headphones. Its stereo satellite configuration places sound closer to the drummer's listening position, while the subwoofer reproduces lower-frequency percussion sounds.

The system is particularly suitable for home electronic drum kits, music instruction environments, and compact practice spaces.

With a specified power consumption of 24W and an operating voltage range of 100-240V AC, the MS45DR supports practical everyday operation. The included power cord and mounting accessories help simplify the initial installation.

Technical Specifications

General Specifications

Satellite Speaker Specifications

Subwoofer Specifications

Amplification and Audio Performance

Connections and Controls

Power Specifications

Mounting and Installation Specifications

Physical Dimensions and Weight

Drum Kit System Not Included, Only Monitor System

What's In the Box
