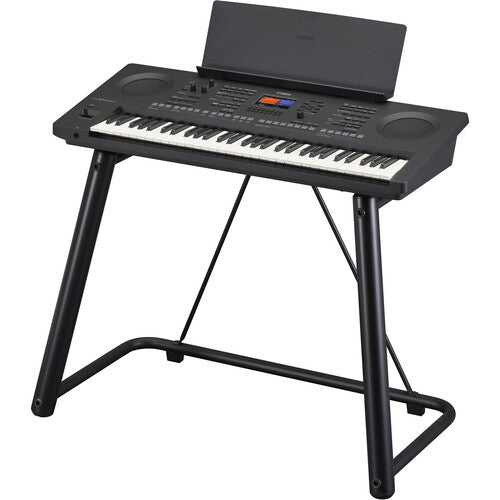

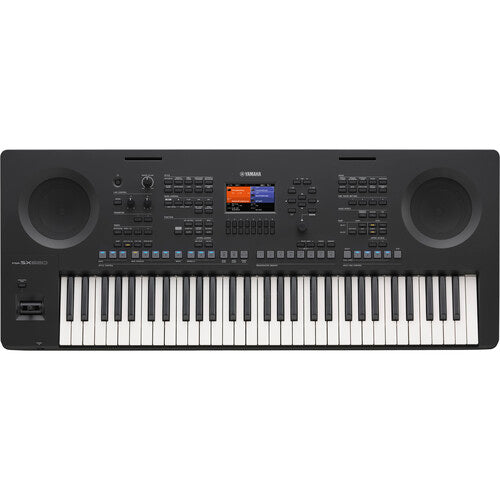

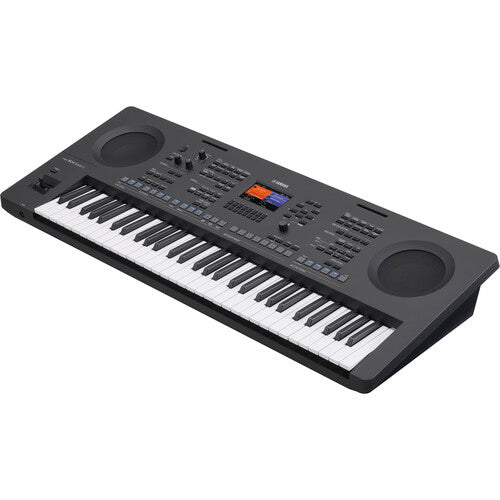

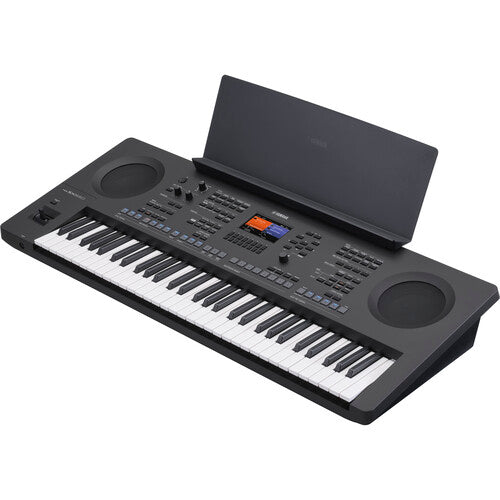

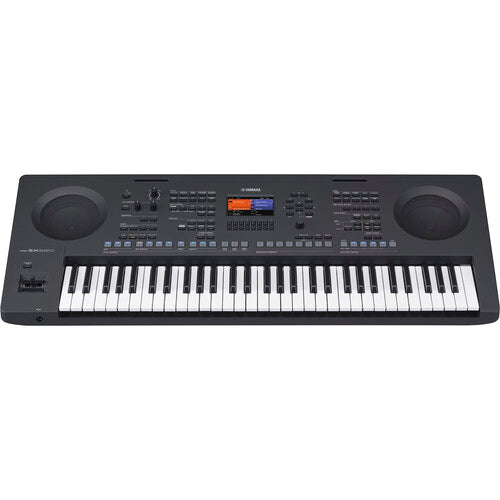

Yamaha PSR-SX620 61-Key Arranger Workstation Keyboard

Yamaha PSR-SX620 Arranger Workstation Keyboard

The Yamaha PSR-SX620 Arranger Workstation is a 61-key performance keyboard built for solo players who want flexible accompaniment, expressive Voices, and hands-on control in one portable instrument. It combines more than 1,000 Voices, 450 preset Styles, 128-note polyphony, and integrated speakers for practice, songwriting, rehearsal, and live performance.

Designed as a 61-key arranger keyboard for live performance and creative practice, the PSR-SX620 provides automatic accompaniment plus Chord Looper, Smart Chord, Multi-Pads, and Super Articulation Voices. Two assignable Live Control knobs and a joystick give performers immediate access to sound shaping, pitch, modulation, effects, and Style parameters without interrupting a performance. Bluetooth audio also lets musicians wirelessly stream reference tracks and play along.

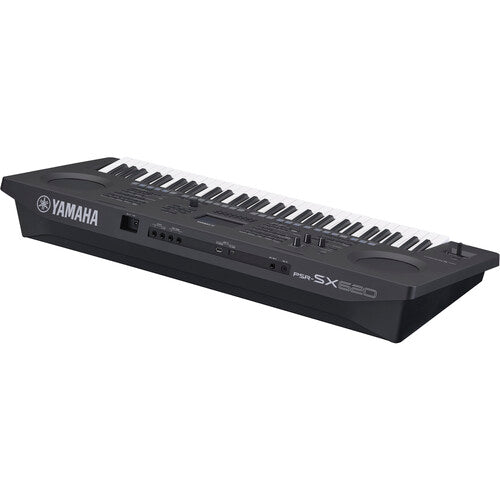

The PSR-SX620 supports performance and studio setups through dedicated microphone, auxiliary, headphone, and stereo line connections. USB-A supports external storage, while USB-C provides host connectivity and MIDI communication with compatible computers. A built-in 2 x 15W amplification system works with Yamaha's redesigned internal speaker enclosure and Internal BassPort, while Expansion Packs provide an additional path for adding compatible Voices and Styles.

Key Features

• 61-Key Performance Keyboard: Full-size synth-action keys provide five selectable touch-sensitivity levels for responsive playing.
• Extensive Sound Library: More than 1,000 preset sounds combine with 128-note maximum polyphony and Super Articulation Voices.
• 450 Accompaniment Styles: Built-in Styles provide rhythm, bass, chord, and accompaniment parts for solo performance.

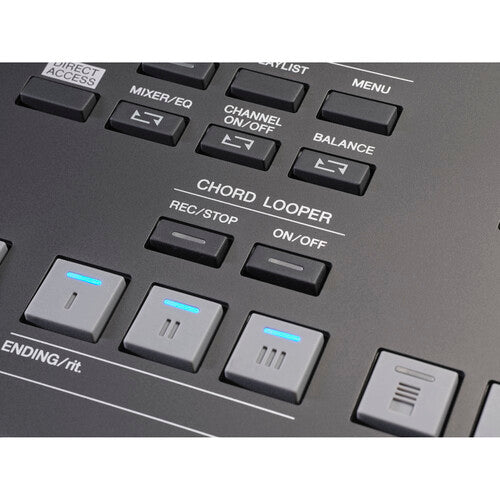

• Chord Looper and Smart Chord: Capture repeating chord progressions or generate accompaniment chords from simplified input.

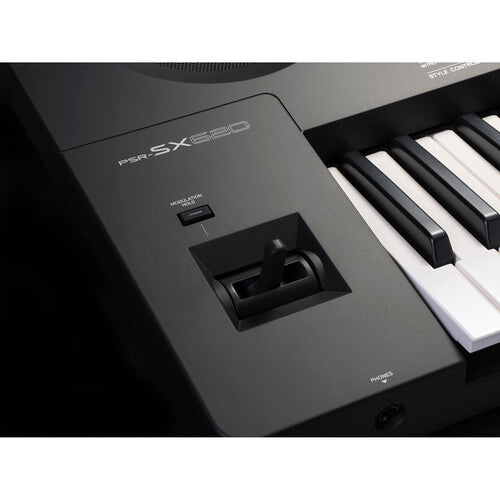

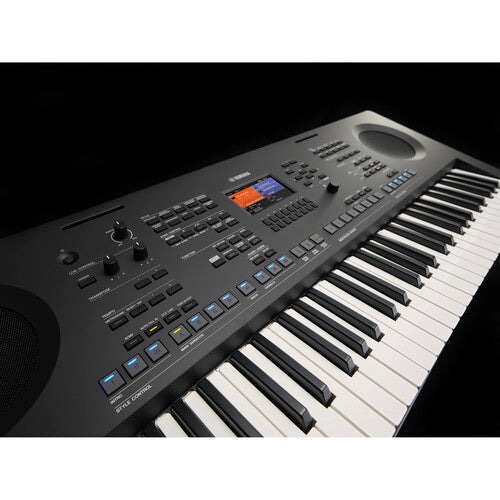

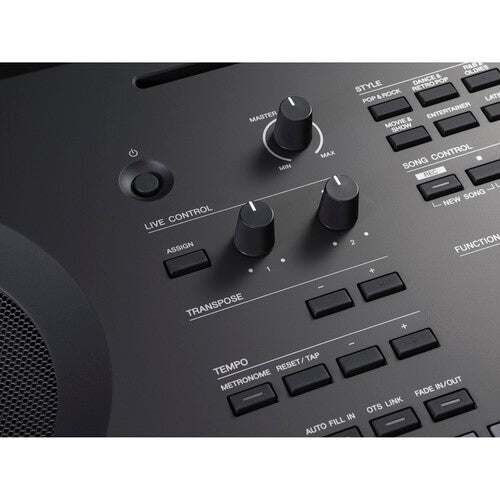

• Hands-On Performance Controls: A joystick and two assignable Live Control knobs provide real-time pitch, modulation, effects, and sound adjustment.
• Creative Multi-Pads: Trigger rhythmic phrases, melodic patterns, loops, and user-assigned WAV audio during performances.
• Bluetooth Audio: Stream music wirelessly from compatible devices for practice, accompaniment, or playback.
• Integrated Sound and Connectivity: Dual 15W amplification, an Internal BassPort speaker design, microphone input, stereo outputs, and USB connectivity support home and stage use.

Technical Specifications

• Product Type: Arranger keyboard
• Keyboard: 61 full-size synth-action keys
• Touch Sensitivity: 5 levels
• Aftertouch: Not supported
• Expression Control: Pitch and modulation joystick
• Live Controls: 2 assignable control knobs

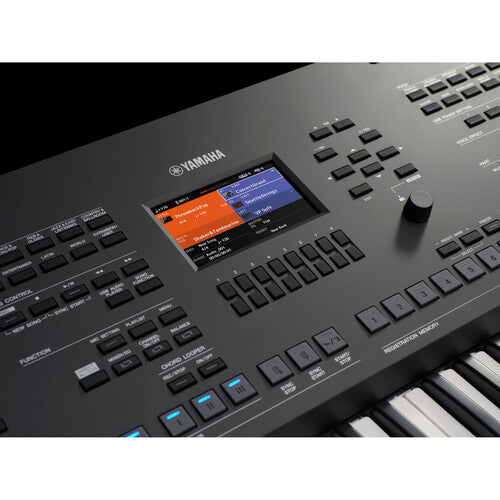

• Display: Color LCD
• Preset Sounds: More than 1,000
• Super Articulation Voices: Supported
• Demo Songs: 3
• Maximum Polyphony: 128 voices
• Multitimbrality: 3 parts
• Internal Memory: 20 MB
• Built-In Effects: Chorus, compressor, delay, distortion, EQ, reverb, tremolo
• Performance Functions: Arpeggiator, octave shift, split/layer, temperament adjustment, transpose, tuning adjustment
• Preset Styles: 450
• Accompaniment Functions: One Touch, single-finger, multi-finger, auto chord
• Chord Looper: Up to 8 chord sequences per bank
• Smart Chord: Supported
• Multi-Pads: MIDI phrases and Audio Link WAV playback
• Practice Functions: Metronome, auto power off
• MIDI Standards: GM, GM2, GS, XGlite, XG1
• MIDI Recorder: 16 tracks
• Audio Recording Format: WAV, 44.1 kHz, 16-bit
• Memory Card Slot: None
• Bluetooth: Bluetooth audio streaming
• Headphone Output: 1 x 1/4" TRS
• Microphone Input: 1 x 1/4"
• Auxiliary Input: 1 x 1/8" (3.5 mm) TRS
• Line Outputs: 2 x 1/4"
• Pedal Connections: 2 x 1/4" assignable/expression
• USB to Device: 1 x USB-A for external storage
• USB to Host: 1 x USB-C with MIDI support
• Dedicated MIDI I/O: None
• Computer Compatibility: Windows and macOS
• Built-In Speakers: Yes
• Amplification: 15W x 2

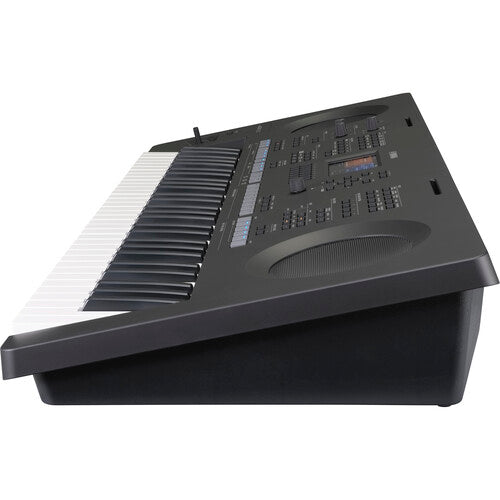

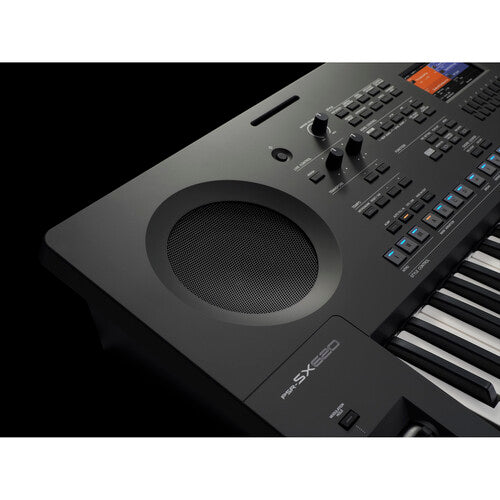

• Speaker Design: Internal BassPort with enlarged internal sound chamber and front-facing bass reflex design
• Expansion Support: Voice and Style Expansion Packs
• AC Input: 100 to 240 VAC, 50/60 Hz
• Power Adapter: Yamaha PA-300C
• Power Consumption: 18W
• Color: Black
• Dimensions: 39.1 x 15.9 x 5.6 inches
• Weight: 17.9 lb
• Package Dimensions: 41.5 x 19.8 x 8.5 inches
• Package Weight: 28.5 lb

What's In the Box

• Yamaha PSR-SX620 Arranger Workstation
• Music Rest
• PA-300C AC Power Adapter
