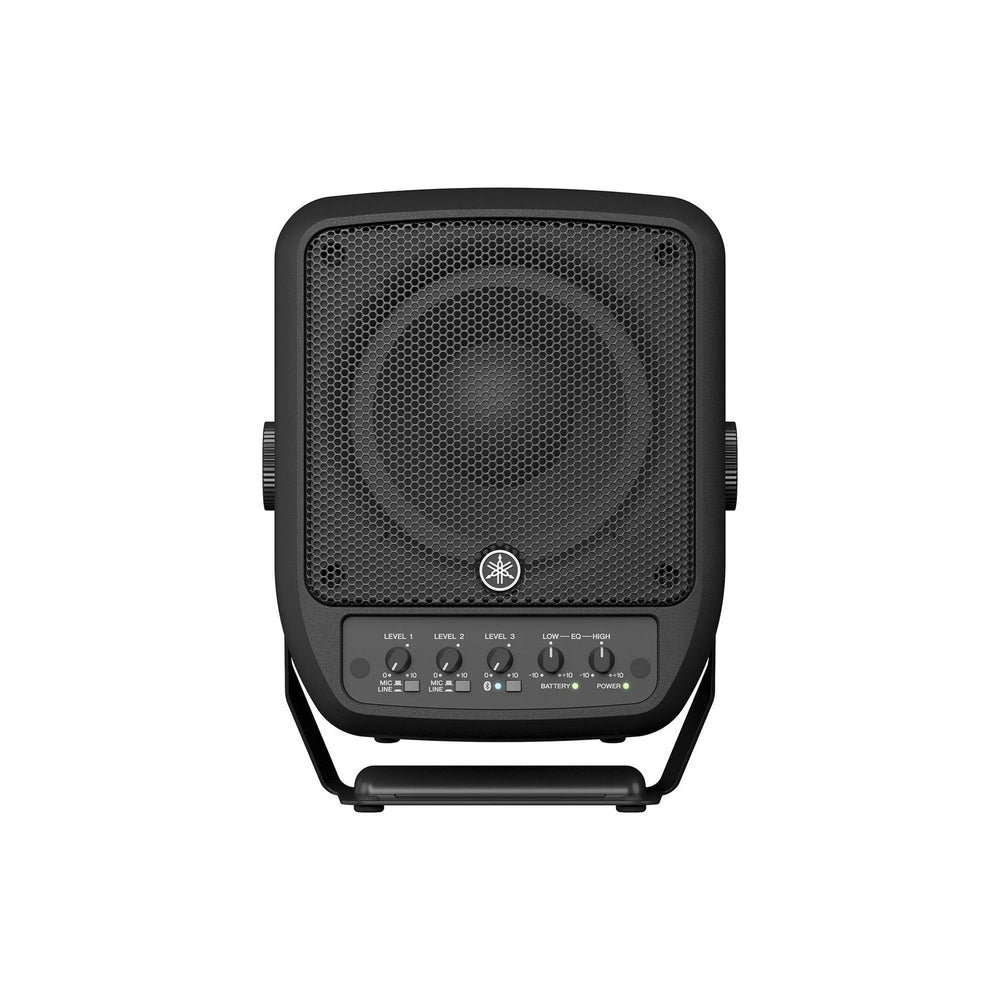

Yamaha STAGEPAS 100BTR 3-Channel 100W Battery Powered Portable Active PA System

The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.

Compact design. Big sound.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

Start the show in seconds
With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

“A PA in the palm of your hand”
With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage, you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.

6 Hours of non-stop performance
The STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments where there is no power source available.

Multipoint Bluetooth connectivity
The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.

The right direction
Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.

Mounting possibilities
The handle of the STAGEPAS 100 also features a 3/8” diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.

Whenever. Wherever.
The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.

Key Features

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with mix-out
• Carrying handle doubles as an adjustable stand
• Compatible with audio accompaniment over Bluetooth
• Optional carrying bag (BAG-STP100) available for convenient transport
• Internal lithium-ion battery

Technical Specifications

STAGEPAS 100BTR
Outline
Type
2-way Bi-amp Powered Speaker with mixer
I/O
Inputs
INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
Outputs
OUTPUT: XLR3-32 (INPUT 1-3 mix)
Bluetooth
Ver.5.0, A2DP (SBC, AAC), Class 1
Mixing capability
Mixing channels
3
Input channel functions
Hi-Z: CH2
Output channel functions
2 Band EQ
General specifications
Speaker type
Coaxcial speaker with compression driver
Frequency range (-10dB)
70 Hz - 20 kHz
Coverage area
H90 x V90 Degree
Crossover
1.8 kHz (FIR-X)
Maximum output level (1m; on axis)
120 dB SPL *1
Components
LF
6.5” Cone, 1.7” voice coil
HF
1” throat compression driver, 1.4” voice coil
Amplifier class
Class-D
Power rating
Dynamic
100 W (LF: 93 W, HF: 7 W)
Cooling
Natural convection (no fan)
Power consumption
10 W (Idle), 30 W (1/8 power)
Power requirements
100-240 V 50/60 Hz
Battery
Type
Rechargeable Lithium-ion battery pack
Capacity
60 Wh
Operating Time
Maximum 6 hours, 1/16 power continuous 5 hours
Charging Time
Approx. 2.5 hours
Cabinet material
Plastic (PP)
Handle
Bottom x1 (Rotatable)
Flying and mounting hardware
1 x 3/8”, depth 12 mm (center of handle)
Dimensions (W x H x D)
239 x 310 x 215 mm (9.5” x 12.3” x 8.5”), with handle
Weight
5.5 kg (12.1 lbs), without AC adaptor
Accessories
Power cord x 1, AC adaptor (PA-500) x 1
Options
Carrying bag: BAG-STP100
