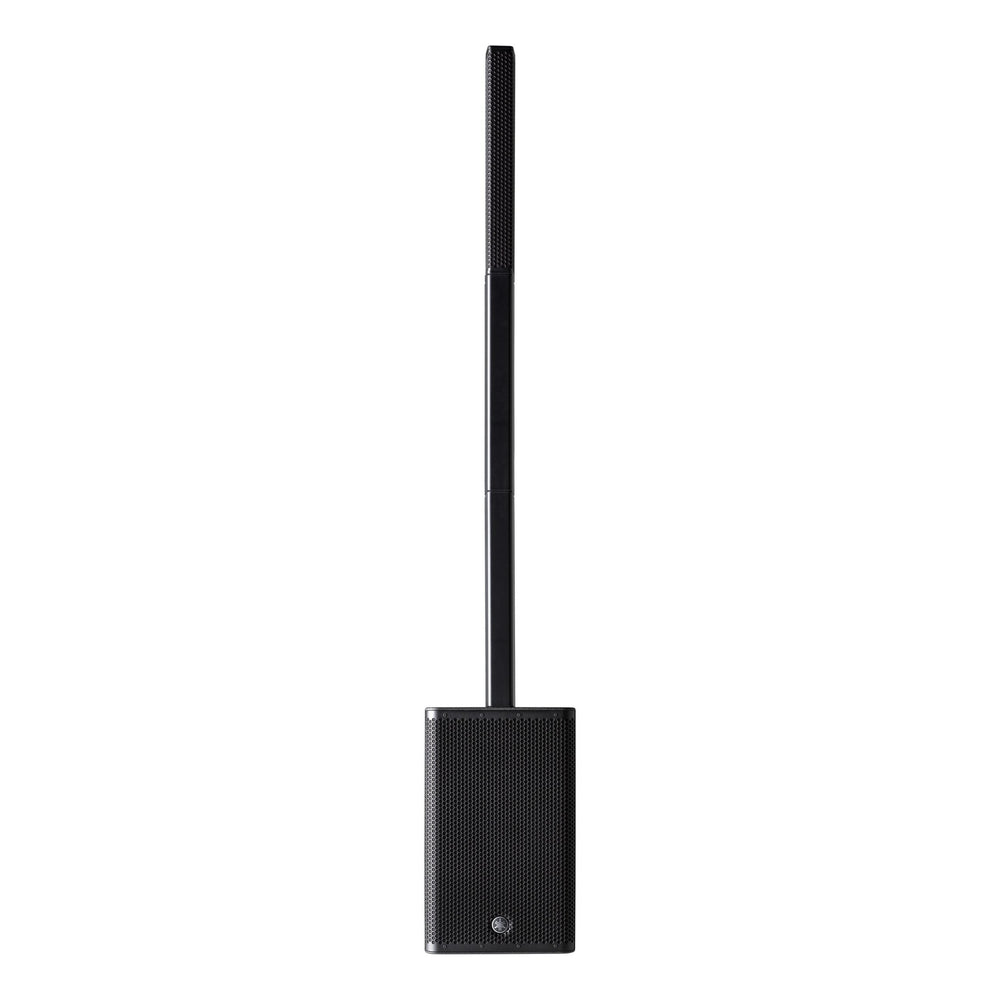

Yamaha STAGEPAS 1K MKII 1100W Portable PA System

What is it that makes one portable PA system stand out amongst the rest? Sound quality and output power? Flexible yet simple operation? Portability? Definitely all of the above and MORE.

With the new STAGEPAS 1K mkII our primary focus was to design a complete sound system that delivers professional quality sound despite a very simple setup and operation process that allows users to focus on what matters most- their performance.

Leveraging our extensive experience and accrued knowledge as a musical instrument manufacturer and audio technology pioneer, the STAGEPAS series has made it possible for users to create their own high-quality, high-output sonic environment that combines a lightweight, portable cabinet design with a comprehensive digital mixer that can be set up virtually anywhere in a matter of minutes.

With a practical yet stylish design, improved output components, and an onboard digital mixer that is simpler than ever to operate, the STAGEPAS 1K mkII raises the bar for portable sound reinforcement, offering a new level of sound quality and reliability that will help you focus on, and even inspire your best performances.

J-Curve Slim Line Array
The high-frequency speaker array is comprised of 10 small-diameter 1.5” speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 Degrees across a span of 170 Degrees. With such a long, 10-driver array design the STAGEPAS 1K mkII can deliver clear, high-quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Class-leading 12-inch “compact” subwoofer
Despite housing a 12-inch speaker unit that is the largest in its class, the STAGEPAS 1K mkII boasts the smallest cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha’s own Twisted Flare Port technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

1100W amplifier
Also, at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the STAGEPAS 1K mkII maintains the same accurate, superior-quality sound even at high output.

Digital mixer with versatile input
With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8” mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.

Professional control with a single knob
STAGEPAS 1K mkII comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set via a single knob, and have simplified many of the tough tasks like EQ and compression to get you great sound fast.

STAGEPAS Controller
With an all-new interface, STAGEPAS Controller is a dedicated remote-control application for the STAGEPAS 1K mkII that allows users to adjust volume and 1-knob EQ or 4-band PEQ via Bluetooth during rehearsal or performance. You can also save the adjusted settings for certain songs or applications in order to shorten your setup process in the future and maintain consistency from one performance to the next, and even control the volume of multiple STAGEPAS 1K mkII units from within the application. Additionally, STAGEPAS 1K mkII features a “Priority Ducker” can be turned on/off directly from the device.

Simple setup
Simply affix the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear required beyond the main unit. All you need is in the package.

Expandable STAGEPAS systems
Linking two STAGEPAS 1K mkII or a STAGEPAS 1K mkII with a DXL1K provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playback are supported, and when set to mono, the inputs of the two linked units (*) can still be used.

Fitted cover included
The STAGEPAS 1K mkII comes with its own cover which, in addition to protecting the unit, has pouches for both spacers and speaker array as well as additional storage for accessories to further streamline system setup and teardown.

Optional dolly (DL-SP1K) Not Included
An optional dedicated dolly allows for more convenient transportation - particularly useful for performers transporting additional gear and instruments. Featuring a simple, sturdy mechanism that locks down the speaker cover the lightweight dolly enables smooth, reliable transportation.

Technical Specifications

System Type
Powered subwoofer with a line array speaker
Frequency Response (-10 dB)
37 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical)
170 Degrees x 30 Degrees
Crossover Frequency
240 Hz
Maximum Output Level (Measured peak, IEC noise@1m)
125 dB SPL
Power Requirements
Depending on area of purchase
100V 50Hz/60Hz, 110V-120V 60Hz, 220-240V 50/60Hz
Power Consumption
25 W (Idle), 91 W (1/8 power)
Dimensions (W x H x D)
System (maximum) 334 x 2,000 x 418 mm / 13.2” x 78.7” x 16.5”
Weight
23.0 kg (50.7 lbs)
Mixer section
The number of Mixing Channels
5
Analog Inputs
Mono mic/line x 3 + mono line x 2, stereo line x1
LINK IN (MONO)
Bluetooth Audio Inputs
A2DP (SBC, AAC)
Content Protection
Method SCMS-T
Bluetooth Version
Ver 5.0
Transmission Frequencies
2,402-2,480MHz
Wireless Output
Class 1
Maximum Wireless Output Power (EIRP)
15dBm (32mW)
Channel Functions
Hi-Z switch: CH2/3
EQ / Effects
1-knob EQ: ALL channels
MODE (SPEECH/MUSIC/CLUB)
4 types of reverb (HALL/PLATE/ROOM/ECHO) : CH1-3
Outputs
LINK OUT (MONO/R)
MONITOR OUT (MONO)
External Controls Reverb foot switch
STAGEPAS Controller (iOS/Android app)
Amplifier section
Type
Class-D
Rated Output
1100W
Speaker section
Enclosure
Line array speaker: Enclosed
Subwoofer: Bass-reflex type
Speaker Unit
Line array speaker: 1.5” (3.8 cm) Cone x10
Subwoofer: 12” (30 cm) Cone
Dimensions (W x H x D)
Line array speaker: 67 x 582 x 86 mm / 2.6” x 22.9” x 3.4”
Spacer (each): 67 x 555 x 86 mm / 2.6” x 21.9” x 3.4”
Subwoofer: 334 x 550 x 418 mm / 13.2” x 21.7” x 16.5”
Weight
Line array speaker: 1.8 kg (4.0 lbs)
Spacer (each): 0.6 kg (1.3 lbs)
Subwoofer: 20.0 kg (44.1 lbs)
Accessories
Included in the package
Power cord, Cover, Owner's Manual
Optional accessories
DL-SP1K (dedicated dolly) / FC5 (foot switch for reverb ON/OFF)
