Yealink CM50 Dante Beamforming Ceiling Microphone

Yealink CM50 Dante Beamforming Ceiling Microphone

The Yealink CM50 Dante Beamforming Ceiling Microphone is a premium ceiling array microphone for professional meeting spaces. It uses 127 MEMS microphone units, beamforming pickup, Dante networking, AI sound optimization, and a 16.4 ft pickup radius to capture clear speech across medium to large conference rooms.

Designed for boardrooms, training spaces, hybrid meeting rooms, and Pro AV conferencing systems, the CM50 helps integrators buy a Dante ceiling microphone with clean installation and intelligent voice capture. Eight customizable pickup zones, prioritized pickup, and acoustic fence processing focus on desired speech while reducing unwanted room noise.

PoE+ power simplifies cabling with one network connection for power and data, while Dante support integrates with scalable audio systems. AI noise reduction, reverberation cancellation, dynamic feedback suppression, and sound source localization support voice lift, camera tracking, and Microsoft Teams room workflows.

Dante Beamforming Ceiling Microphone for Conference Rooms

• 127 MEMS Microphone Array: Dense wide-range microphone array captures speech with precise coverage across professional meeting environments.
• 16.4 ft Pickup Radius: Wide ceiling coverage supports medium to large conference rooms while keeping tables clear of desktop microphones.
• Eight Custom Pickup Zones: Configurable beamforming zones help target active meeting areas and reduce pickup from unwanted directions.
• Acoustic Fence and Priority Pickup: Intelligent processing focuses on desired speakers while suppressing peripheral conversations and background noise.
• AI Sound Optimization: Noise reduction, reverberation cancellation, and AI-driven feedback suppression improve clarity in challenging acoustic spaces.
• Dante Audio Networking: Dante protocol support enables scalable integration with compatible professional AV audio systems.
• PoE+ Single-Cable Deployment: IEEE 802.3at Class 4 power simplifies installation by carrying power and data over one network cable.
• Flexible Ceiling Installation: Supports in-ceiling, on-ceiling, and suspended ceiling deployment methods for different room designs.

Technical Specifications

• Brand: Yealink
• Model: CM50
• Product Type: Dante beamforming ceiling microphone
• Microphone Array: 127 MEMS microphone units
• Acoustic Technology: Beamforming
• Pickup Range: 16.4 ft radius
• Custom Pickup Zones: 8
• Frequency Response: 120 Hz to 20 kHz
• Maximum SPL: 122 dB SPL
• Sensitivity: 0 dBV/Pa at 94 dB SPL, 1 kHz
• Signal-to-Noise Ratio: 86 dB
• Dynamic Range: 86 dB
• Audio Protocol: Dante
• Dante Output Channels: 8+2
• Dante Input Channels: 2
• Sampling Rate: 48 kHz
• Bit Depth: 24-bit

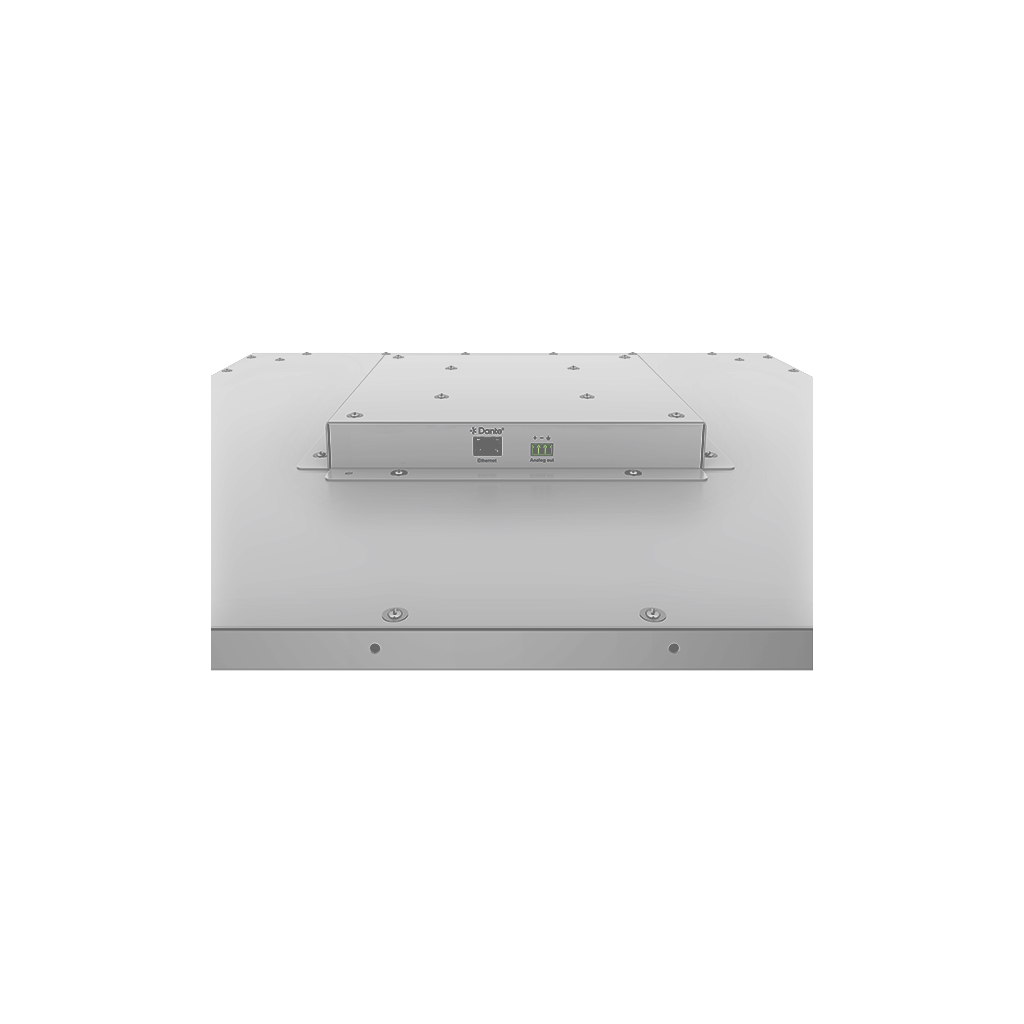

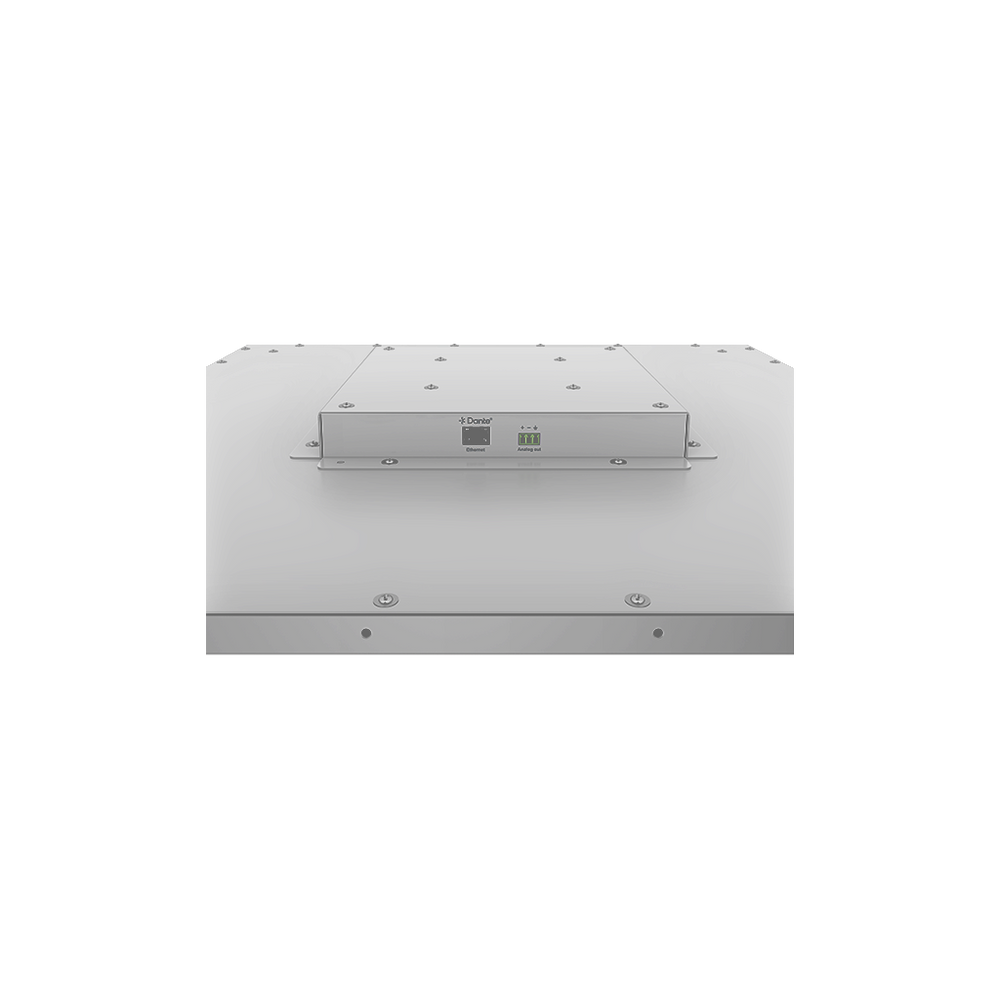

• Physical Interfaces: 1 RJ-45 interface and 1 3-pin Phoenix connector for analog output
• Power Requirement: IEEE PoE+ 802.3at Class 4
• Typical Power Consumption: 17 W
• Rated Power Consumption: 19.3 W
• AI Processing: Noise reduction, reverberation cancellation, and dynamic feedback suppression
• Voice Control Features: Acoustic fence, prioritized pickup, and sound source localization
• Software Support: Yealink Room Designer
• Microsoft Teams Integration: Microsoft Teams certified
• Product Color: Apple White
• Product Material: SGCC, SPCC, and AL5052
• Certification: Plenum Rated UL 2043
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 0% to 93% RH
• Dimensions: 23.31" x 23.31" x 2.20"
• Net Weight: 11.35 lbs, excluding accessories
