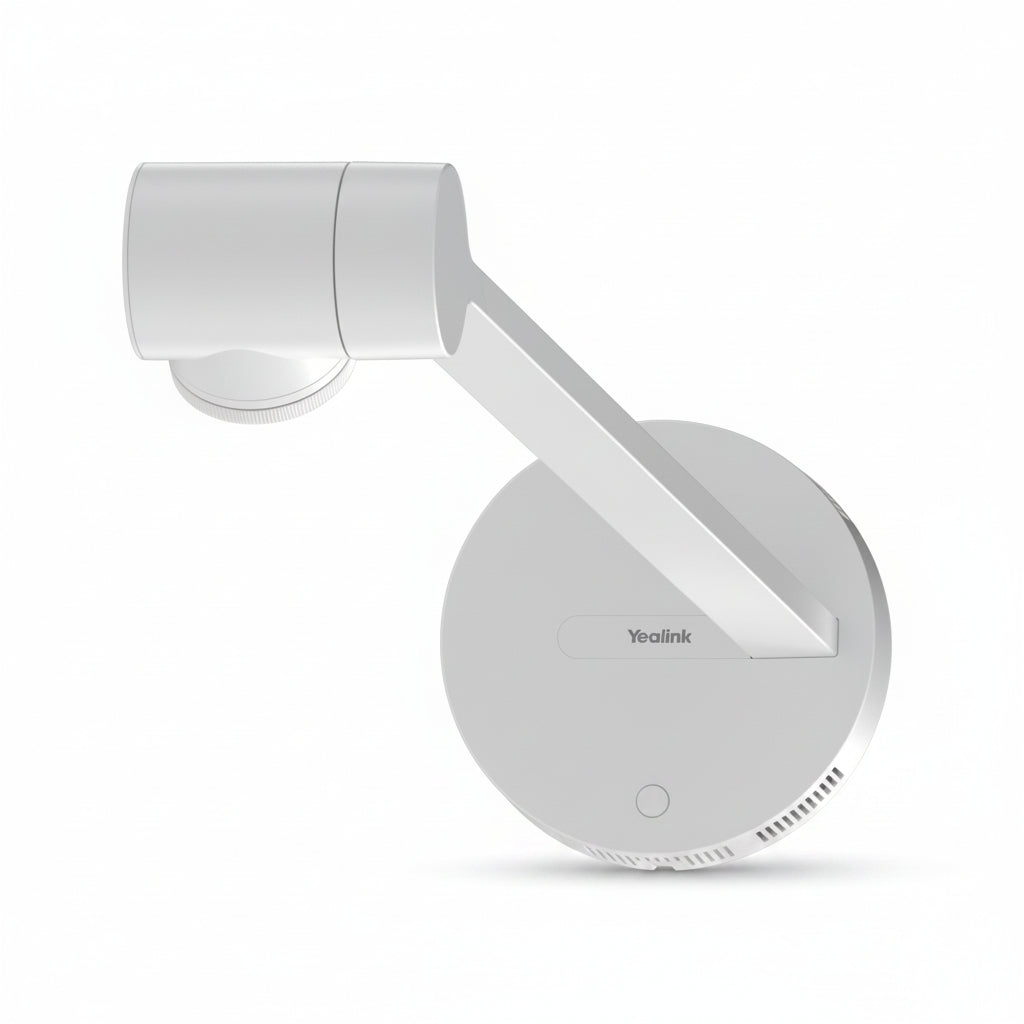

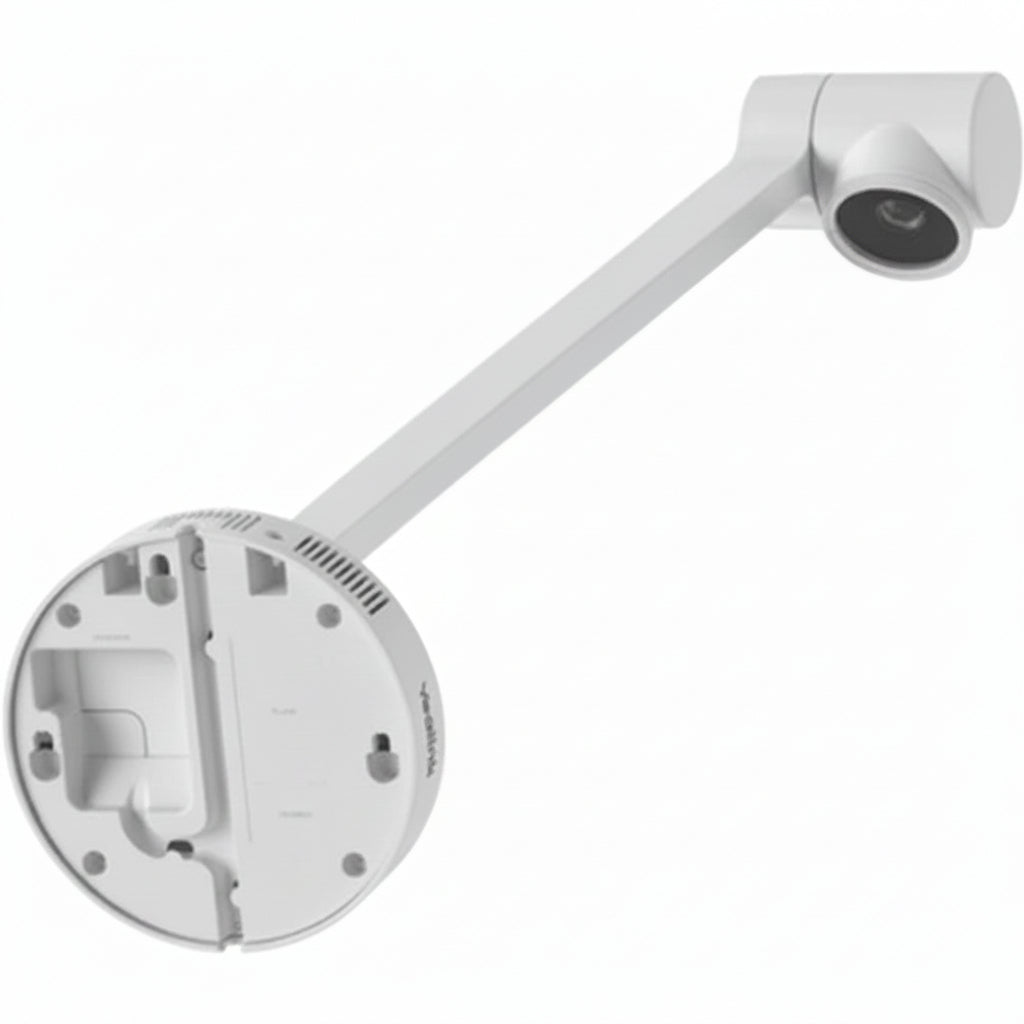

Yealink MSketch 1303289 AI Whiteboard Content Camera

Yealink MSketch 1303289 AI Whiteboard Content Camera

The Yealink MSketch 1303289 AI Whiteboard Content Camera captures and processes physical whiteboard content for compatible Yealink meeting room systems. An 8 MP Sony sensor, 110-degree horizontal field of view, AI image correction, intelligent cropping, and single-network-cable connectivity help remote participants clearly view handwritten collaboration in real time.

Designed for hybrid conference rooms, MSketch automatically processes whiteboard images and can improve unclear handwriting before sharing it with remote participants. Intelligent content detection identifies useful writing areas and limits the shared view to relevant whiteboard material. Gesture recognition and the included ShareButton provide convenient ways to begin content sharing during supported meetings.

MSketch connects to its host through a single CAT5e network cable rather than separate USB data and DC power connections. It supports Yealink MCore Series Windows solutions and compatible Android systems, including MeetingBar, MeetingBoard, and MeetingEye Series products. Integrated Bluetooth and dual-band Wi-Fi provide additional wireless functionality for the conferencing workflow.

Key Features

• 8 MP Sony Sensor: Captures detailed whiteboard content for clear viewing by remote meeting participants.
• Wide Field of View: Provides a 110-degree horizontal and 75-degree vertical viewing angle for whiteboard coverage.
• AI Image Processing: Automatically corrects captured whiteboard images and improves unclear handwriting.
• Intelligent Cropping: Identifies effective writing areas so relevant content can be emphasized during sharing.
• Gesture Recognition: Supports gesture-based sharing for a more efficient collaboration workflow.
• Single-Cable Deployment: Connects to a compatible host using one CAT5e network cable for data and PoE power.
• ShareButton Included: Supports Bluetooth pairing for one-button whiteboard content sharing.
• Cross-Platform Compatibility: Supports compatible Yealink Windows and Android meeting room solutions.

Technical Specifications

• Model: MSketch
• Part Number: 1303289
• Product Type: Whiteboard Content Camera
• Image Sensor: 8 MP Sony sensor
• Horizontal Field of View: 110 degrees
• Vertical Field of View: 75 degrees
• AI Features: Gesture recognition and intelligent cropping
• Image Processing: Automatic whiteboard image correction and handwriting enhancement
• Host Connection: Single CAT5e network cable
• Network Port: 1
• Bluetooth Button Port: 1
• Reset Button: 1
• Power Supply: PoE, 48 V 0.27 A
• Bluetooth: LE 1M and LE 2M
• Wi-Fi: 2.4 GHz and 5 GHz
• Bluetooth Module: S6621
• Wi-Fi Module: S6621
• MSketch Dimensions: 5.5 x 5.5 x 29.4"
• ShareButton Connection: BLE pairing
• ShareButton Dimensions: 2.8" diameter x 0.6"
• ShareButton Weight: 0.1 lb
• Windows Compatibility: Yealink MCore Series
• Android Compatibility: Yealink MeetingBar, MeetingBoard, and MeetingEye Series

What's In the Box

• Yealink MSketch
• ShareButton
