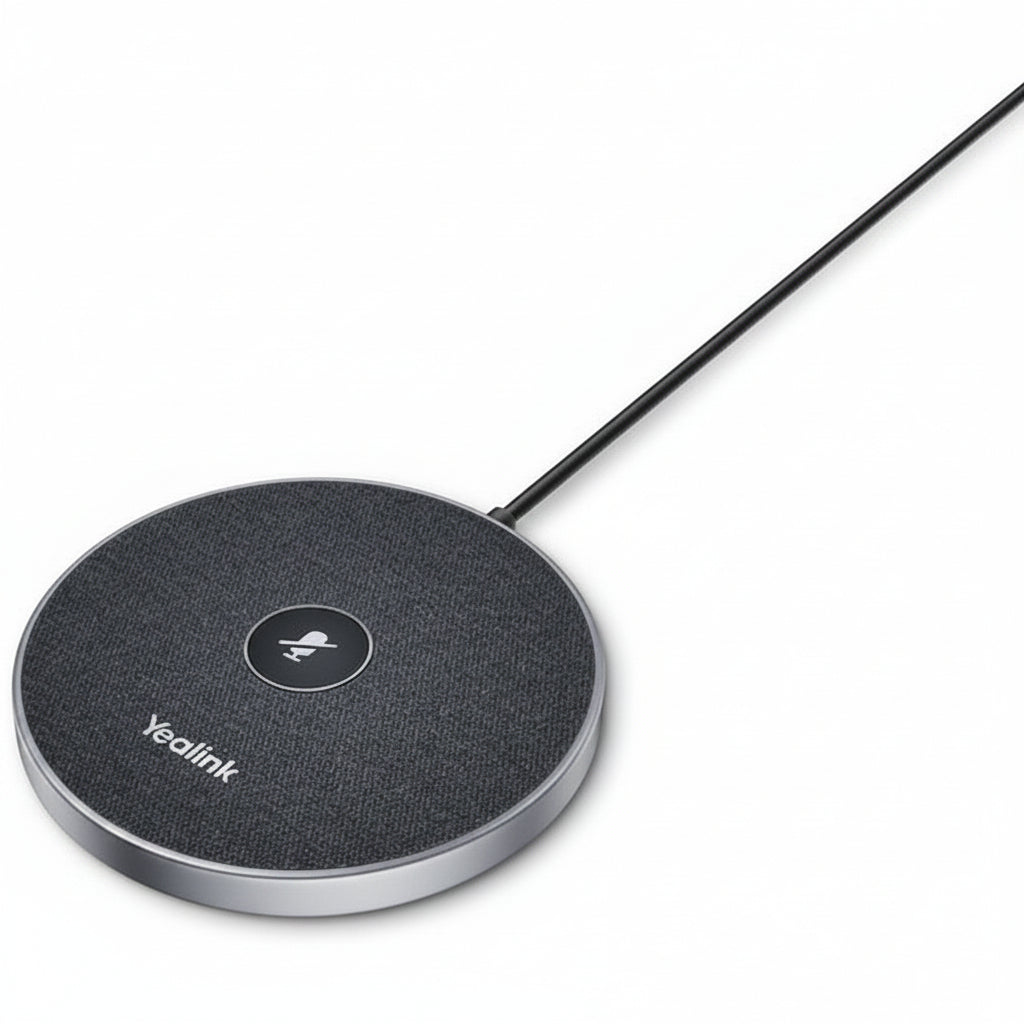

Yealink VCM35 Wired Video Conferencing Microphone Array

Yealink VCM35 Wired Video Conferencing Microphone Array

The Yealink VCM35 Wired Video Conferencing Microphone Array expands voice pickup for compatible Yealink room systems with a built-in three-microphone array. It provides 360-degree omnidirectional coverage across a 16.4-foot radius, supports full-duplex conversations, and incorporates acoustic echo cancellation and noise-reduction processing for conference room communication.

Designed for meeting spaces that need a wired conference room microphone with broad tabletop coverage, the VCM35 captures participants around the table without requiring precise microphone positioning. A touch-sensitive mute control gives users immediate access during calls, while the attached 16.4-foot network cable supports flexible placement. Star-cascaded deployment also helps integrators expand microphone coverage across larger compatible room systems.

The VCM35 combines Yealink Optima HD Audio with Noise Proof Technology and Voice Activity Detection, or VAD, which detects active speech for audio processing. Its 100 Hz to 8 kHz frequency response is optimized for spoken communication. Compatibility varies by Yealink conferencing host and firmware, making current system compatibility an important consideration when designing multi-microphone installations.

Key Features

• Three-Microphone Array: Captures voices around conference tables through a built-in omnidirectional microphone arrangement.
• 360-Degree Pickup: Provides voice coverage within a verified 16.4-foot radius for compatible meeting room deployments.
• Full-Duplex Audio: Supports natural two-way conversation when participants speak at the same time.
• Acoustic Echo Cancellation: Helps control acoustic echo during amplified conferencing sessions.
• Noise Proof Technology: Reduces unwanted environmental sound to improve speech intelligibility during meetings.
• Voice Activity Detection: Uses VAD processing to recognize active speech within the conferencing audio system.
• Touch Mute Control: Allows participants to mute the microphone directly from its center touchpad.
• Expandable Deployment: Supports star-cascaded configurations with compatible Yealink conferencing hardware.

Technical Specifications

• Model: VCM35
• Product Type: Wired Video Conferencing Microphone Array
• Microphone Array: 3 microphones
• Pickup Pattern: 360-degree omnidirectional
• Voice Pickup Radius: 16.4' (5 m)
• Frequency Response: 100 Hz to 8 kHz
• Audio Technology: Yealink Optima HD Audio
• Duplex: Full duplex
• Acoustic Processing: Yealink Acoustic Echo Canceling and Yealink Noise Proof Technology
• Voice Detection: VAD (Voice Activity Detection)
• Mute Control: Touchpad
• Deployment: Star-cascaded deployment supported
• Network Cable: 16.4' (5 m) CAT5e UTP RJ45 cable
• Dimensions: 3.9" diameter x 0.7" thick
• Weight: 0.4 lb
• Operating Temperature: 32 to 104 degrees F
• Operating Humidity: 10% to 90%
• Gift Box Dimensions: 5.8 x 5.3 x 1.8"
• Master Carton Quantity: 20 units
• Master Carton Dimensions: 18.3 x 11.1 x 6.5"
• Master Carton Net Weight: 10.8 lb
• Master Carton Gross Weight: 12.4 lb

What's In the Box

• Yealink VCM35 Video Conferencing Microphone Array
• RJ45 Connector for Ethernet Cable
• Double-Sided Tape
• Quick Start Guide
