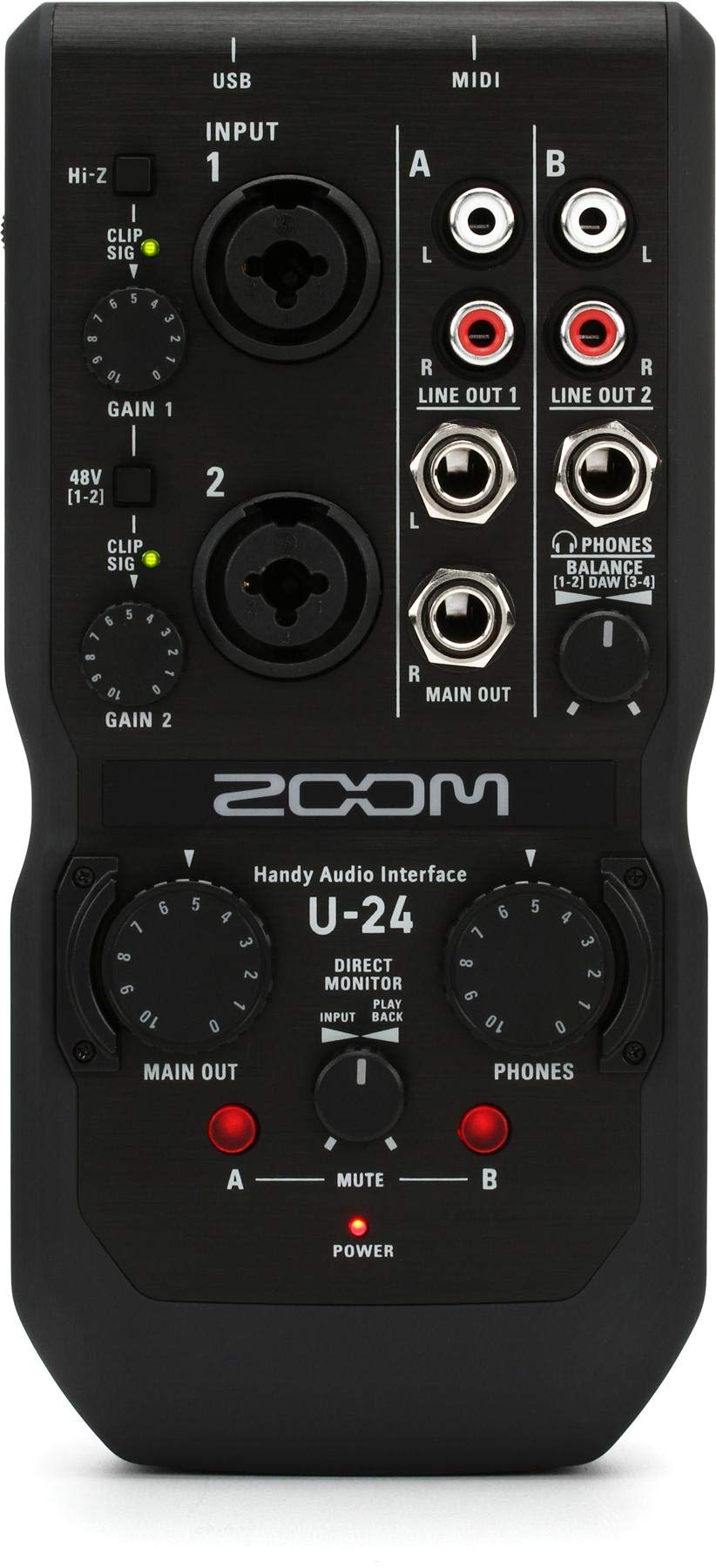

Zoom U-24 Compact 2 In 4 Out Handy Audio Interface
The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audioanywhere you go. Get incredible sound quality thanks to high-quality, low-noise preampsthe same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPhone/iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.
Key Features
- Multi-channel and stereo USB audio interface for PC/Mac/iPhone/iPad
- Connect to iPhone/iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
- Two mic/line inputs with high-performance mic preamps
- High quality recording and playback at resolutions up to 24-bit/96 kHz
- Approximately 4 hours of operation with 2 AA alkaline batteries
- Includes download code for Ableton Live 9 Lite
- Two-channel simultaneous inputs
- Hi-Z support (input 1)
- Zero-latency direct monitoring
- Two TRS phone jack outputs
- Dedicated RCA L/R and headphone outputs
- MIDI I/O
- Gain control knobs for each input
- +48V phantom power for inputs 1 and 2
- Accepts standard AA alkaline or NiMH rechargeable batteries
Technical Specifications
ANALOG IN: INPUT 1/2
Connector
TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
Input Gain
0 - 43 dB
Input Impedance
2.6 k ohm (MIC IN) 1.1 M ohm (when Hi-Z ON)
Maximum Input Level
+2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
Phantom Power
+48V
ANALOG OUT: MAIN OUT L/R
Connector
TRS phone jacks (unbalanced)
Maximum Output Level
+10 dBu (at 0 dBFS)
Output Impedance
330 ohm
ANALOG OUT: LINE OUT 1/2
Connector
RCA (coaxial)
Maximum Output Level
+8 dBu (at 0 dBFS)
Output Impedance
1k ohm
ANALOG OUT: PHONES
Connector
Standard stereo phone jack
30 mW x 2 (into 32 ohm load)
Maximum Output Level
+10 dBu (at 0 dBFS)
Output Impedance
33 ohm
Frequency Characteristics
At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
At 96 kHz: -3.5 dB: 20 Hz - 40 kHz
Input Conversion Noise
Measured EIN: -119.5 dB (IHF-A)
at 43 dB, 150 ohm input
Number of Audio Recording and Playback Channels
Recording: 2 channels
Playback: 4 channels
Sampling Frequencies
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit Depth
24-bit
Interface
USB 2.0
MIDI IN/OUT
5-pin DIN jack
Power Source
USB bus power (Type B)
Zoom AD-17 (Micro-B)
DC 5V power supply (Micro-B)
2 AA batteries (4 hours continuous operation with phantom power off)
Power Consumption
5W maximum
Dimensions
191.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
Weight (main unit only)
285 g
*0dBu=0.775Vrms
